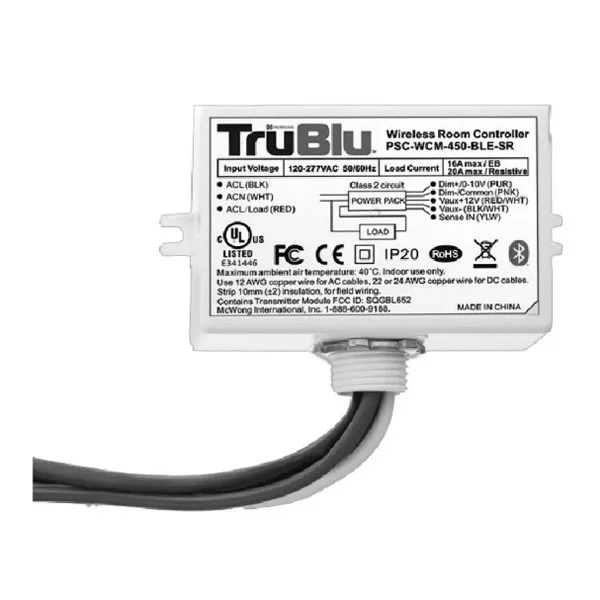

The Halco TruBlu™ Mesh Single Channel Controller with Integral Relay is a wireless room control solution built for modern Bluetooth mesh lighting networks. As part of Halco’s TruBlu controls lineup, it combines line-voltage switching and 0-10V dimming in one compact device for streamlined commercial lighting control.
Key Features and Benefits
- Bluetooth® NLC certified controller enables interoperable wireless control across qualified mesh systems.
- Integrated 20A relay supports both lighting and plug load switching from a single control point.
- Single-channel 0-10V dimming output delivers smooth continuous dimming with zoning and high-end trim capability.
- 12VDC auxiliary output powers compatible sensors and control devices, reducing extra power hardware needs.
- Plenum approved design and 1/2″ threaded mounting simplify installation in fixtures or electrical enclosures.
- Conforms to DLC NLC5 cybersecurity standards for secure connected lighting deployments.
- Certified to cUL Listed, FCC, CE, and DLC Standard requirements for dependable commercial use.
Specifications
- Voltage: 120-277V
- Dimming Type: 0-10V
- Relay Rating: 20A max (16A LED/CFL, 20A resistive)
- 0-10V Output: 100mA current sinking
- Input Consumption: 100mA
- Auxiliary Output: 12VDC, 200-300mA (input dependent)
- Sensor Input: 10-14VDC, 30mA (Active High)
- Operating Temperature: -40°F to 104°F
- Wireless Range: up to 100′
- Mounting: 1/2″ threaded male connector with mounting tabs

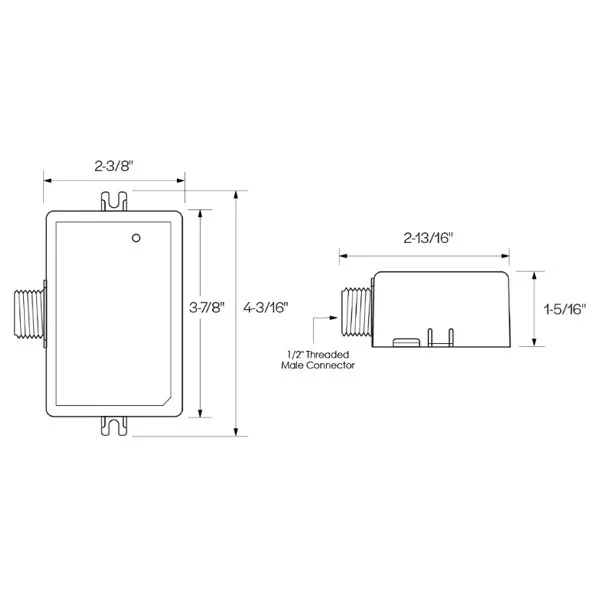

- Dimensions: 2-3/8″ x 4-3/16″ x 2-13/16″
Common Uses
Ideal for offices, classrooms, retail spaces, and other commercial interiors requiring wireless room-based lighting control. Commonly used in plenum and fixture-integrated applications where dimming, relay switching, and sensor-ready control are needed.
