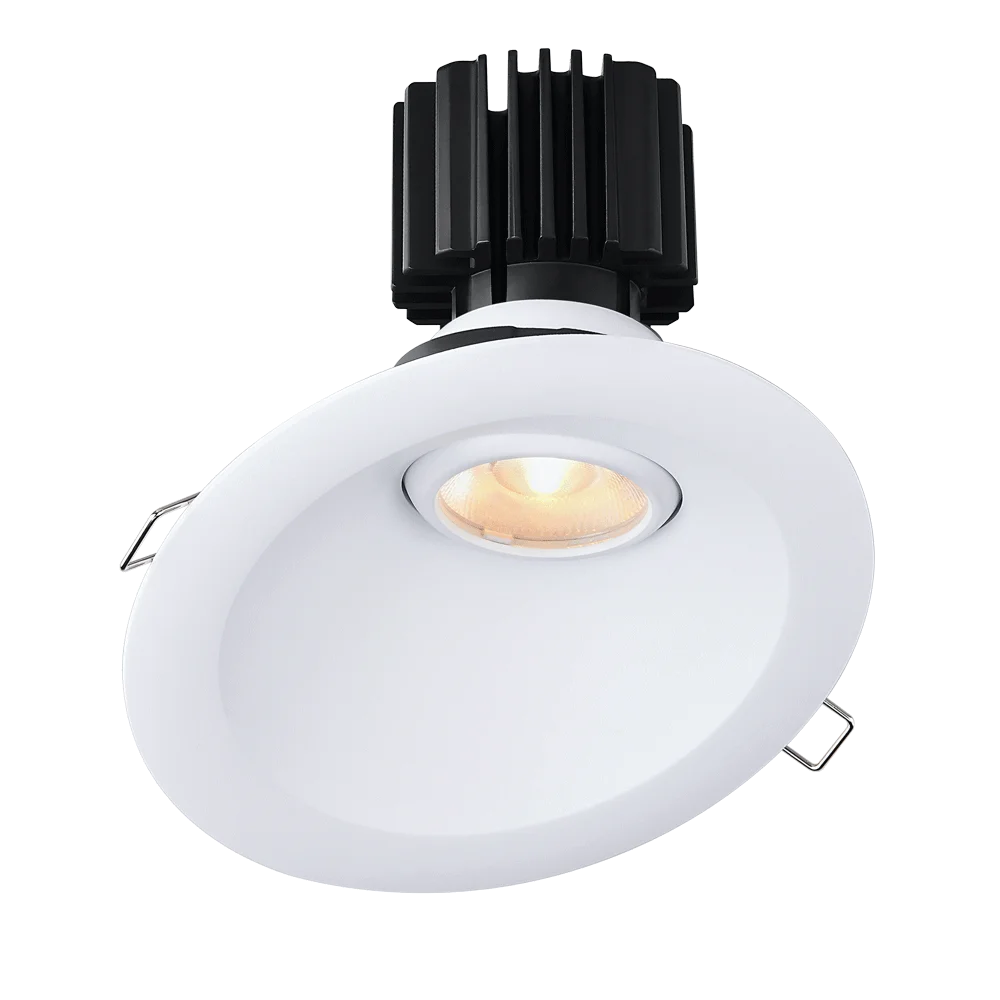

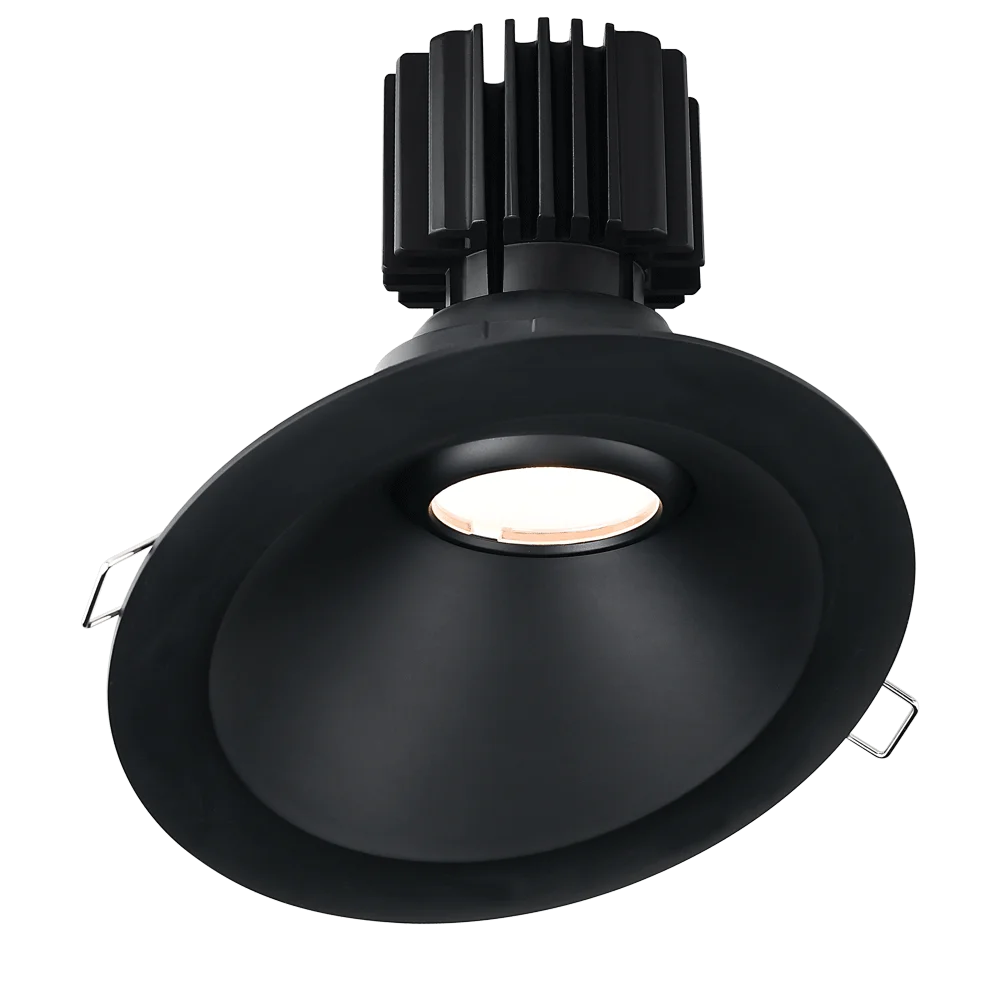

The Lotus LED Lights Tangra L3G-RSW is a 4″ gimbal round sloped wide trim fixture engineered for premium directional lighting in demanding residential and commercial spaces. Built with a solid cast aluminum body and advanced optics, this modular series supports multiple beam, trim, and LED configurations for precise lighting control. Its high color quality and flexible driver options make it a standout solution in the Tangra lineup.
Key Features and Benefits
- Adjustable aiming with 20° tilt and full 360° rotation for accent lighting, sloped ceilings, and wall washing
- Selectable 11W/15W operation (with compatible Tangra driver) to balance output and energy use
- High-performance light quality with up to 1600 lumens and ultra-high CRI LED options
- Modular platform with multiple trims, optics, beam spreads, and CCT/DTW packages for project flexibility
- Certified for demanding installs: cETLus, FCC, Type IC, Air Tight, Open Plenum, and Wet Location IP54
- Long-term reliability backed by 70% lumen maintenance at 50,000 hours and Lotus lifetime warranty coverage (+5 years after discontinuation)
Specifications
- Model/Series: L3G-RSW, Tangra 4″ Gimbal Round Sloped Wide Trim
- Part number configuration: 4C90 LED package (4CCT + DTW 3500K to 2700K, CRI90)
- Lumen output: up to 1600 lm (at 3000K CRI95)
- Beam options: 20°, 24°, 36°, 50°, 60° (20° reflector-only option)
- Optics options: Reflector clear glass (RC), semi-frosted (RS), frosted (RF), lens white (LW), lens black (LB)
- Input to fixture: 20-40V DC, max 350 mA constant current
- Driver options: 120V Triac dimmable or 120-347V 0-10V dimmable, 11W/15W selectable
- Minimum dimming: 3% reverse phase cut / 4% forward phase cut
- Ceiling cutout: 4 1/2″; required driver clearance above ceiling: 4″
- Operating temperature: -40°F (-40°C) to +113°F (+45°C)
- J-box wire capacity: max 5 x 12 AWG or 8 x 14 AWG with FT6/CMP cable
Common Uses
Ideal for sloped ceilings, feature walls, and directional accent lighting in homes, hospitality spaces, retail environments, corridors, and covered outdoor or wet-location applications requiring high-quality adjustable illumination.
