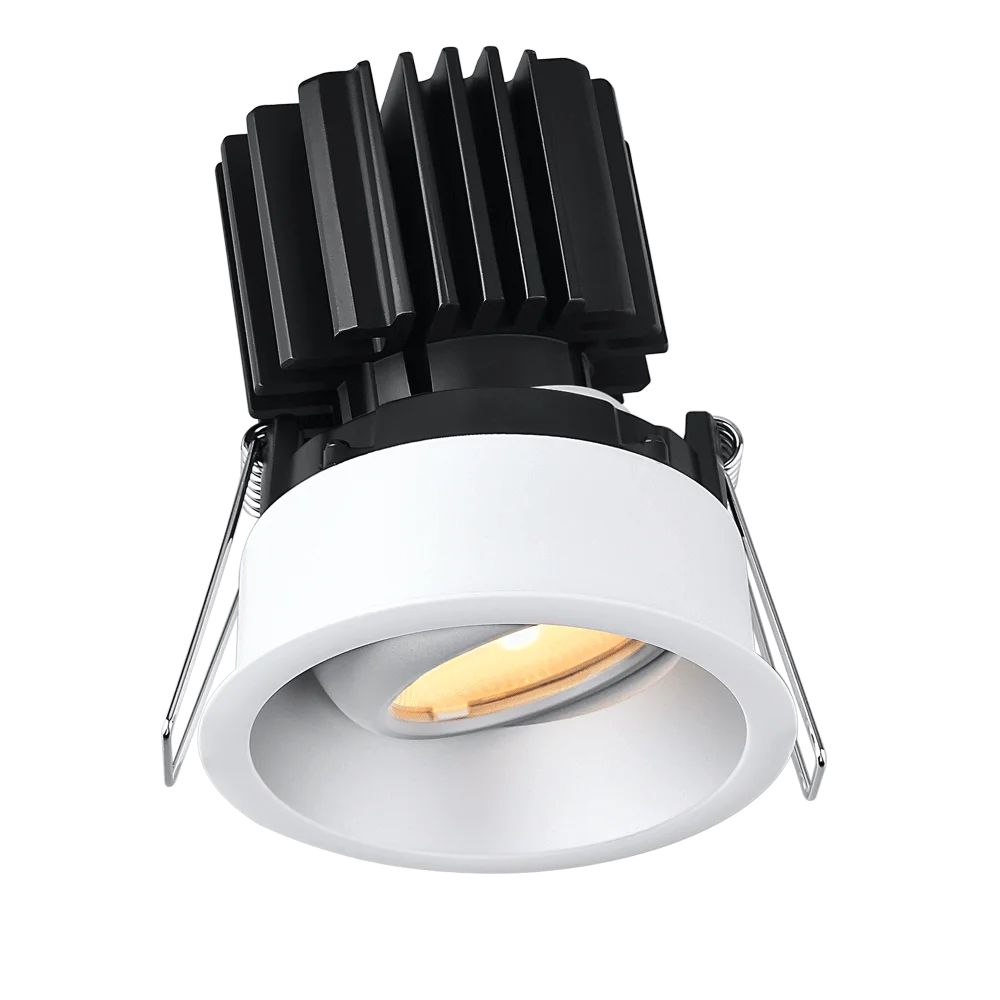

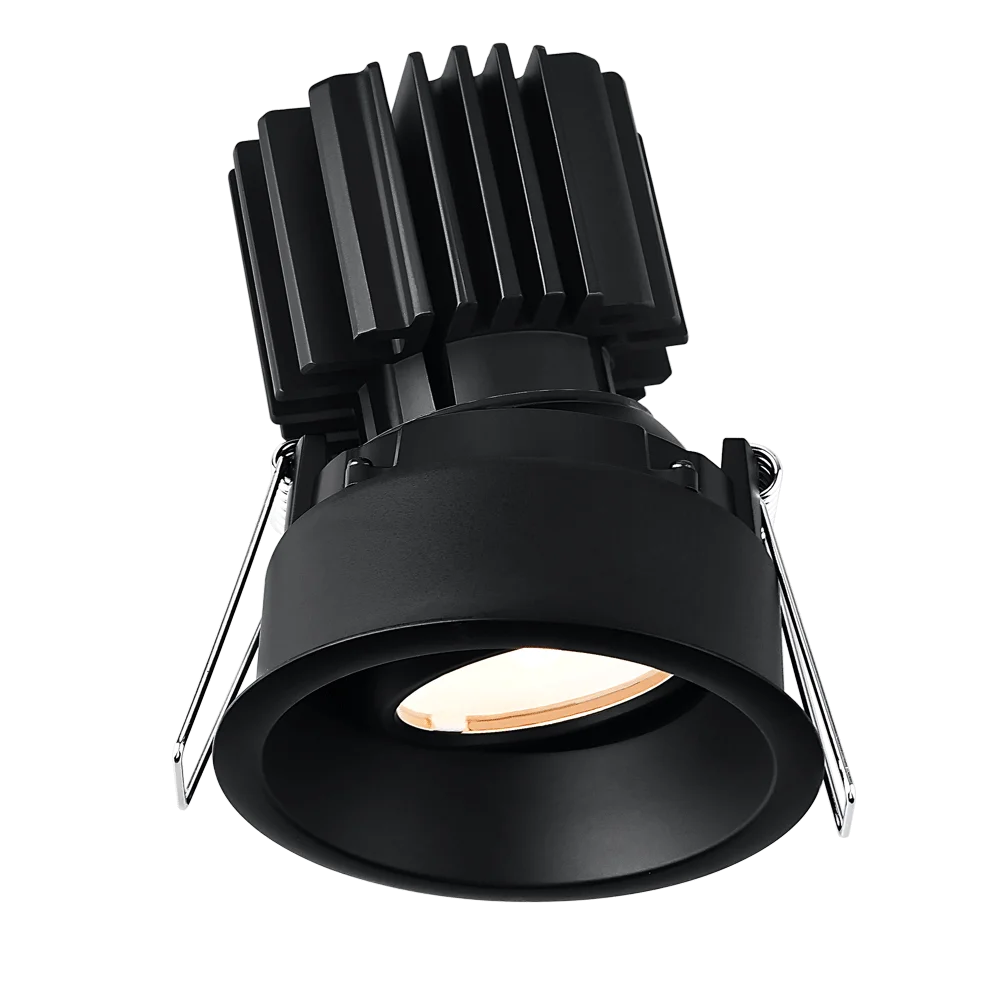

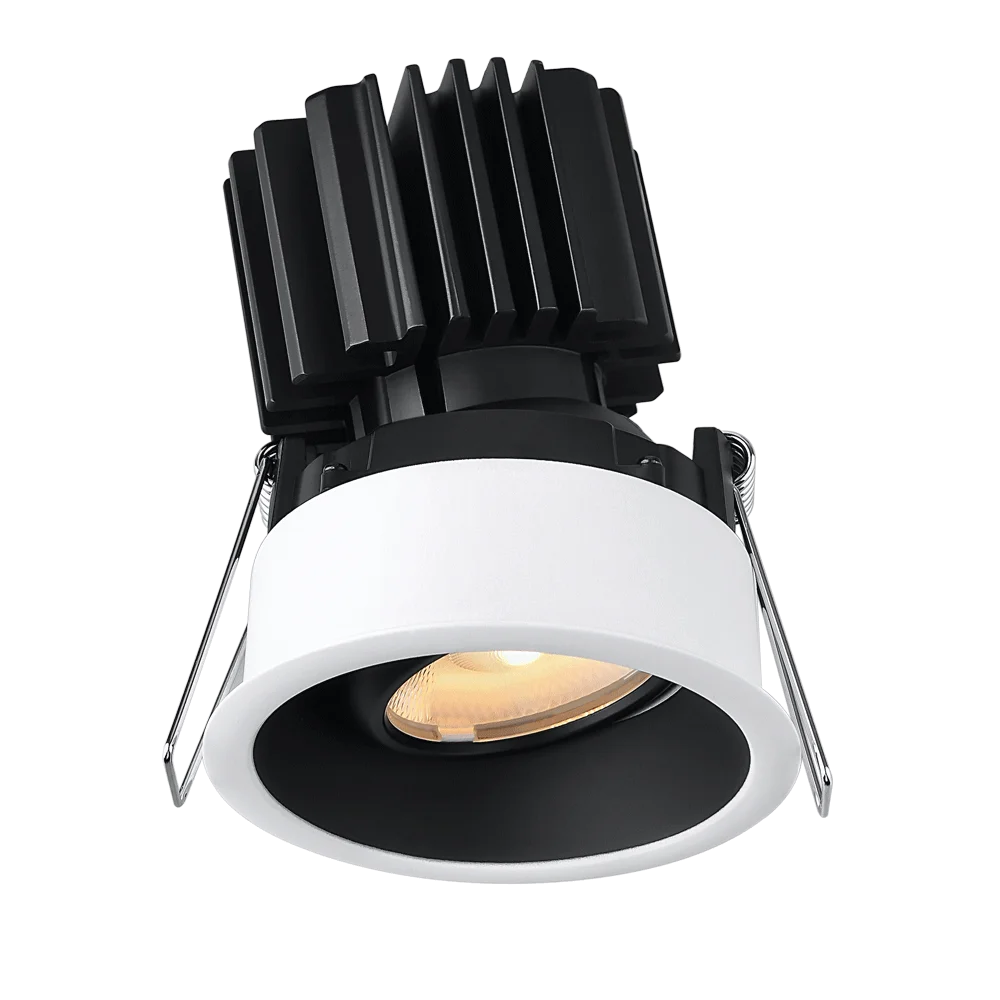

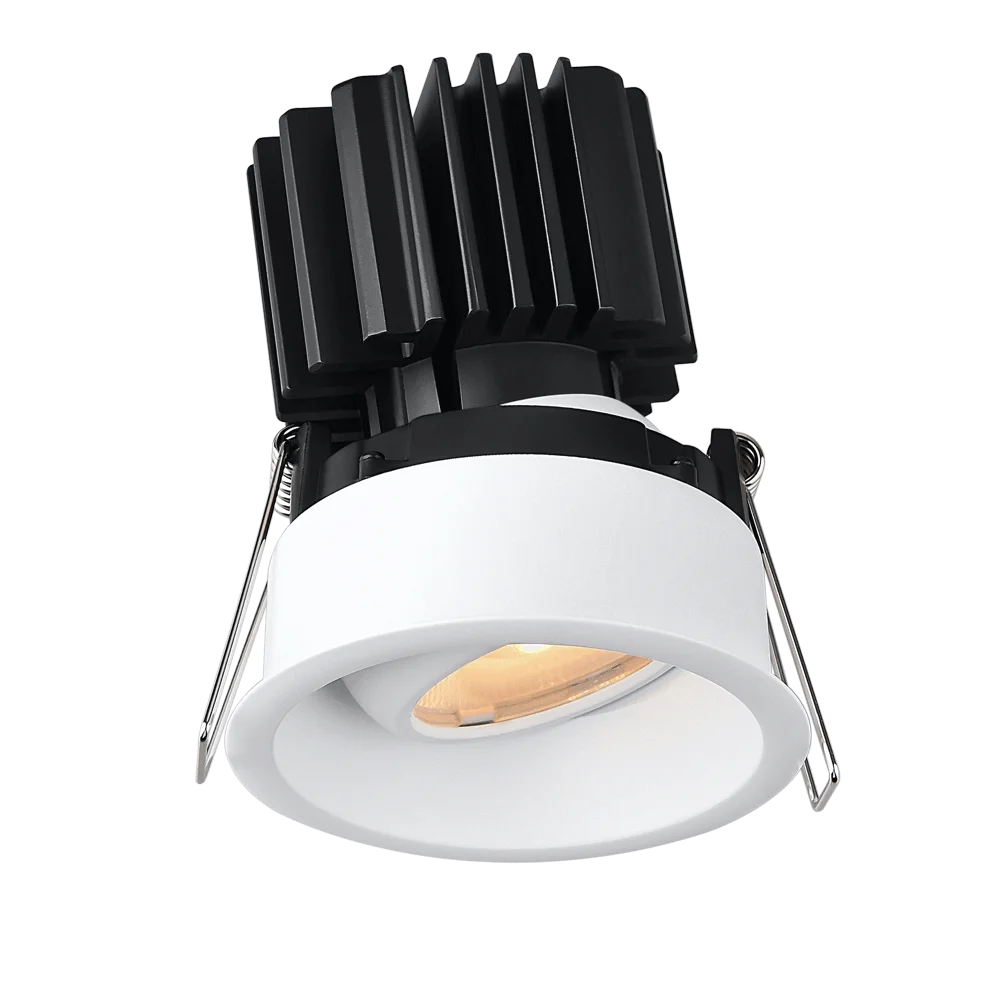

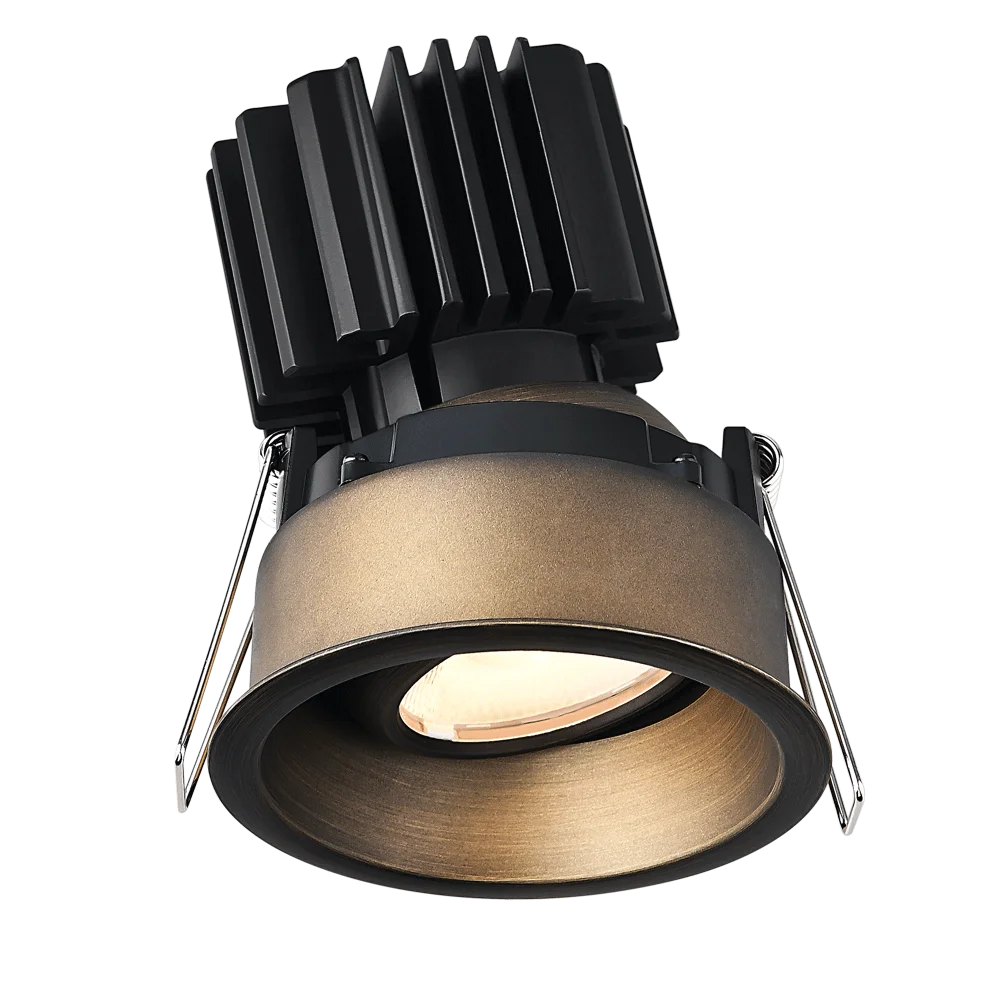

The Lotus LED Lights Tangra L3G-RRT series is a premium 3″ gimbal round recessed thin trim fixture designed for precision accent and task lighting. Built in Canada with a solid cast aluminum body and advanced optics, it delivers flexible beam control and high color quality for demanding residential and commercial spaces. Its modular platform supports multiple driver and optical configurations for tailored performance.
Key Features and Benefits
- Adjustable aiming with 20° tilt and full 360° rotation for directional lighting control
- 4CCT + Dim to Warm LED package transitions from 3500K to 2700K for comfortable ambiance
- Selectable 11W/15W operation (with compatible Tangra drivers) to match output needs
- Up to 1600lm performance for strong illumination in compact 3″ apertures
- Certified for Type IC, Air Tight, Open Plenum, and Wet Location IP54 installations
- Long-term reliability backed by 70% lumen maintenance at 50,000 hours and extended Lotus line warranty support
Specifications
- Series/Model: L3G-RRT Tangra 3″ Gimbal Round Recessed Thin Trim
- Beam options: 20°, 24°, 36°, 50°, 60° (20° reflector-only option)
- Optics options: Reflector clear glass (RC), semi-frosted (RS), frosted (RF), lens white (LW), lens black (LB)
- Input to fixture: 20-40V DC, max 350mA constant current
- Driver options: 120V Triac dimmable or 120-347V 0-10V dimmable, 11W/15W selectable
- Minimum dimming: 3% reverse phase cut / 4% forward phase cut
- Operating temperature: -40°F to +113°F (-40°C to +45°C)
- J-box wire capacity: max 5 #12 AWG or 8 #14 AWG with FT6/CMP cable
- Cutout: 3″; required space above ceiling for driver: 4″
Common Uses
Ideal for task lighting, sloped ceilings up to 20°, and wall washing in residential, hospitality, retail, and commercial interiors where compact aperture, aiming flexibility, and high-quality color rendering are essential.
