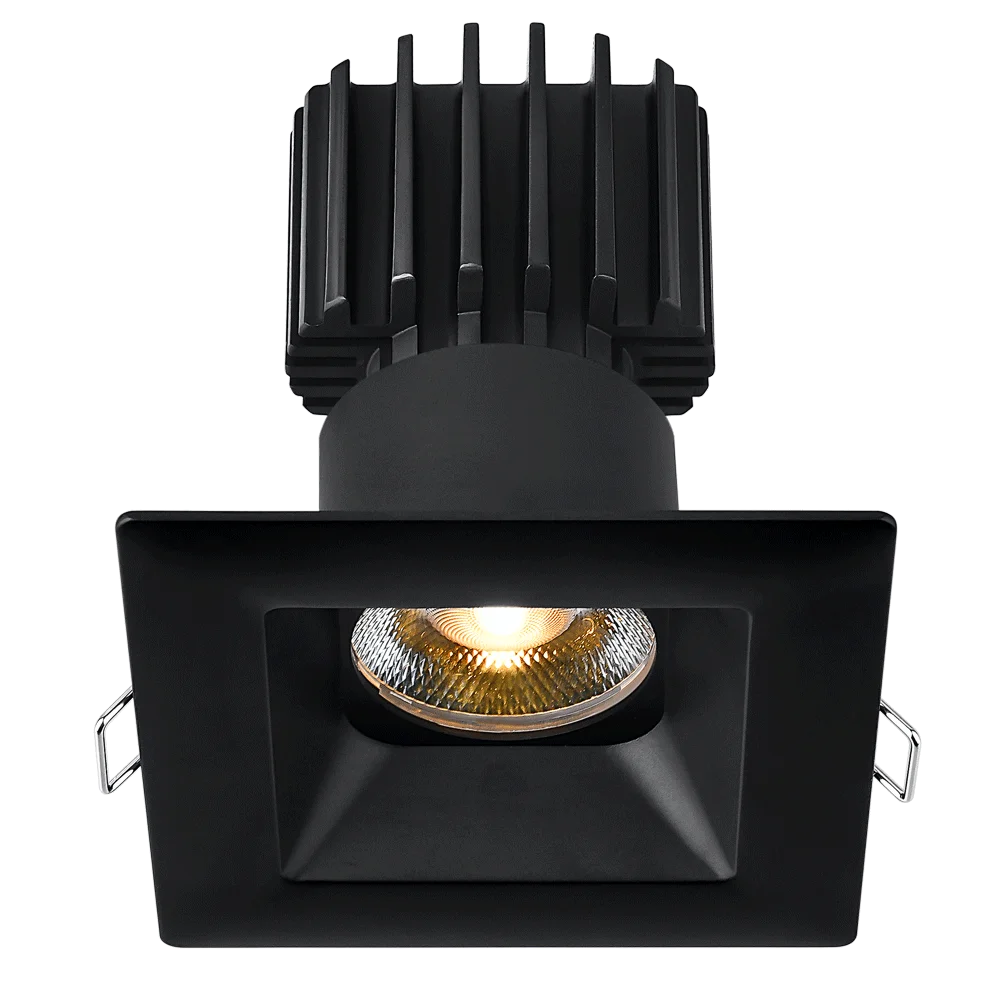

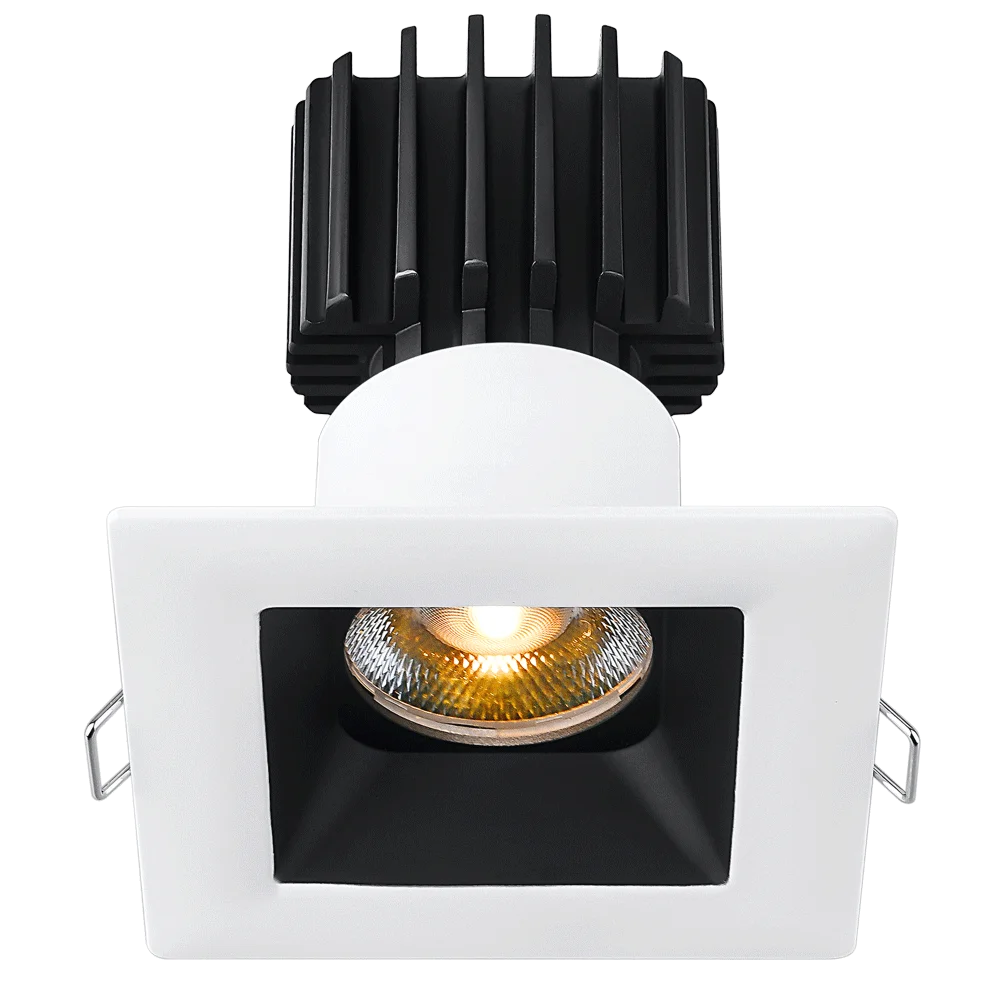

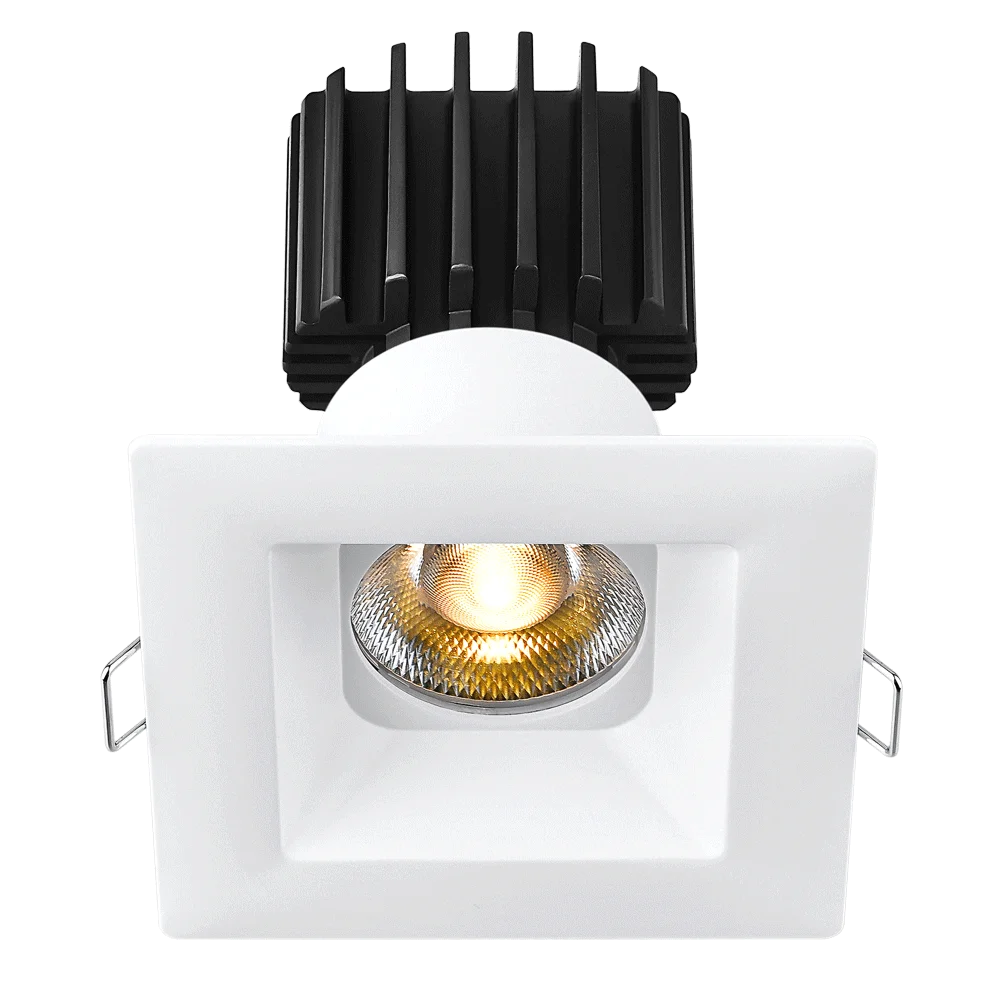

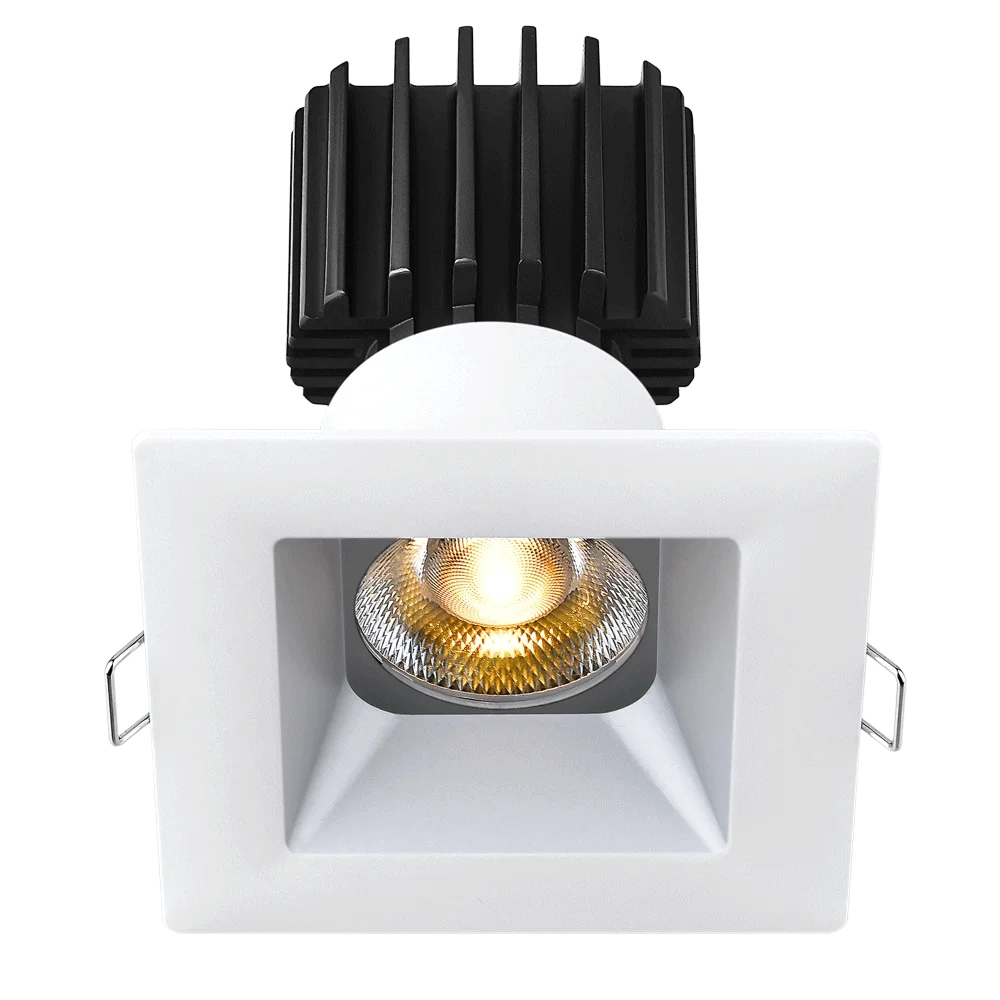

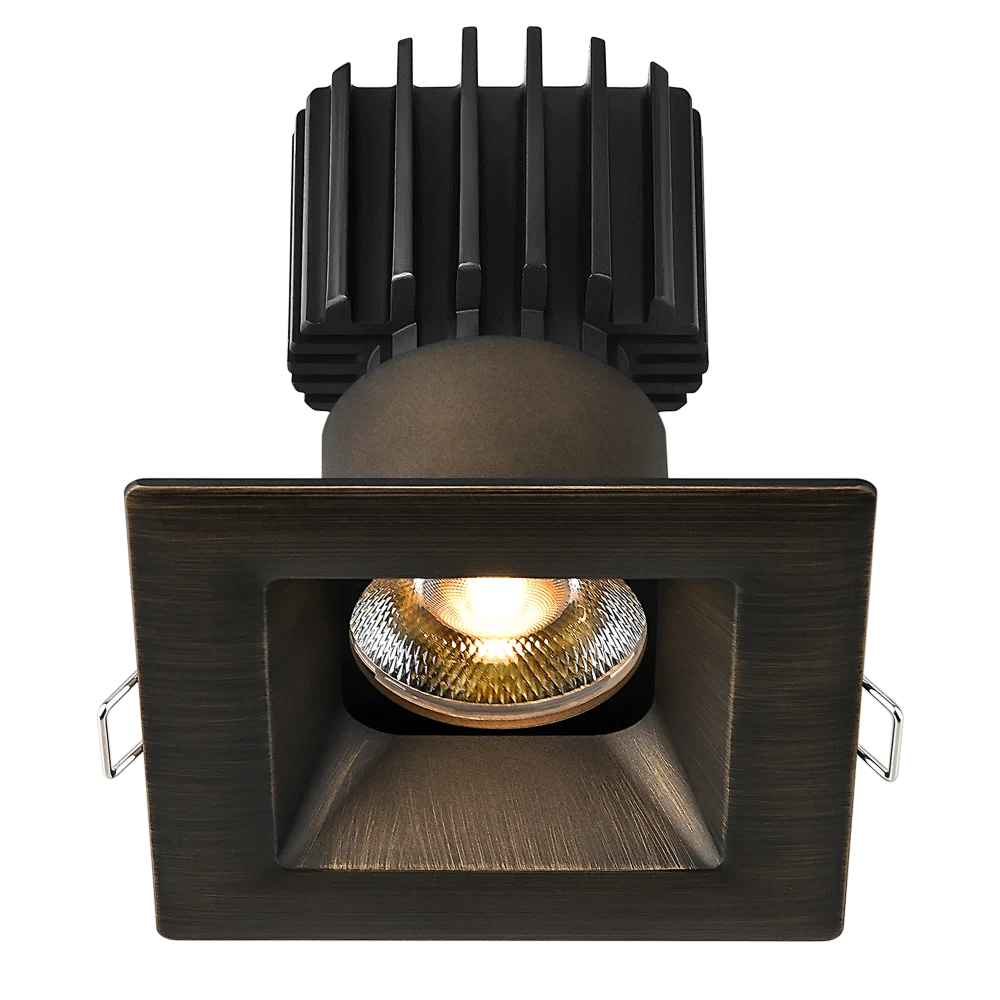

The Lotus LED Lights Tangra L3F-SRW is a premium 3″ fixed square recessed wide trim engineered for high-end architectural lighting. Built in Canada with a solid cast aluminum body and advanced optics, it delivers excellent visual comfort and color quality for both residential and commercial spaces. Its modular platform supports multiple driver, beam, and CCT configurations for tailored performance.
Key Features and Benefits
- Flexible output with up to 1600 lumens and 11W/15W selectable power when paired with compatible Tangra drivers.
- Wide optical flexibility with 20°, 24°, 36°, 50°, and 60° beam choices to match accent or general lighting needs.
- Built for demanding installs with Type IC, air-tight, open plenum suitability, and wet location IP54 protection.
- Long-term reliability backed by cETLus/FCC compliance and a manufacturer lifetime-plus-5-year warranty policy.
Specifications
- Lumen Output: up to 1600
- Wattage: 11W|15W
- Voltage: 120V|120-347V
- Dimming Type: Phase|0-10V
- Color Temperature: 3000K
- CRI: 95
- Beam Angle: 20°|24°|36°|50°|60°
- Output Current: 350mA
- Output Voltage Range: 20-40V DC
- Max Ambient Temperature: 113°F (45°C)
- Rated Life (70 Hours): 50000
- IP Rating: IP54
- Cutout: 2 5/8″ square
Common Uses
Ideal for upscale residential interiors, hospitality spaces, retail displays, corridors, and other architectural environments requiring compact square recessed fixtures with high CRI, reduced glare, and configurable beam control.
