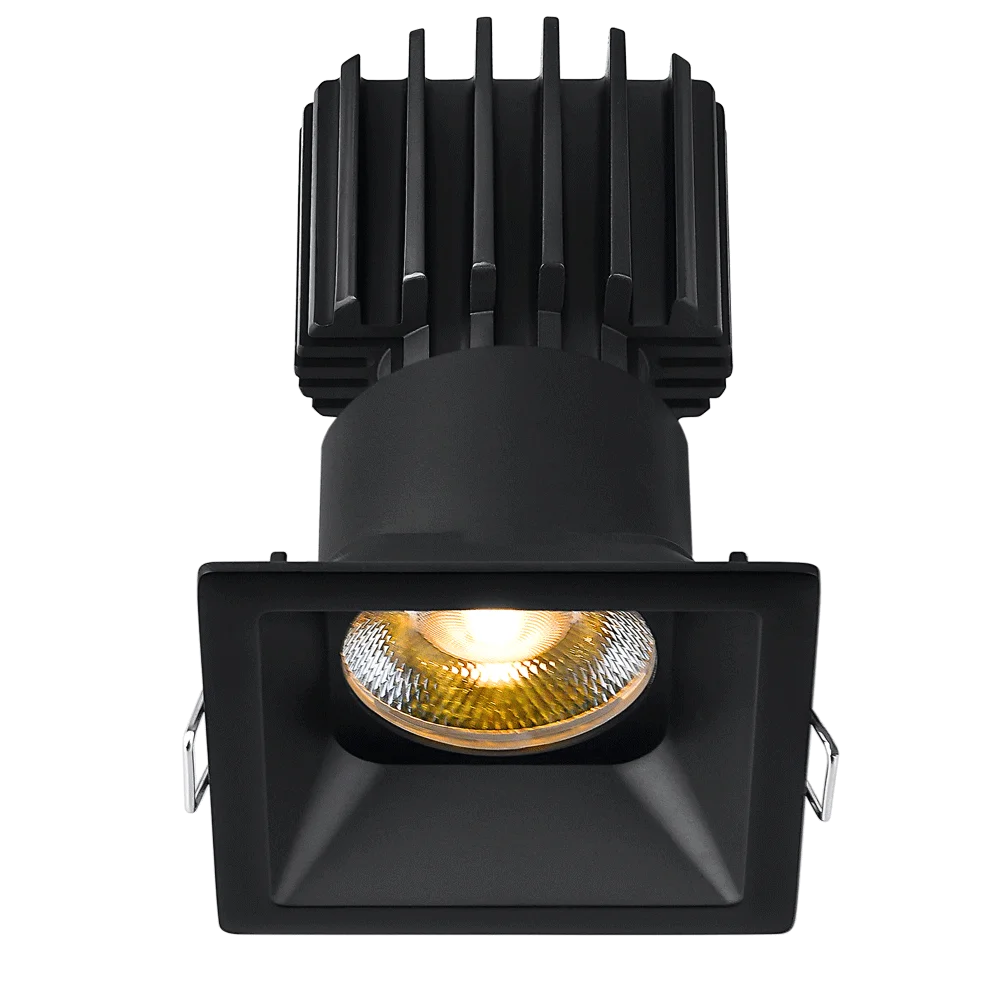

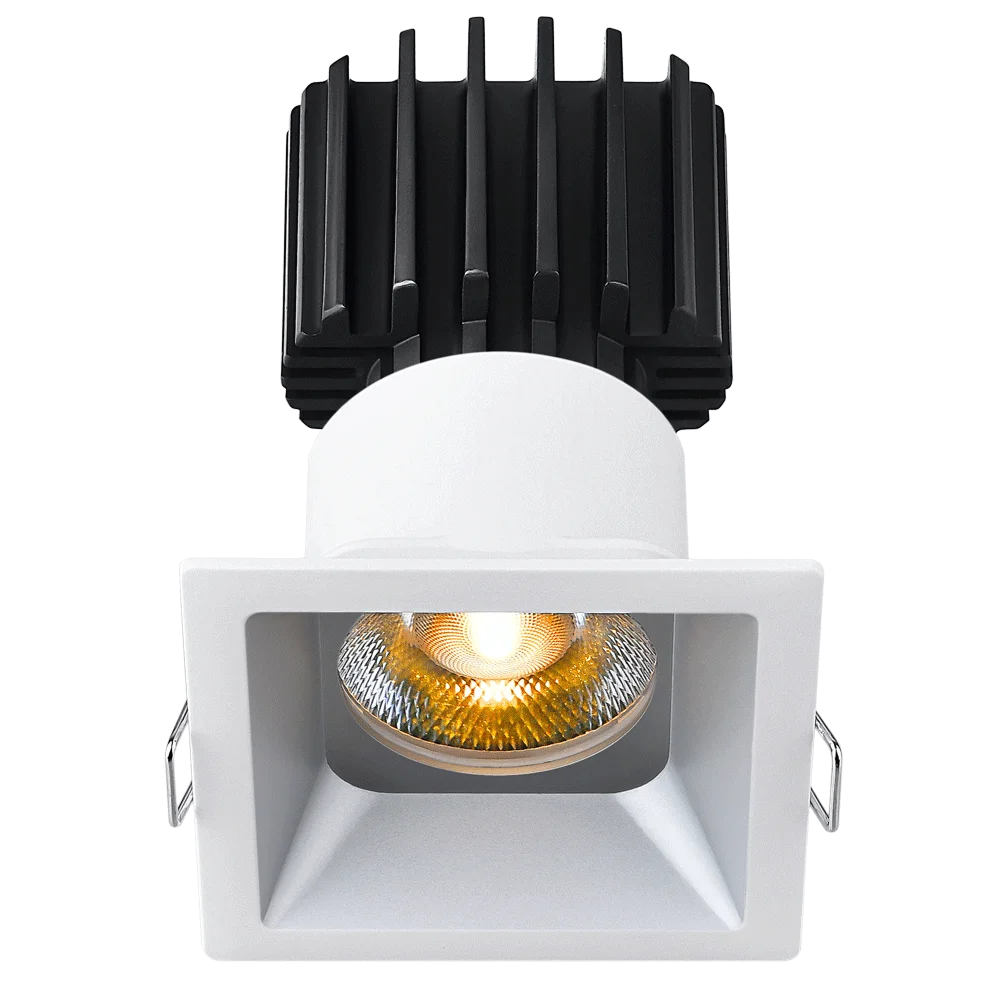

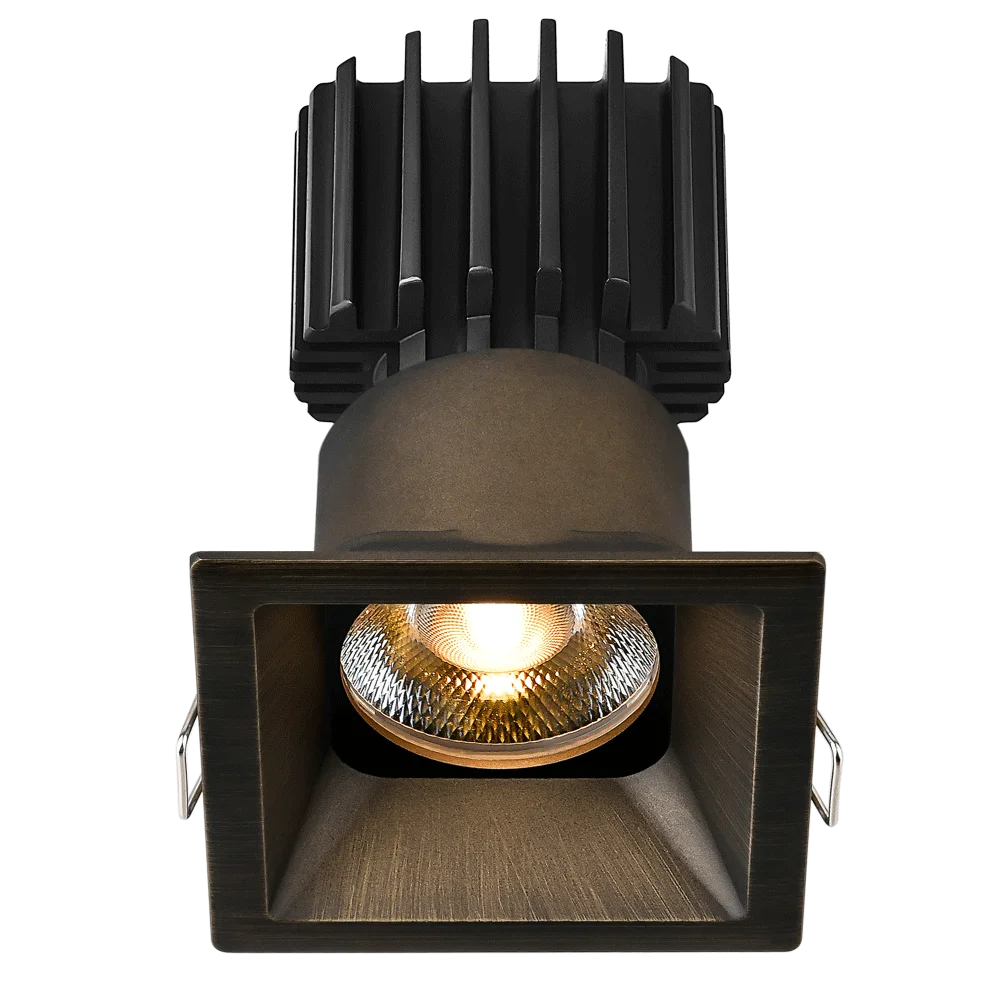

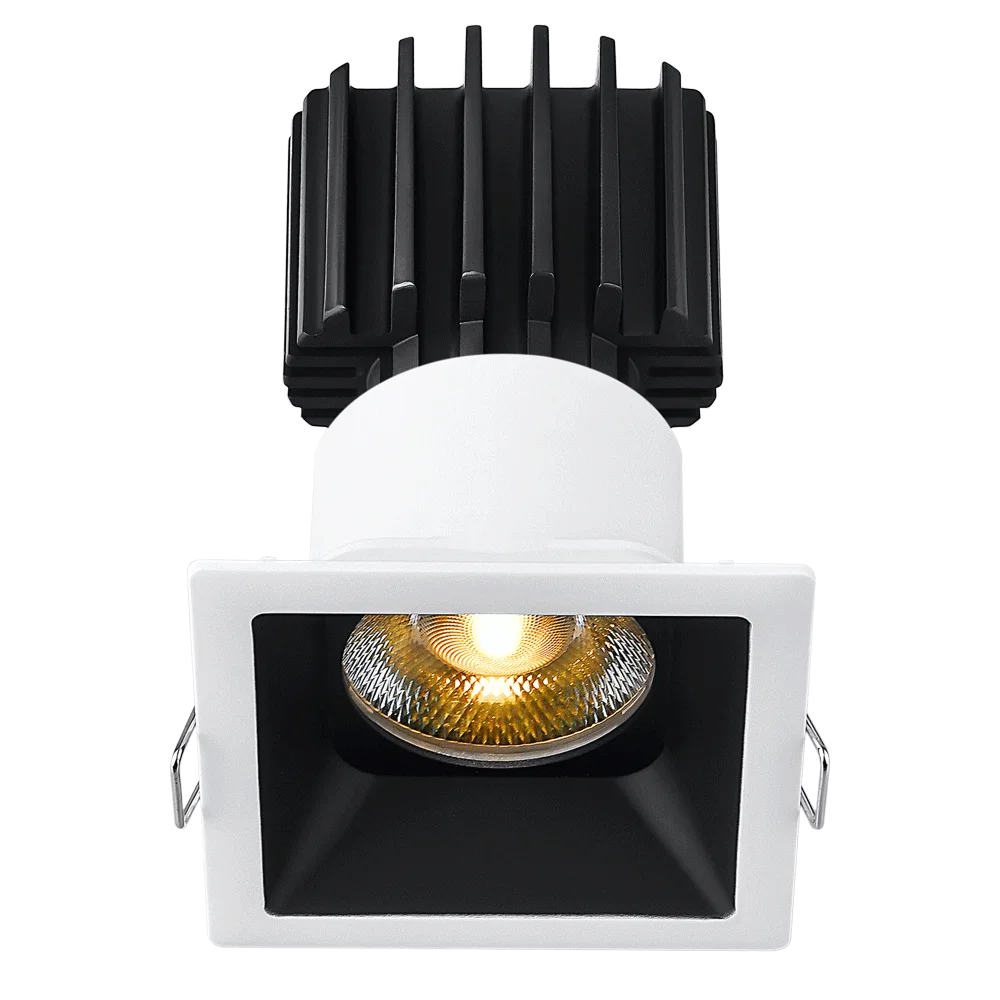

The Lotus LED Lights Tangra 3″ Fixed Square Recessed Thin Trim is a premium architectural downlight designed for clean, near-trimless ceilings and high visual comfort. Built in Canada with a solid cast aluminum body and advanced optics, this fixture is part of Lotus’ modular Tangra lineup for flexible, high-performance lighting designs.
Key Features and Benefits
- Selectable 11W or 15W operation (with compatible Tangra driver) to balance output and energy use.
- High-quality 3000K LED with CRI95 for accurate color rendering in residential and commercial interiors.
- Multiple optical choices and beam spreads available for precise accent or general illumination.
- Certified cETLus and FCC compliant, Type IC, Air Tight, Open Plenum, and Wet Location rated (IP54) for versatile code-compliant installs.
- Backed by Lotus lifetime line support plus 5-year warranty coverage.
Specifications
- Lumen Output: up to 1600
- Wattage: 11W|15W
- Voltage: 120V (Triac driver option)|120-347V (0-10V driver option)
- Color Temperature: 3000K
- CRI: 95
- Beam Angle: 20°|24°|36°|50°|60°
- Optics options: Reflector clear glass (RC), semi-frosted (RS), frosted (RF), lens white (LW), lens black (LB)
- Fixture Input: 20-40V DC, max 350mA constant current
- Dimming: Triac (3% reverse phase / 4% forward phase cut) or 0-10V depending on driver
- Rated Life: 50000 hours (70% lumen maintenance)
- Max Ambient Temperature: -40°F (-40°C) to +113°F (+45°C)
- Cutout: 2 5/8″ square; driver clearance above ceiling: 4″
Common Uses
Ideal for upscale residential, hospitality, retail, and commercial interiors requiring compact recessed lighting with refined aesthetics and strong color quality. Suitable for ambient/general lighting and reduced-glare applications, including damp or wet-location ceiling installations.
