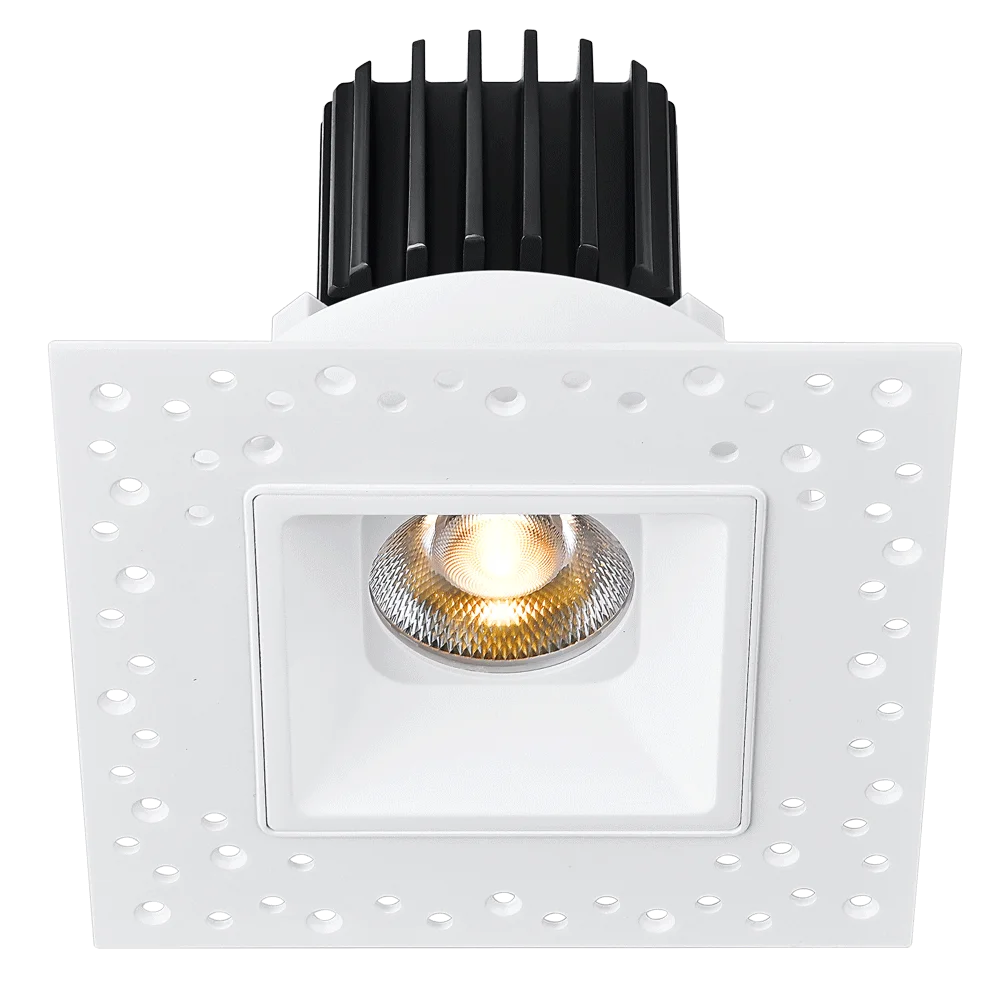

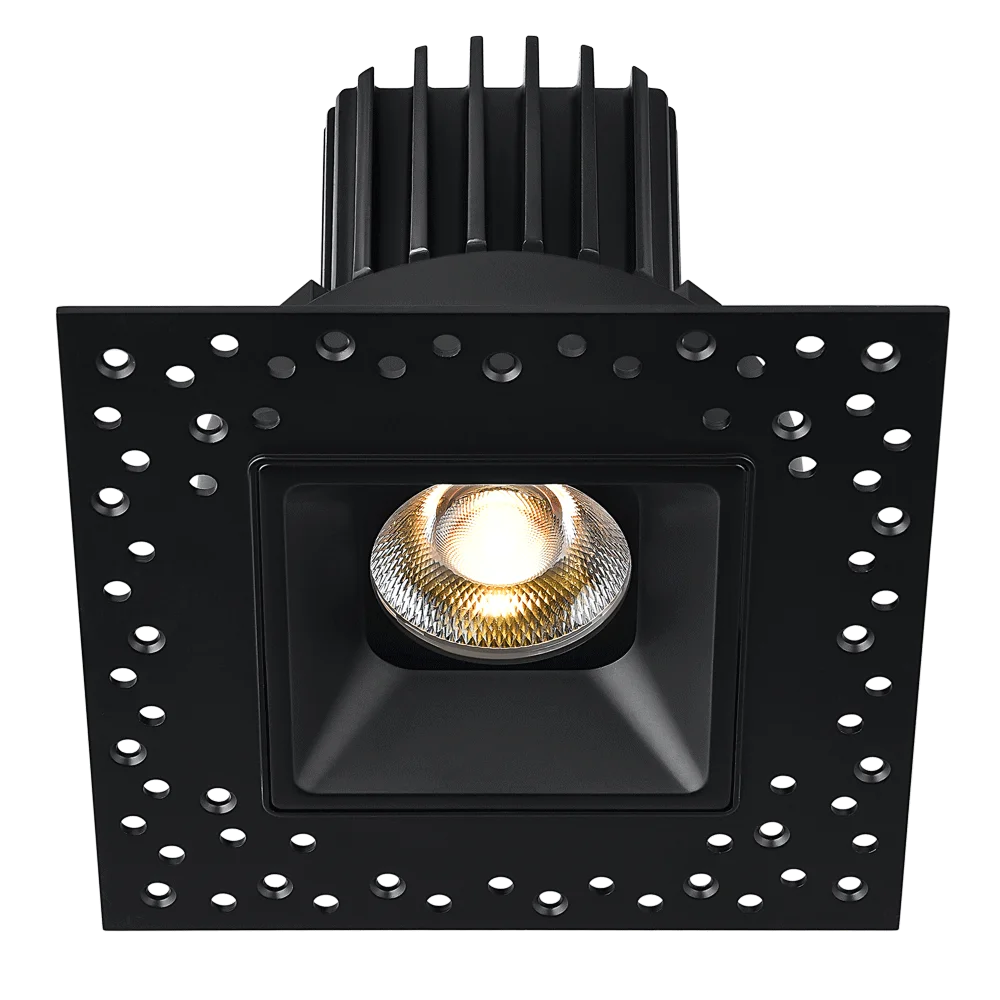

The Lotus LED Lights Tangra 3\” Fixed Square Recessed Invisible Trim is a premium architectural downlight designed for clean, trimless ceilings and high visual comfort. Built with a solid cast aluminum body and advanced optics, this Canadian-made fixture is a key option in the Tangra lineup for refined residential and commercial interiors.
Key Features and Benefits
- Trimless square design delivers a seamless, modern ceiling appearance with reduced glare.
- Ultra-high color quality option at CRI98 for accurate, vibrant color rendering in premium spaces.
- Flexible lighting performance with selectable 11W/15W driver compatibility and beam spreads from narrow to wide.
- Certified for demanding installs with cETLus, FCC, Type IC, Air Tight, Open Plenum, and Wet Location IP54 ratings.
- Long-term reliability backed by 70% light output at 50,000 hours and Lotus lifetime line support plus 5-year warranty coverage.
Specifications
- Lumen Output: up to 1600
- Wattage: 11W/15W (driver selectable)
- Voltage: 120V (Triac driver) | 120-347V (0-10V driver)
- Color Temperature: 3000K
- CRI: 98
- Beam Angle: 20° | 24° | 36° | 50° | 60°
- Optics options: Reflector clear glass (RC), semi-frosted (RS), frosted (RF), lens white (LW), lens black (LB)
- Dimming: Triac (3% reverse phase cut / 4% forward phase cut) | 0-10V
- Input to Fixture: 20-40V DC, max 350mA constant current
- Max Ambient Temperature: +113°F (+45°C)
- Operating Temperature: -40°F (-40°C) to +113°F (+45°C)
- IP Rating: IP54
Common Uses
Ideal for upscale residential rooms, hospitality spaces, retail boutiques, corridors, and other architectural interiors requiring discreet recessed lighting, high CRI performance, and customizable beam control.
