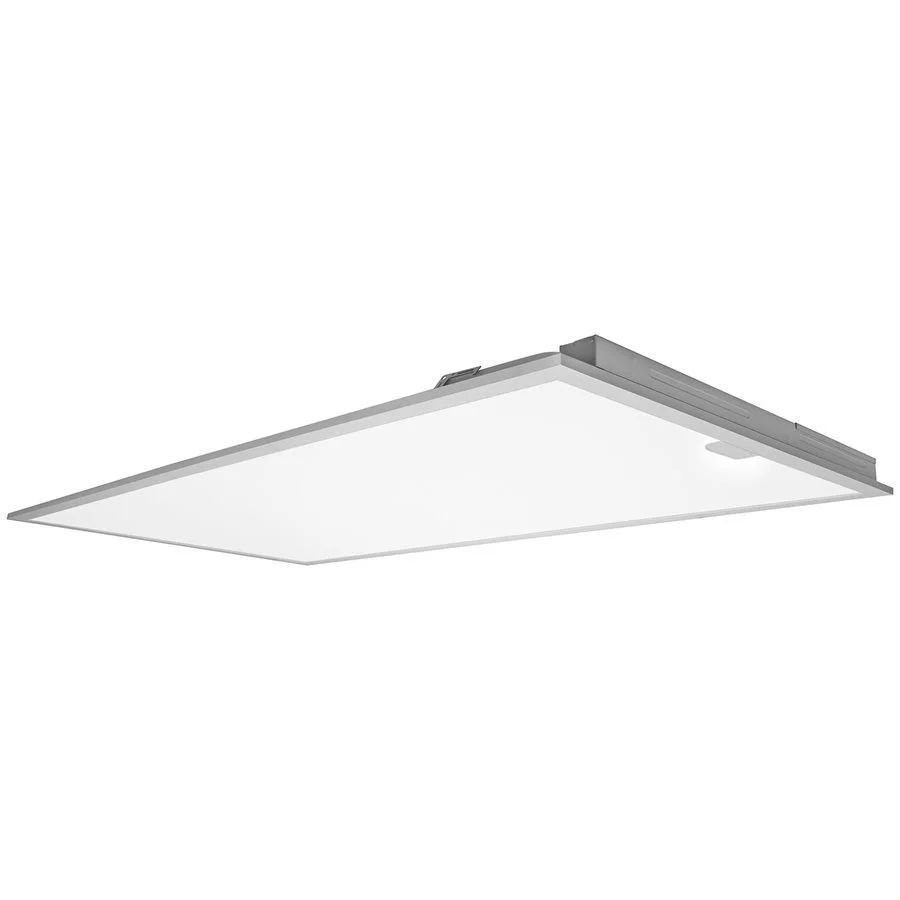

The Sunlite 85686-SU is a versatile 2×4 backlit lay-in flat panel designed for modern commercial interiors that need flexible light output and color tuning. As part of Sunlite’s selectable panel lineup, it helps simplify stocking while delivering dependable performance for retrofit and new construction projects.
Key Features and Benefits
- Field-selectable wattage and CCT let you tailor light levels and appearance to each space.
- 0-10V dimming support enables smooth control and energy-saving operation.
- ETL listed for damp locations, making it suitable for a wider range of indoor environments.
- Backlit panel design with diffuse PMMA lens provides broad, comfortable illumination.
- Backed by a 5-year warranty for added project confidence.
Specifications
- Lumen Output: 3900|5200|6500|7800|9360
- Wattage: 30W|40W|50W|60W|72W
- Voltage: 120-277V
- Color Temperature: 3000K|3500K|4000K|5000K|6500K
- CRI: 80
- Beam Angle: 120°
- Rated Life (70 Hours): 50000
- Power Factor: 0.9
- Max Ambient Temperature: 104°F
- Primary Material: Steel|Aluminum|PMMA
- Lens Material: PMMA
- Finish / Color: White
- Form Factor: 2×4
Common Uses
Ideal for offices, schools, healthcare support areas, retail spaces, and other indoor commercial applications using recessed grid ceilings where adjustable output and color temperature are needed.
