The Energy Light 20A5SS188DB is a commercial-grade square direct-burial aluminum light pole engineered for dependable outdoor site lighting support. Built from seamless 6063 series extruded aluminum, this 20′ above-grade pole is designed for strength, corrosion resistance, and long-term field performance. It is a key solution in Energy Light’s pole lineup for parking lots, pathways, and perimeter lighting projects.
Key Features and Benefits
- Heavy-duty 0.188″ wall construction helps support demanding outdoor fixture loads.
- Direct-burial design streamlines installation and reduces the need for base-plate mounting hardware.
- Commercial-grade super durable powder coat finish in standard dark bronze for long-lasting appearance.
- Includes handhole cover and integrated ground lug for easier wiring access and proper grounding.
- Flexible pole-top configuration with removable cap or open top, plus optional 2-3/8″ or 3″ tenon compatibility.
- Backed by a 5-year manufacturer warranty for added project confidence.

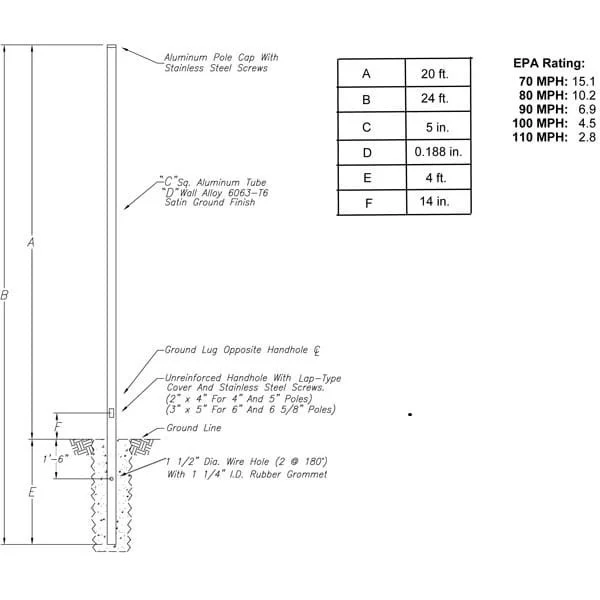

Specifications
- Pole Height Above Grade: 20′
- Pole Shape/Size: 5″ square straight shaft
- Wall Thickness: 0.188″
- Material: 6063 series aluminum alloy (ASTM B221)
- Handhole Size: 2″ x 4″
- Handhole Location: 18″ above ground
- Wire Access Slot: 1-3/4″ x 5-3/4″
- Wire Access Location: 24″ below ground line
- Embedment: 4′ standard table basis (5′ possible by zip code requirement)
- Total Length: 24′ (with 4′ embedment)
- Weight: 102 lbs
- EPA Rating (1.3 gust factor): 15.1 @70 mph, 10.2 @80 mph, 6.9 @90 mph, 4.5 @100 mph, 2.8 @110 mph
Common Uses
Ideal for parking areas, commercial campuses, walkways, municipal spaces, and general outdoor area lighting applications where direct-burial poles are preferred.
