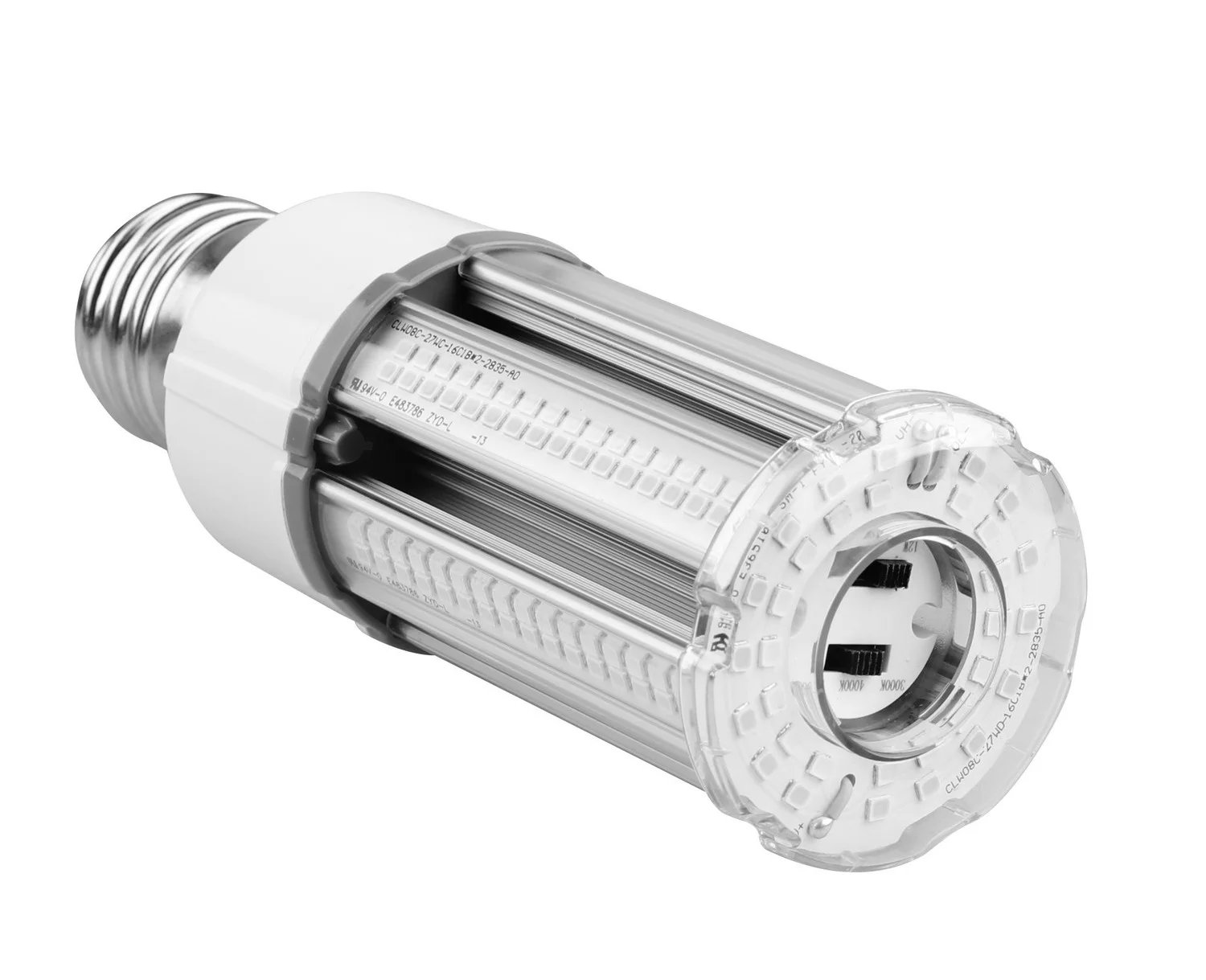

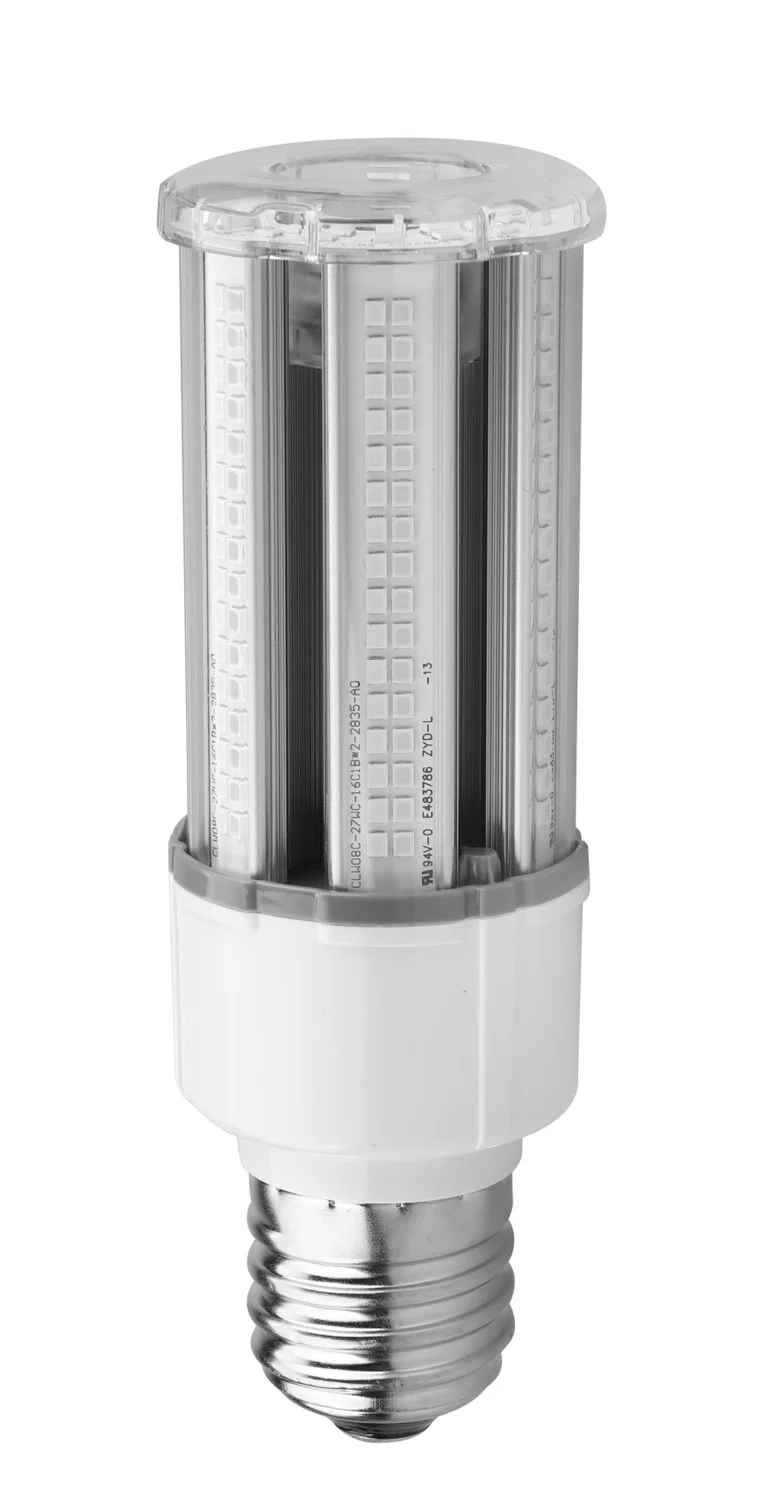

The Westgate CL-XHL High-Lumen LED Corn Lamp is a versatile and energy-efficient lighting solution designed for retrofitting HID fixtures. With selectable wattages of 12W, 18W, or 27W and color temperatures of 3000K, 4000K, or 5000K, this lamp delivers outstanding flexibility and performance. Its robust construction and advanced features make it a reliable choice for demanding environments.
Key Features and Benefits
- Selectable wattage (12W/18W/27W) and color temperature (3000K/4000K/5000K) for tailored lighting
- High efficacy at 145 lumens per watt for significant energy savings
- Durable PC and aluminum housing ensures long-lasting performance
- Direct AC operation bypasses existing ballasts for easy installation
- 360° beam angle for uniform light distribution
- Meets 4KV surge immunity for enhanced protection
- Suitable for damp locations and wide temperature range operation
Specifications
- Wattage: 12W | 18W | 27W
- Lumens: Up to 3915lm (27W x 145LPW)
- Voltage: 120-277V AC, 50/60Hz
- Color Temperature: 3000K | 4000K | 5000K
- CRI: ≥80
- Power Factor: >0.9
- THD: ≤20%
- Base: E39
- Operating Temperature: -40°F to 176°F
- Minimum Enclosed Space: 11.8″(H) x 7.1″(D)
Common Uses
Ideal for supermarkets, warehouses, garages, homes, offices, hotels, hospitals, schools, and high bay retrofitting projects.
