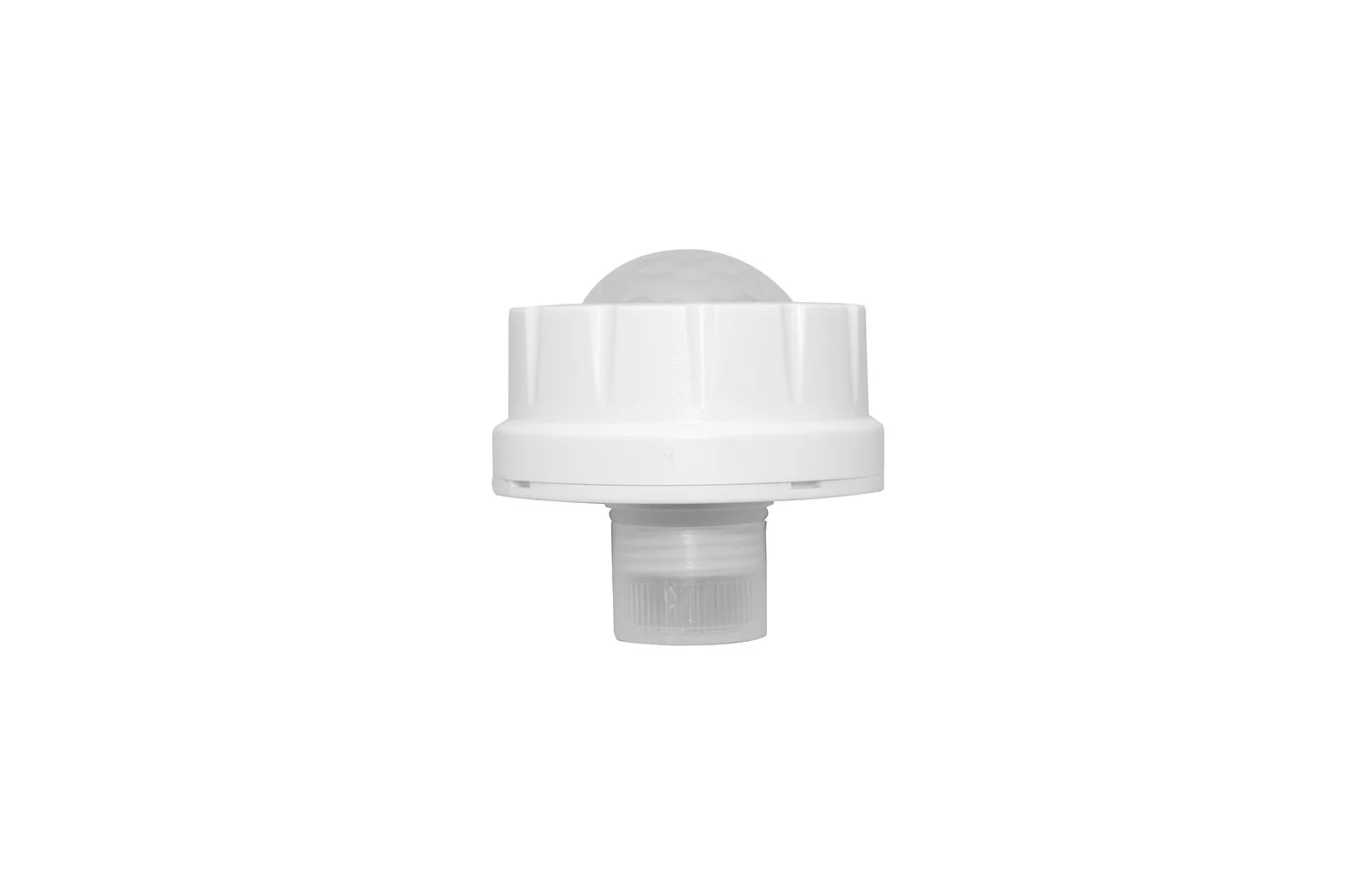

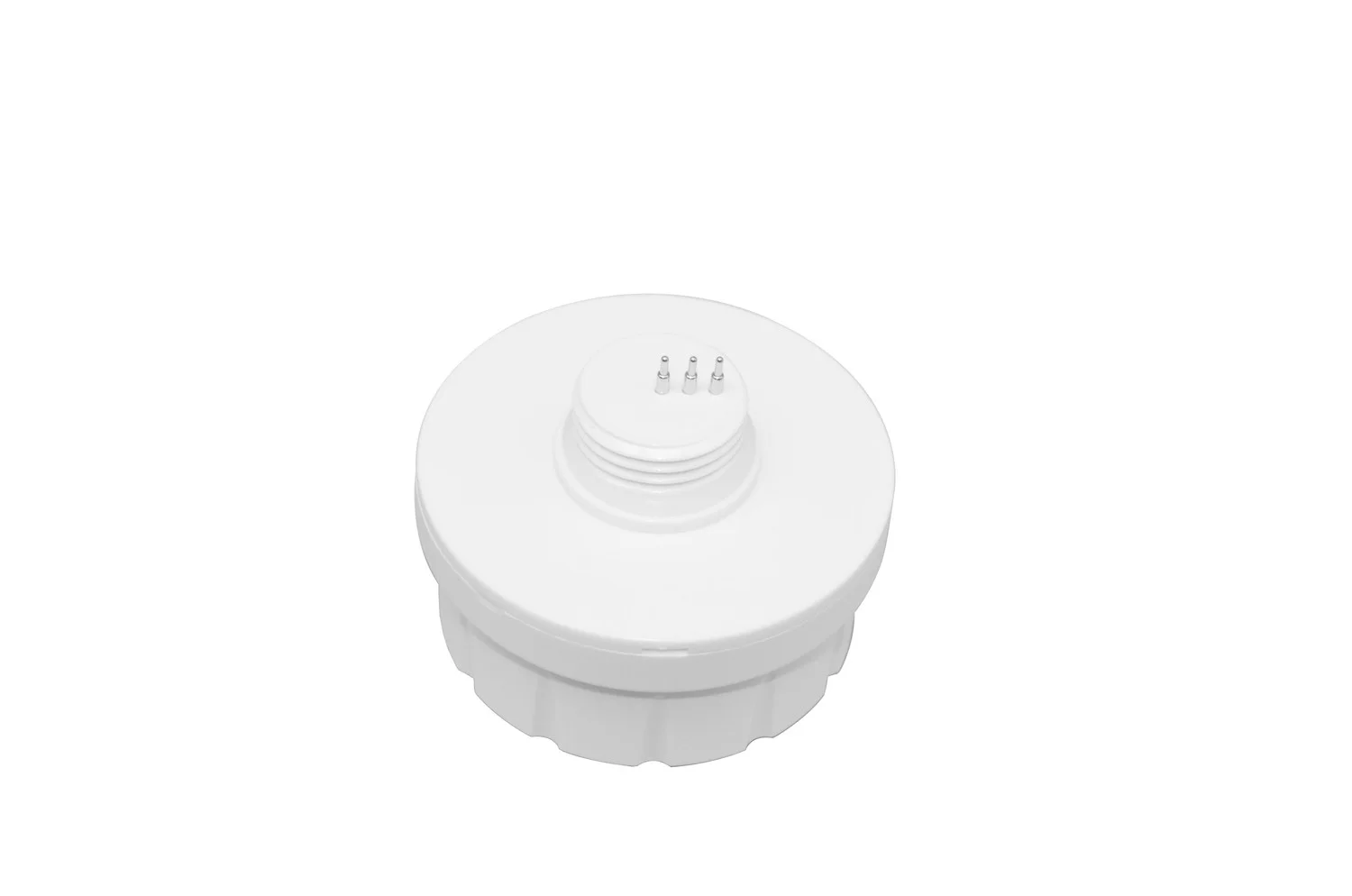

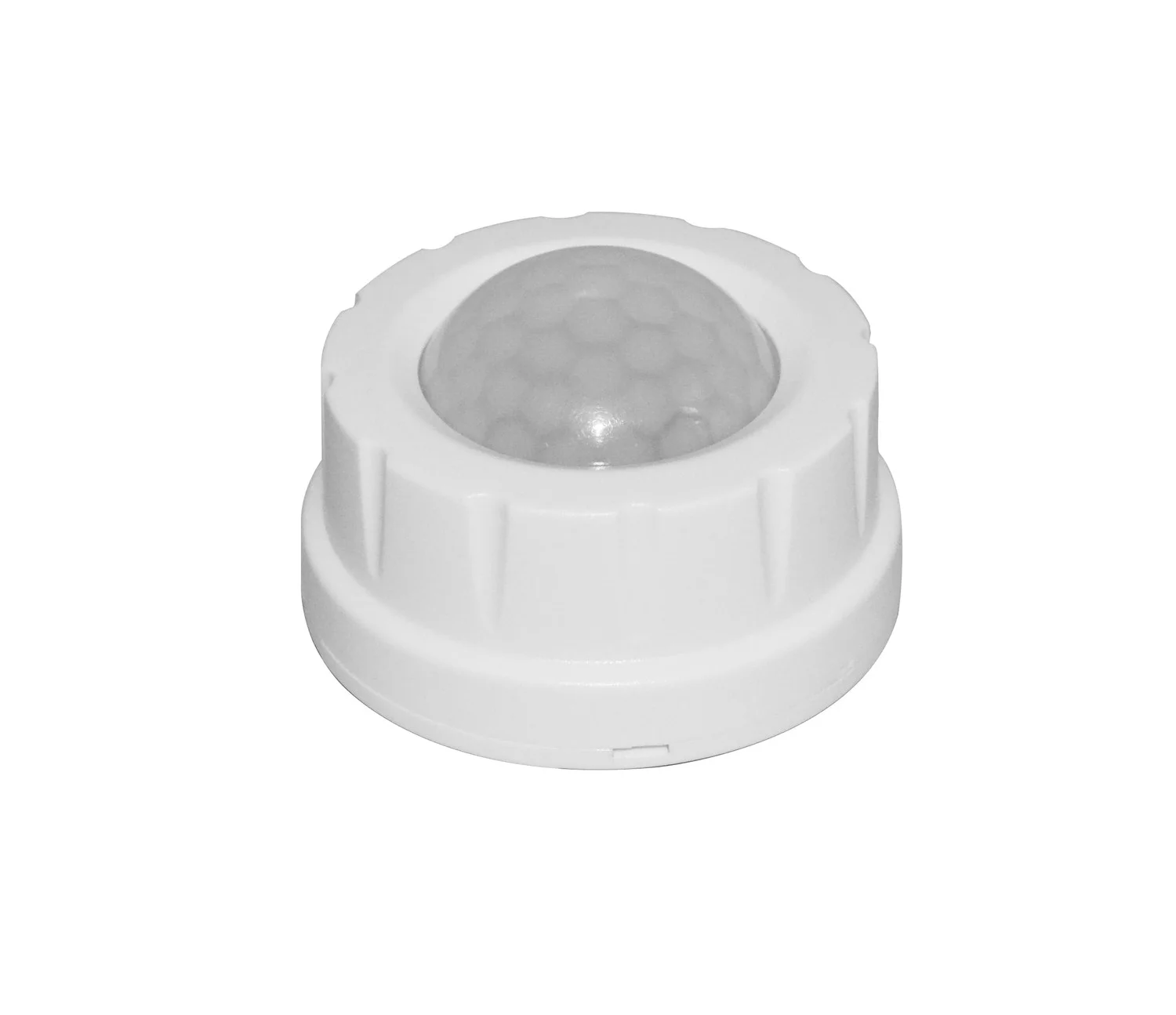

Screw-in PIR Motion Sensor for stand-alone controls, designed for quick installation with EiKO fixtures. Features adjustable brightness, dim level, sensitivity, hold time, and dim time.
Key Features and Benefits
- Screw-in design for easy installation with compatible fixtures
- Passive infrared technology for automatic on/off based on occupancy
- Field adjustable settings: brightness, dim level, sensitivity, hold time, and dim time
- Dual ambient and daylight sensing technology for improved accuracy
- Daylight harvesting for energy efficiency
- Photocell function for dusk-to-dawn or two-stage dimming
- Robust design for reliable operation in various environments
- Maintenance-friendly with remote commissioning
Specifications
- Mounting Height: 8-40ft
- 0-10V Bi-Level Dimming
- 360° Coverage Pattern
- Input Voltage: 12-24VDC
- Input Current: 50mA
- Dimming: 0-10V
- Remote Control: SEN5A-ACT (Purchased Separately)
- Operating Temperature: -4°F to 140°F (-20°C to 60°C)
- High strength, UV-resistant white polycarbonate housing
- Screw-in installation
- UL listed for US & Canada
- RoHS Compliant
- FCC Compliant
- IP65 Rated
Common Uses
Warehouses, manufacturing plants, distribution centers, gymnasiums, parking garages, parking lots, car dealerships, athletic facilities, sports fields, big box retail, and service repair centers.
