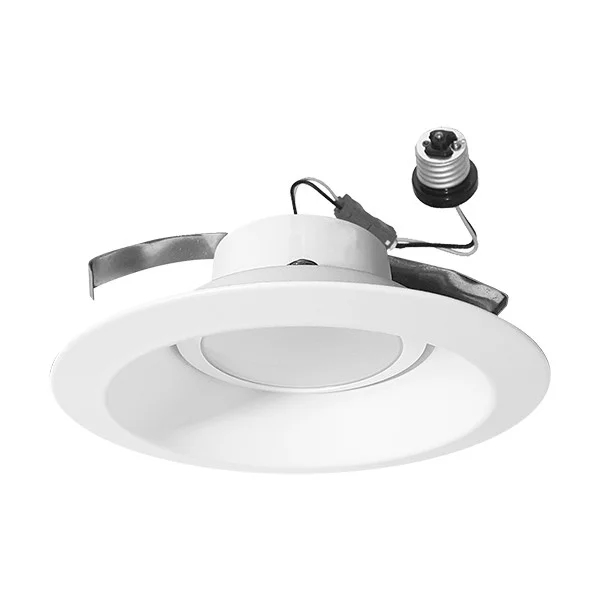

The RP Lighting and Fans 8763 series 4″ LED Recessed Reflector Trim is a practical, energy-saving upgrade for residential and light-commercial downlighting. Designed for both retrofit and new construction projects, it combines clean aesthetics with dependable performance in wet-location applications.
Key Features and Benefits
- Delivers bright, efficient illumination with 791 delivered lumens while using only 10W
- Supports smooth 10-100% dimming via TRIAC or ELV controls for flexible ambiance
- Wet-location certified design expands use to bathrooms, soffits, and covered exterior areas
- Long-life LED platform rated for 50,000 hours to reduce maintenance frequency
- Energy Star listed and cETLus certified for trusted code-friendly performance
- Backed by a 5-year limited warranty on the LED lamp and 1-year limited warranty on other components
Specifications
- Lumen Output: 791
- Wattage: 10W
- Voltage: 120V
- Frequency: 60Hz
- Color Temperature: 4000K
- CRI: 90

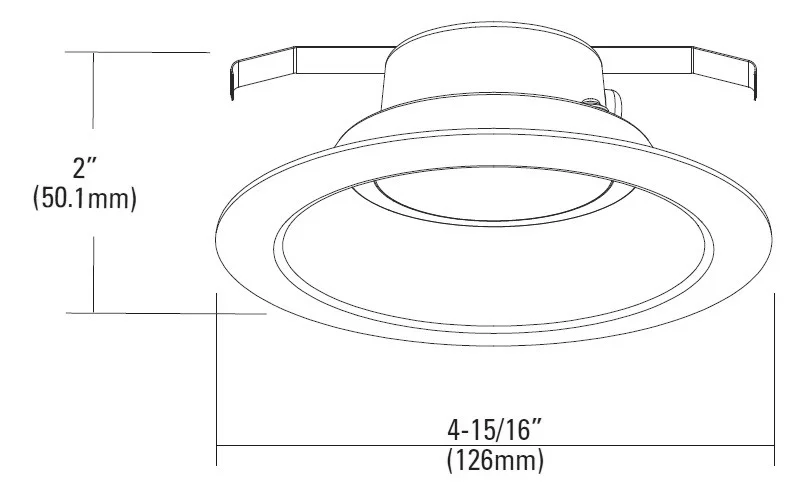

- Dimensions: 2″ H x 4-15/16″ W
- Lens Material: Frosted acrylic
- Primary Material: Spun aluminum trim flange with spring steel retention clips
- Installation: Recessed into 4″ housings with spring steel retention clips; E26 adapter included
- Compatible Housings: 8201HA, 8201HRA, 8202HA, 8215HA, 8215HRA
Common Uses
Ideal for residential and light-commercial recessed downlighting in kitchens, hallways, living spaces, bathrooms, and other wet-location environments where efficient, dimmable illumination is needed.
