RG Series 6″ Regress Gimbal, 22W, 2200 lumens, 120/277V, 5CCT, White

The Lum-Tech RG Series 6″ Regress Gimbal is a versatile recessed downlight designed for modern projects that need directional control, high color quality, and selectable white tones. As part of Lum-Tech’s architectural recessed lineup, it combines strong output with flexible dimming and code-friendly ratings for broad application use.

Key Features and Benefits

• 5CCT field-selectable output (2700K to 5000K) supports one-SKU flexibility across multiple spaces.
• Regressed gimbal design helps reduce glare while allowing aimed illumination.
• High color quality with 90+ CRI enhances material and finish appearance.
• Triac and 0-10V dimming compatibility enables smooth control down to 5%.
• Title 24 (JA8) compliant with ETL and FCC markings for confidence in code-driven projects.
• Wet location, IC-rated, and airtight construction supports use in demanding ceiling environments.

Specifications

• Lumen Output: 2200
• Wattage: 22W
• Voltage: 120/277V
• CRI: 90
• Beam Angle: 60°
• Color Temperature: 2700K|3000K|3500K|4100K|5000K

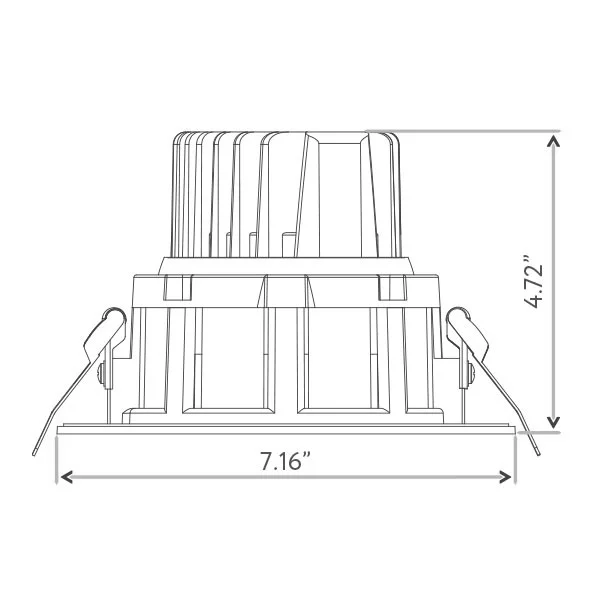

• Cut Out: 6.00″
• Fixture Diameter: 7.16″
• Fixture Height: 4.72″

Common Uses

Ideal for residential living areas, hospitality spaces, corridors, retail, and light commercial interiors where adjustable recessed lighting, high CRI, and selectable CCT are required. Suitable for new construction and remodel applications using compatible plates and accessories.
