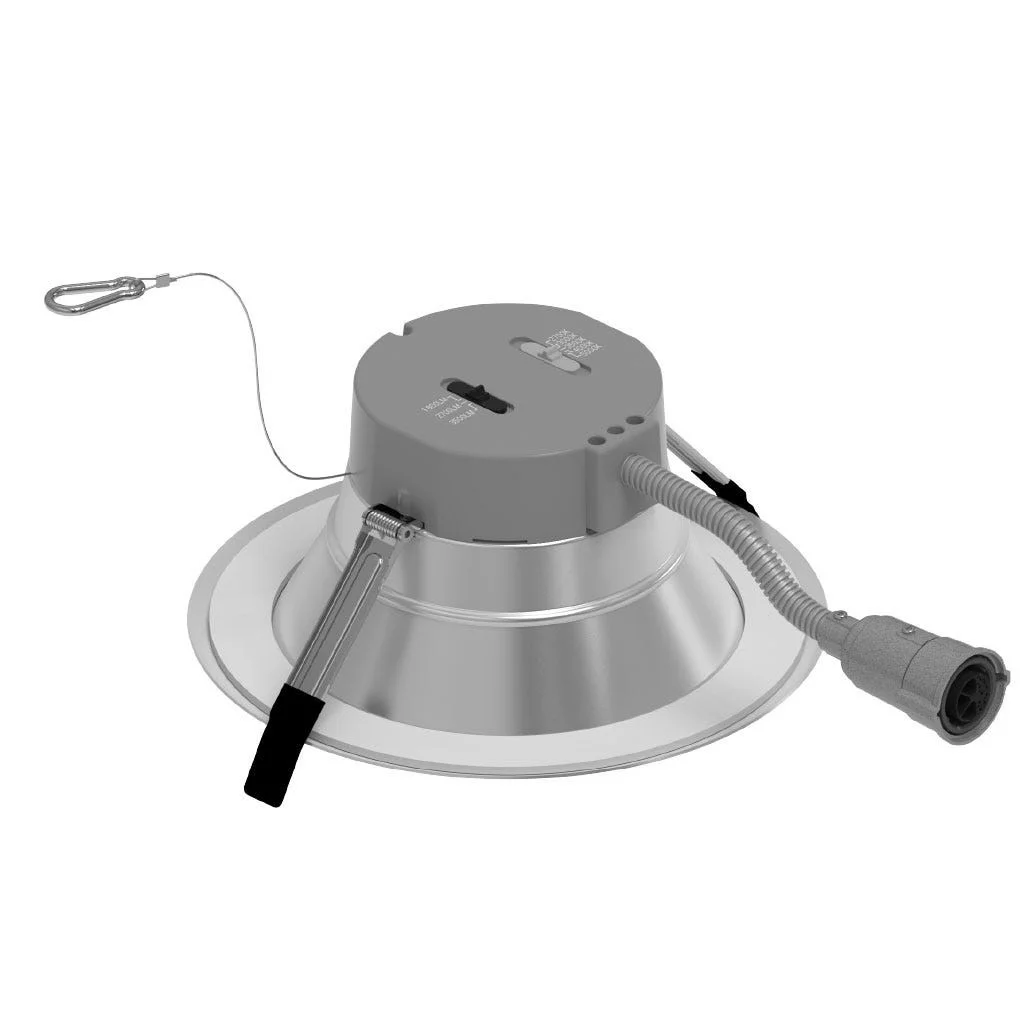

The Halco CDLEM Retrofit Commercial Downlight is a flexible 8″ LED solution designed for modern commercial retrofit projects that need performance, visual comfort, and emergency-ready capability. As part of Halco’s CDL family, this model combines field-selectable lumen output and CCT with broad dimming compatibility to simplify specification and installation.
Key Features and Benefits

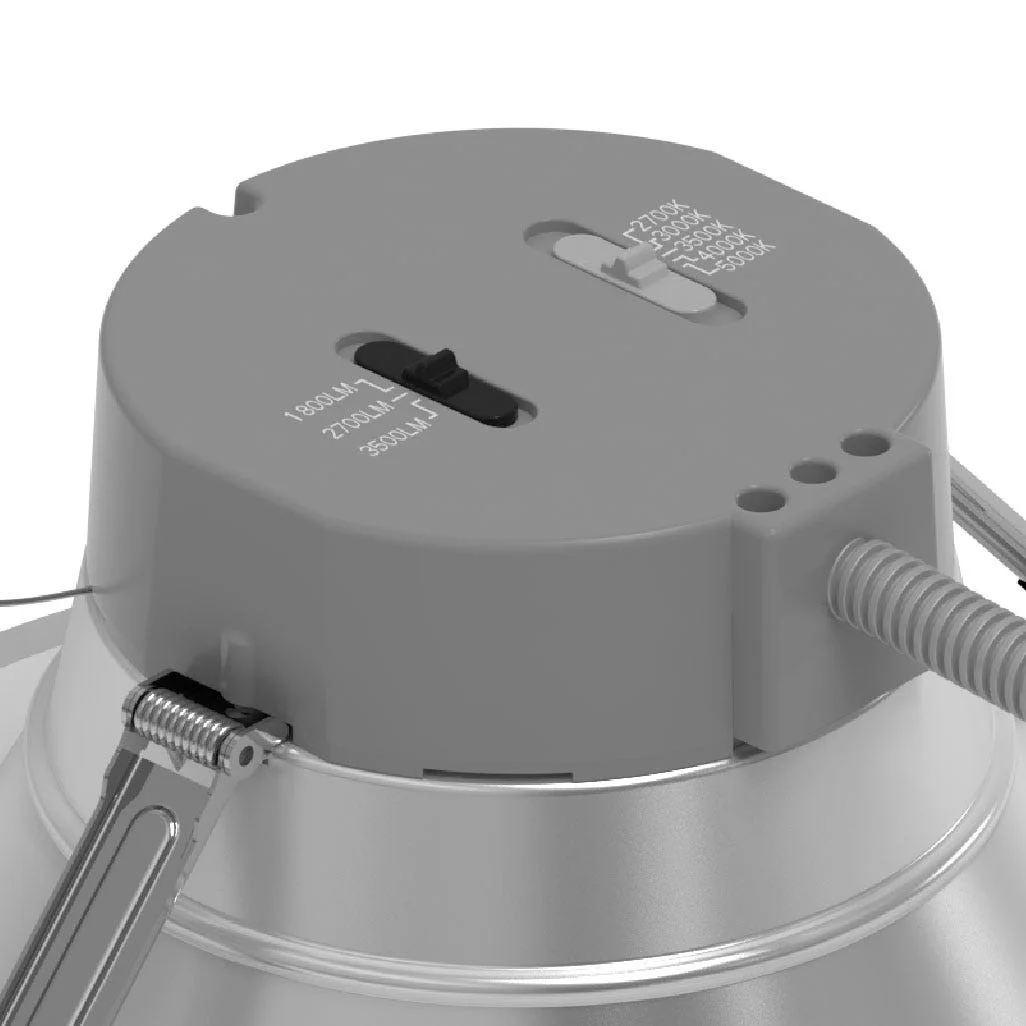

- Field-adjustable light levels and CCT let you tune output on-site for changing space requirements.
- Dual-dimming driver supports both 0-10V and TRIAC/ELV controls, reducing compatibility concerns during retrofits.
- Emergency battery-ready configuration supports integral backup operation when paired with the CDLEM-JB accessory.
- Haze reflector with white flange delivers a clean architectural appearance for commercial interiors.
- Certified for demanding projects with ETL Listed, FCC, RoHS, Energy Star, and Title 24 compliance.
- Backed by a 5-year limited warranty for long-term confidence.
Specifications
- Lumen Output: 1800/2700/3500
- Wattage: 17W/25W/31W
- Voltage: 120-277V, 50/60Hz
- Color Temperature: 2700K/3000K/3500K/4000K/5000K
- CRI: 90+
- Beam Angle: 80° ± 10°
- Power Factor: 0.9
- Rated Life (L70): 50,000 hours
- Operating Temperature: -4°F to 104°F (-20°C to 40°C)
- Construction: Spun aluminum haze reflector with diffused textured lens
- Environment: IC rated, air tight, wet location, IP65
- Weight: 2.0 lbs
Common Uses
Ideal for office parks, commercial buildings, maintenance facilities, schools, universities, and big-box retail spaces where efficient, selectable, and code-compliant recessed lighting is required.
