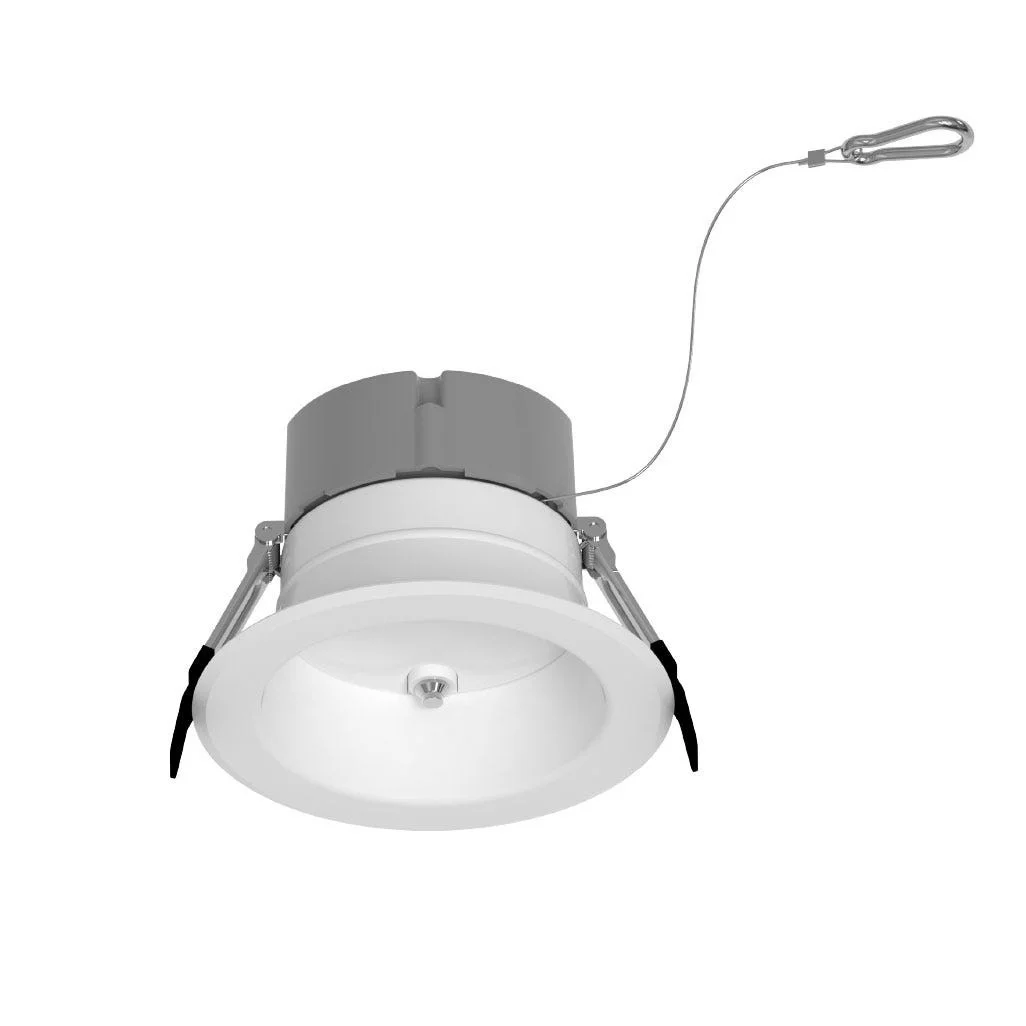

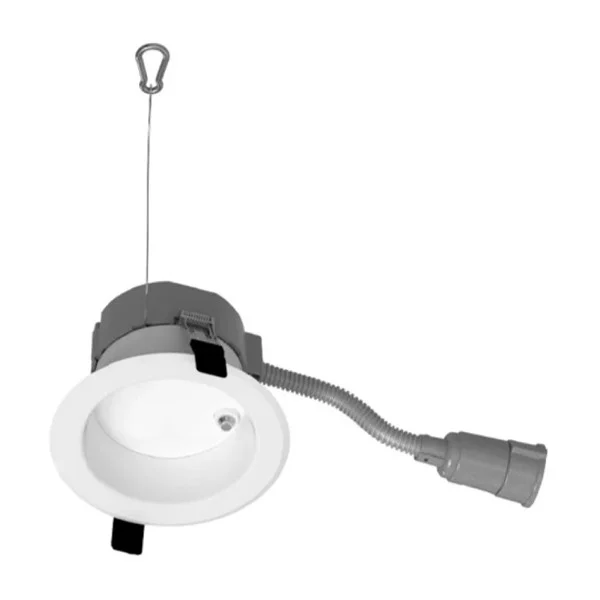

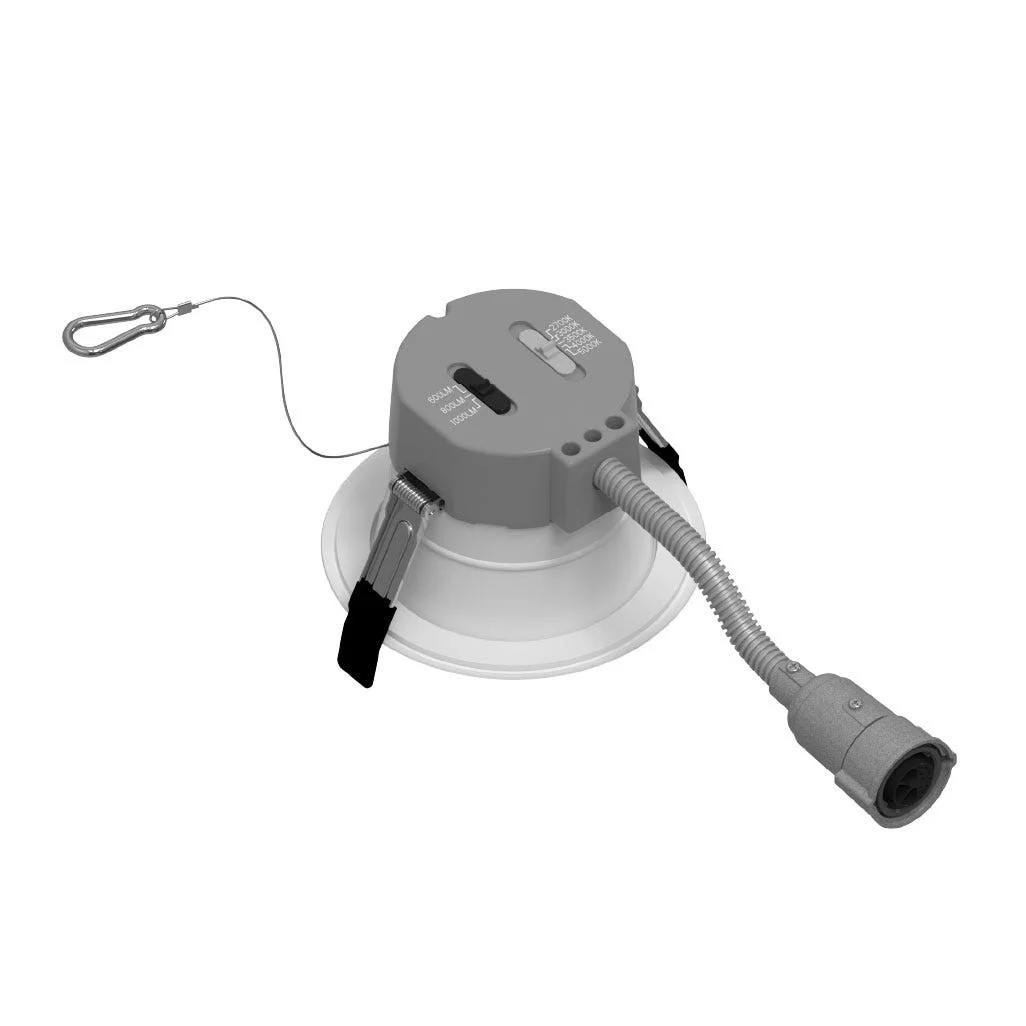

Halco’s CDLEM Retrofit Commercial Downlight delivers flexible, code-friendly performance for modern renovation and new-construction projects. As part of Halco’s CDL family, this 4″ model combines field-selectable light levels and CCT with emergency battery backup compatibility for dependable illumination in critical spaces.
Key Features and Benefits

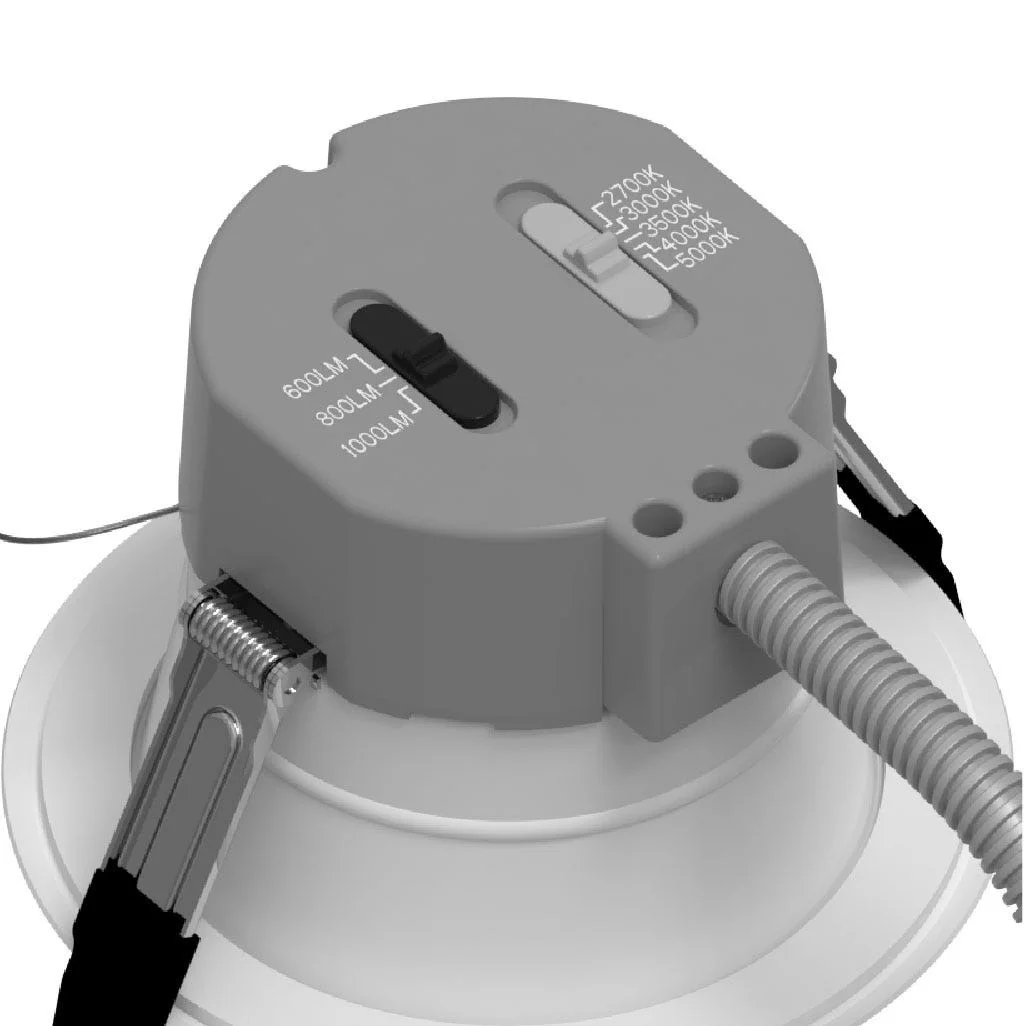

- Field-selectable output and CCT simplify stocking and on-site commissioning.
- Dual-dimming driver supports both 0-10V and TRIAC/ELV controls for broad compatibility.
- Emergency battery backup-ready design with quick-connect architecture streamlines life-safety integration.
- High color quality (90+ CRI) improves visual comfort and material appearance.
- Rated for wet locations and built for IC/air-tight applications to expand installation options.
- Backed by ETL Listed, FCC, Energy Star, RoHS, Title 24 compliance, and a 5-year limited warranty.
Specifications
- Lumen Output: 600|800|1000
- Wattage: 7W|9W|11W
- Voltage: 120-277V
- Color Temperature: 2700K|3000K|3500K|4000K|5000K
- Beam Angle: 80°±10°
- Power Factor: 0.9
- Rated Life (L70): 50000 hours
- Operating Temperature: -4°F to 104°F
Common Uses
Ideal for office parks, commercial buildings, maintenance facilities, educational campuses, and big-box retail environments where adaptable light levels, dimming flexibility, and emergency-ready operation are required.
