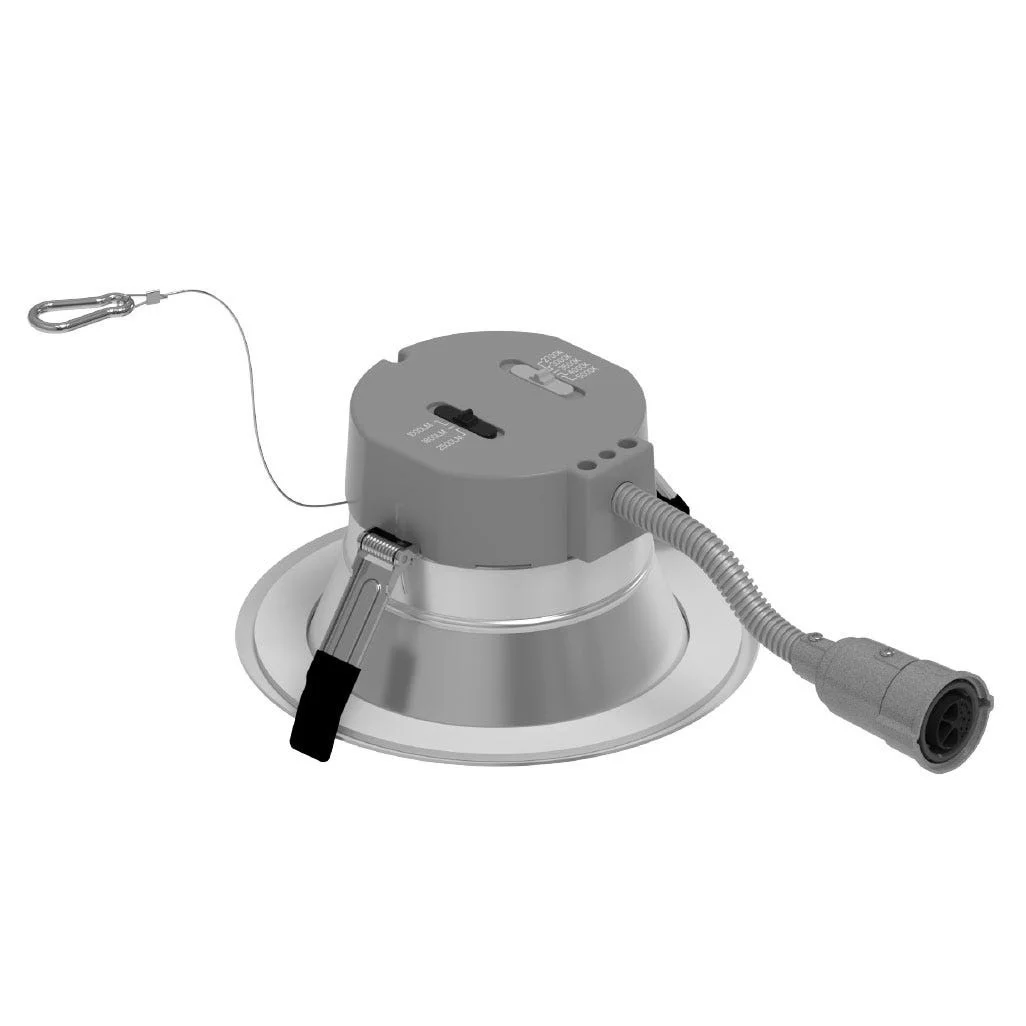

The Halco CDLEM Retrofit Commercial Downlight is a versatile 6″ solution designed for modern commercial retrofit projects that need performance, flexibility, and clean aesthetics. As part of Halco’s CDL family, this emergency battery-ready model supports field-selectable light output and color temperature to simplify specification and installation.
Key Features and Benefits

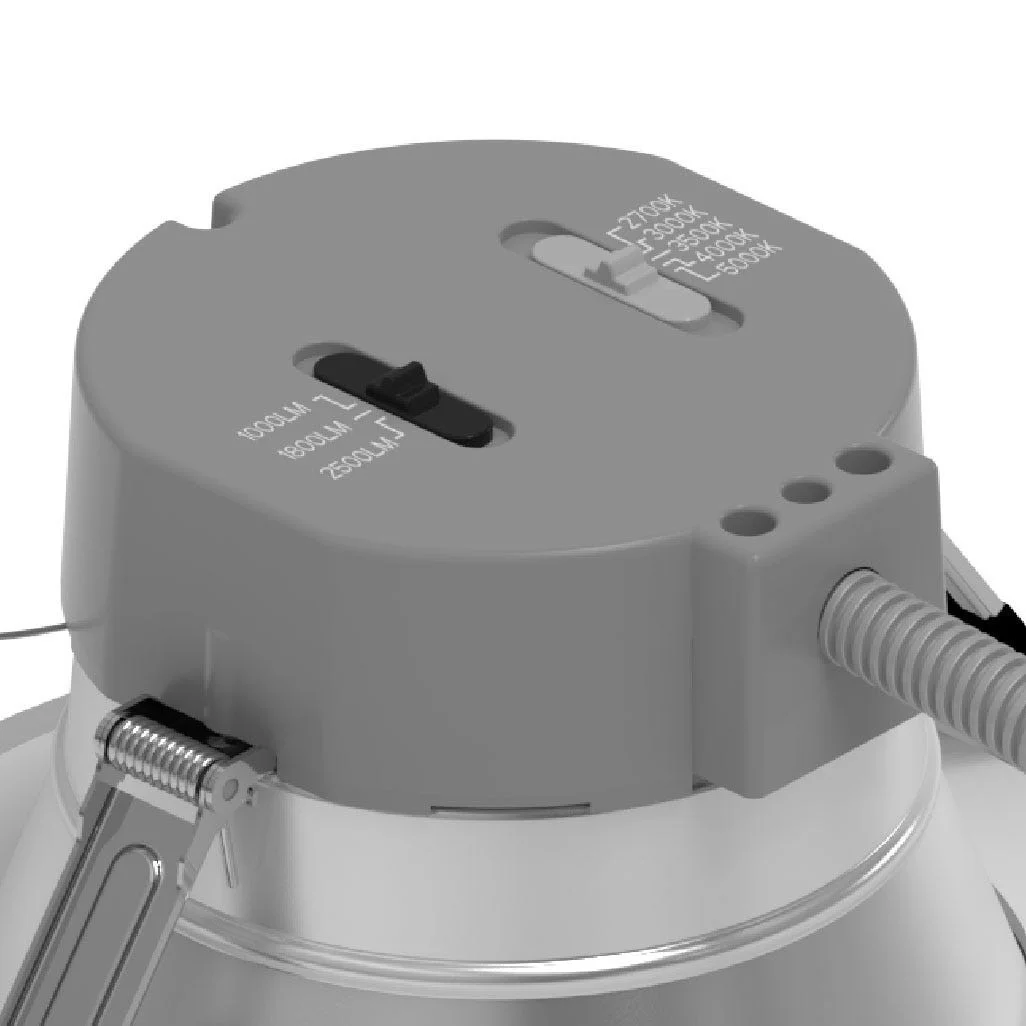

- Field-adjustable lumen packages and 5-CCT switching reduce SKU complexity and speed project deployment
- Dual-protocol dimming supports both 0-10V and TRIAC/ELV controls from a single integrated driver
- Emergency battery-ready configuration supports integral backup capability for life-safety planning
- Haze reflector with white flange delivers a refined architectural appearance for commercial interiors
- Wet-location and IP65 rated construction supports demanding environments
- Backed by a 5-year limited warranty with ETL, Energy Star, FCC, RoHS, and Title 24 compliance
Specifications
- Lumen Output: 2610|2673|2731|2764|2703
- Wattage: 22W
- Voltage: 120-277V
- Color Temperature: 2700K|3000K|3500K|4000K|5000K
- CRI: 90
- Beam Angle: 80°±10°
- Power Factor: 0.9
- Frequency: 50/60
- Operating Temperature: -4°F to 104°F
- Rated Life (L70): 50000 hours
- Weight: 1.5 lbs
Common Uses
Ideal for office parks, commercial buildings, maintenance facilities, educational campuses, and big-box retail spaces where controllable light levels, selectable CCT, and code-compliant performance are required.
