Halco’s CDLEM Retrofit Commercial Downlight delivers a modern, field-configurable solution for large-aperture recessed applications. As part of Halco’s CDL family, this 10″ model combines selectable light output and CCT with emergency battery-ready capability, making it a versatile choice for commercial retrofit projects.
Key Features and Benefits

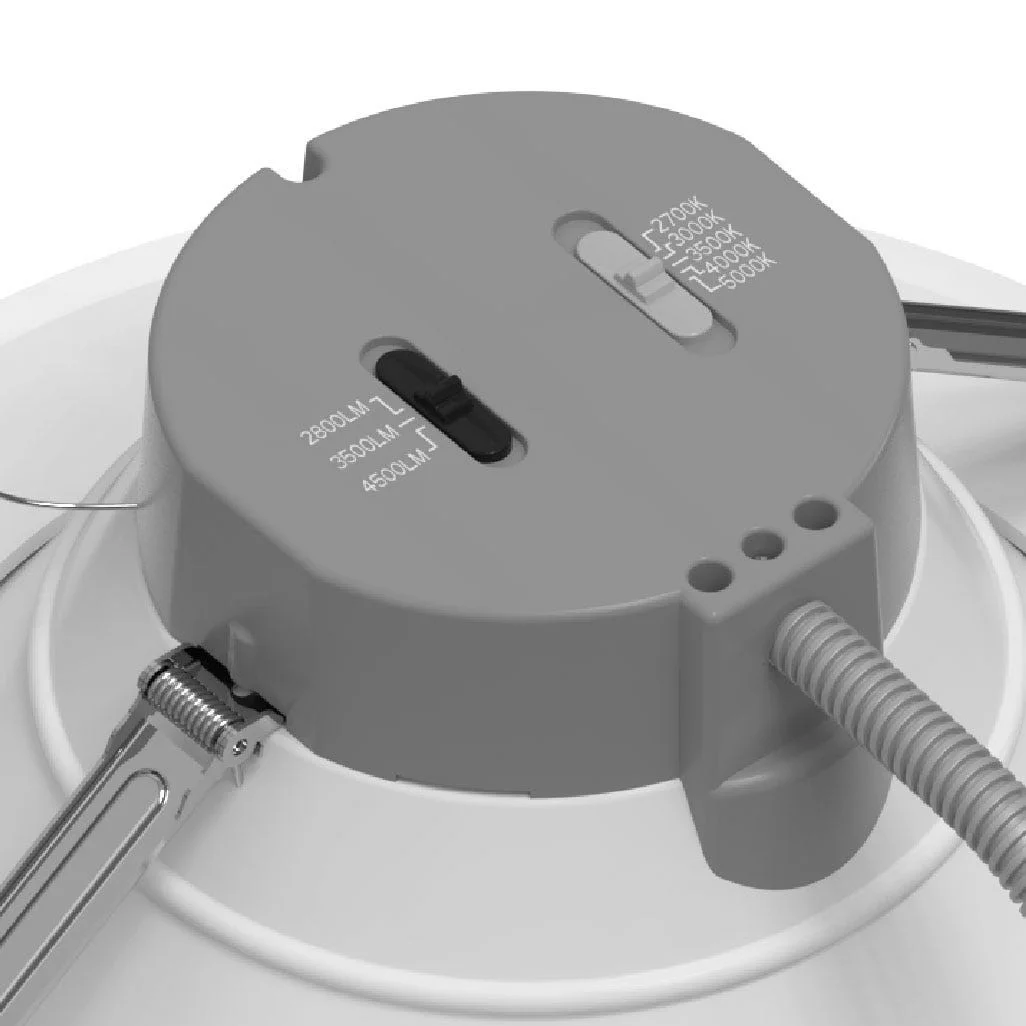

- Field-selectable lumen packages and five CCT options simplify stocking and on-site configuration.
- Dual-protocol dimming supports both 0-10V and TRIAC/ELV controls from one integrated driver.

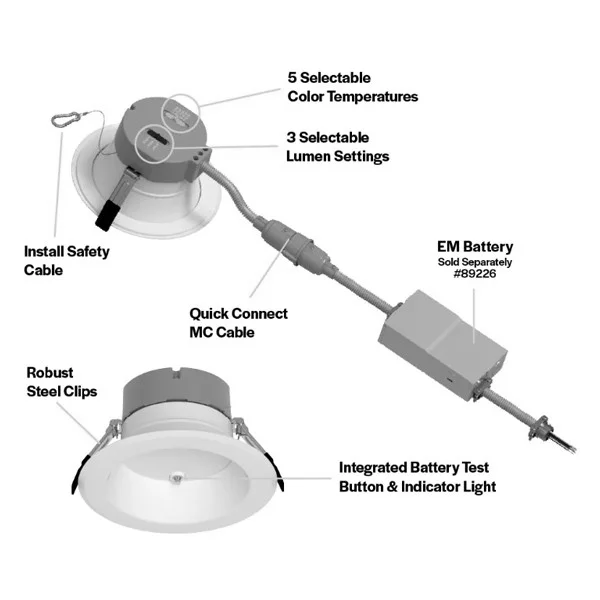

- Emergency battery-ready design supports quick-connect backup integration for code-driven projects.
- Wet-location and IP65 construction supports demanding indoor and exterior-soffit environments.
- High color quality with 90+ CRI improves visual comfort and material appearance.
- Backed by a 5-year limited warranty and certified to ETL, Energy Star, FCC, RoHS, and Title 24 requirements.
Specifications
- Lumen Output: 2800|3500|4500
- Wattage: 25W|31W|38W
- Voltage: 120-277V
- Color Temperature: 2700K|3000K|3500K|4000K|5000K
- CRI: 90
- Beam Angle: 80°±10°
- Power Factor: 0.9
- Frequency: 50/60
- Rated Life (L70): 50000
- Operating Temperature: -4°F to 104°F
- Weight: 2.2 lbs
- Housing Material: Powder Coated Steel (White) reflector
- Lens Material: Diffused, Textured Lens
Common Uses
Ideal for office parks, commercial buildings, maintenance facilities, schools, universities, and big-box retail spaces where flexible output, reliable dimming compatibility, and emergency-ready infrastructure are required.
