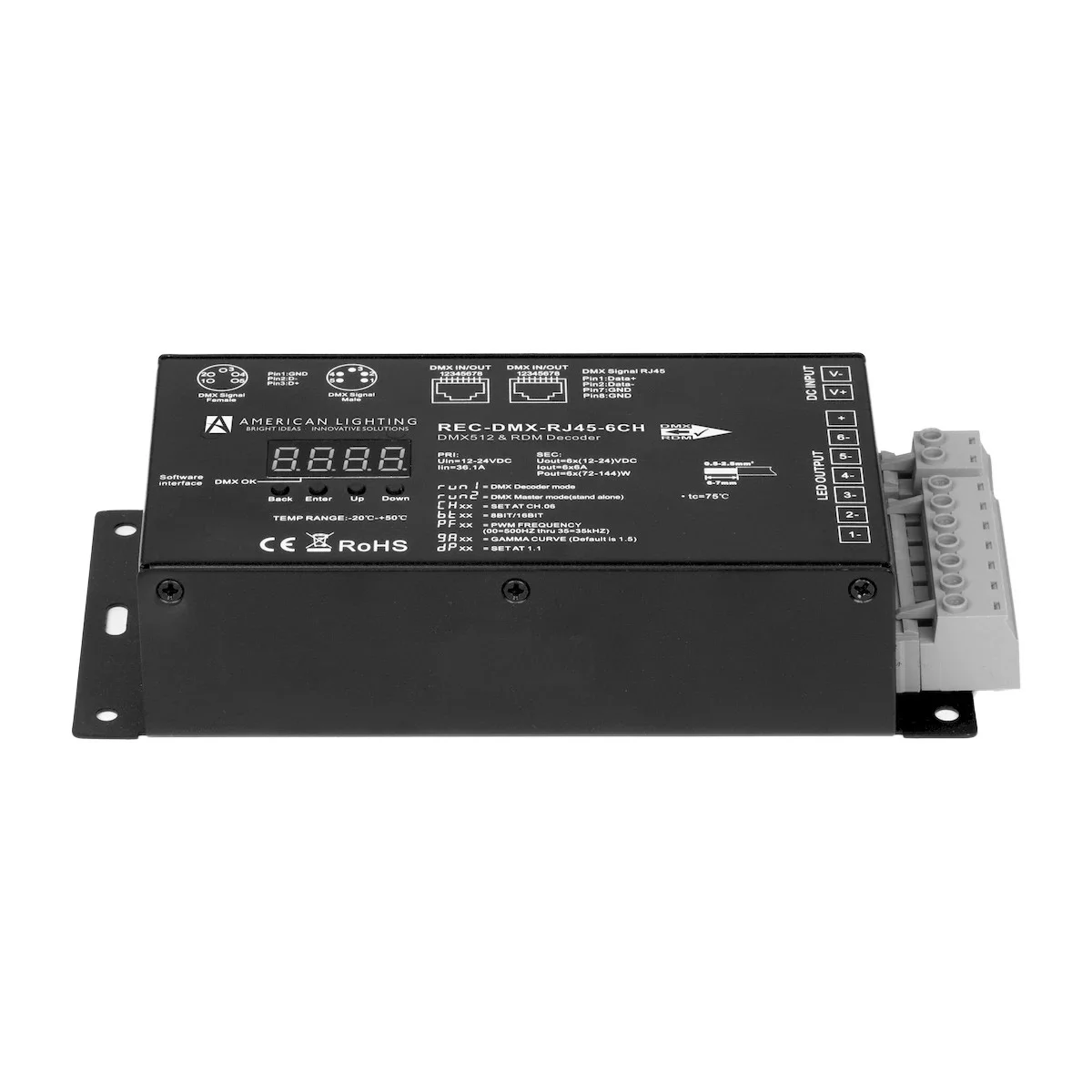

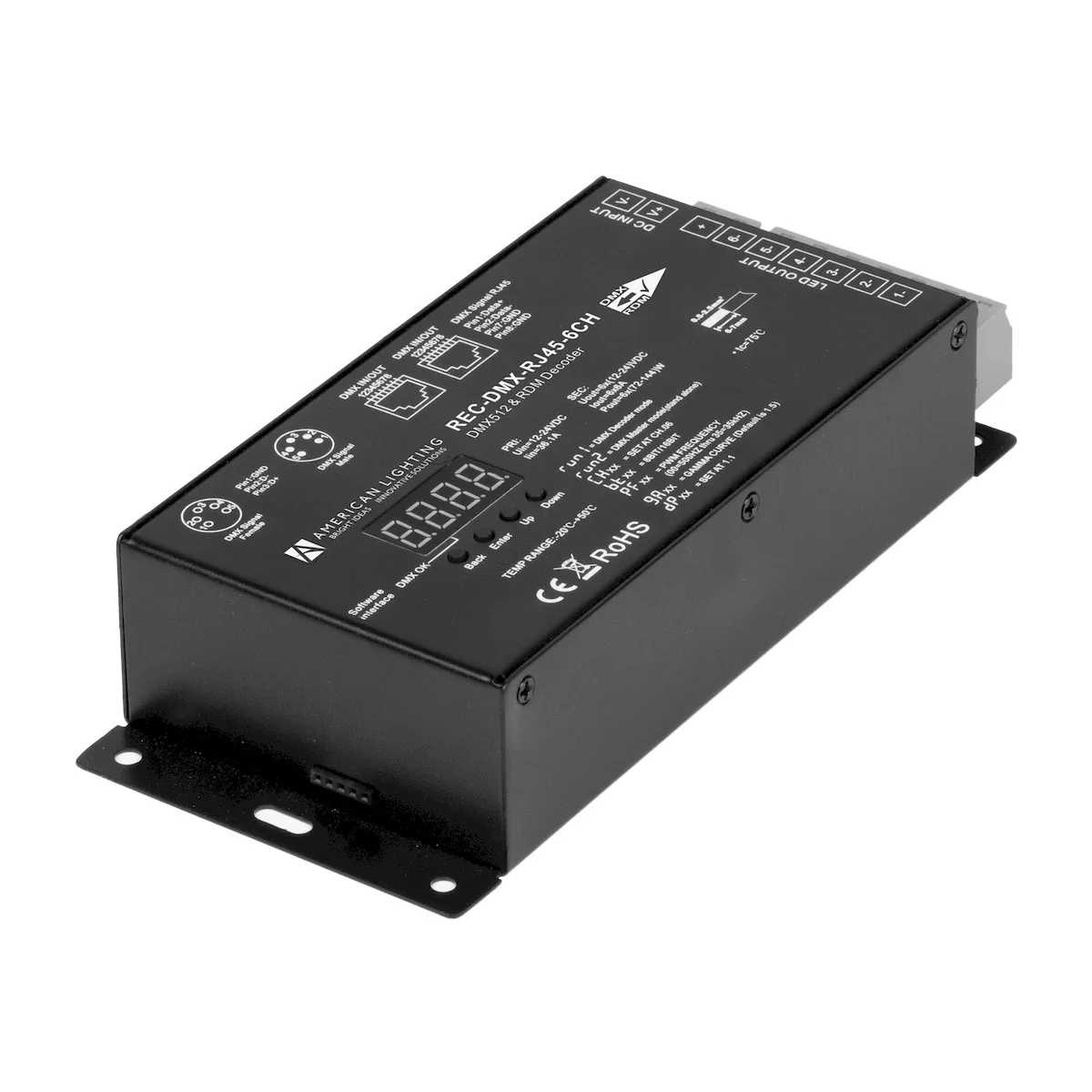

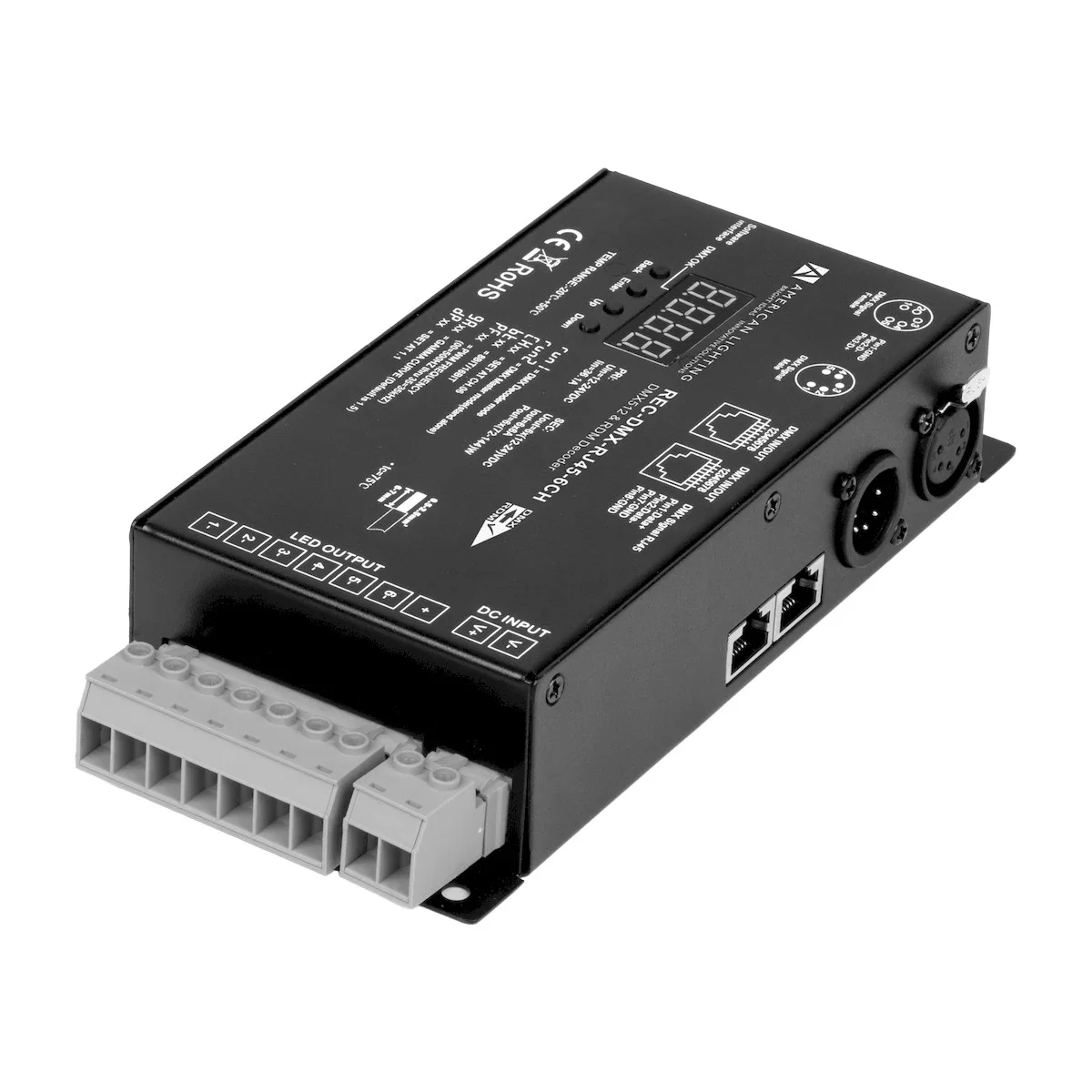

The Proluxe 6CH DMX Decoder is a professional control interface designed to translate DMX512 RDM signals for multi-channel LED tape light applications. As part of Proluxe’s controls lineup, it provides flexible wiring options and precise dimming performance for advanced lighting installations.
Key Features and Benefits
- Supports DMX512 RDM protocol for reliable, intelligent lighting control integration
- Flexible connectivity with RJ45, XLR5, and direct-wire compatibility to simplify system design
- Fine dimming control with selectable 8-bit or 16-bit PWM resolution and adjustable gamma curve (0.1-9.9)
- Wide PWM frequency adjustment from 500Hz to 30KHz for optimized performance across LED loads
- Durable metal housing with onboard digital display for quick setup and status visibility
- FCC and RoHS compliant design backed by a 3-year limited warranty
Specifications
- Input Voltage: 12-24VDC
- Input Current: 36.1A
- Output Current: 6x6A
- Output Wattage: 6x(72-144)W
- Channels: 6
- Storage Temperature: -4°F to 122°F (-20°C to 50°C)
- Ambient Temperature: -4°F to 122°F (-20°C to 50°C)
- Operating Temperature: 167°F (75°C)
- Finish: Black
- Dimensions: 7.39″ x 3.35″ x 1.61″
Common Uses
Ideal for architectural and entertainment LED tape light systems, including RGB/RGBW/tunable white installations in commercial interiors, hospitality spaces, retail displays, and custom accent lighting projects requiring DMX-based multi-channel control.
