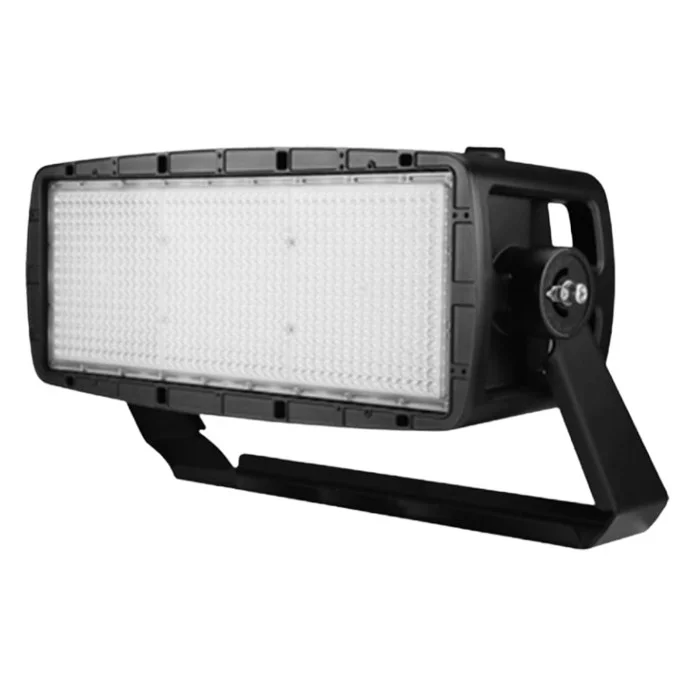

The Portor SPL Sports Light series is a high-performance outdoor lighting solution engineered for athletic venues that demand powerful, uniform illumination. Built for high-voltage applications, this fixture combines selectable wattage flexibility with rugged construction for dependable long-term operation. It is a key option in Portor’s lineup for sports and large-area lighting projects where visibility and durability are critical.
Key Features and Benefits
- Selectable power settings (400W/500W/600W) let you tune light levels for different field and court requirements.
- High-output performance delivers up to 91,124 lumens for strong visibility across large play areas.
- Rugged die-cast aluminum body with gasketed design supports reliable outdoor operation in demanding weather.
- 0-10V dimming capability enables energy-saving controls and adaptable light output.
- Certified for quality and compliance with UL Listed, DLC Premium, FCC, CE, and RoHS credentials.
- Backed by a 5-year limited warranty for added project confidence.
Specifications
- Wattage: 400W/500W/600W
- Input Voltage: 347-480V, 50/60Hz
- Color Temperature: 5000K (model), series available in 3000K/4000K/5000K
- Delivered Lumens: 67,386 / 79,889 / 91,124
- Efficacy: 168 / 159 / 151 lm/W
- CRI: 70+
- Beam Angle: 35°
- Power Factor: >0.9
- THD: ≤20%
- Operating Temperature: -40°F to 113°F
- Ingress Protection: IP65, wet location
- Rated Life: L70 50,000 hours
- EPA Rating: 2ft²
- Net Weight: 44 lbs
Common Uses
Ideal for sports fields, stadiums, arenas, and outdoor courts where high-intensity, uniform lighting is needed for players, officials, and spectators during practices, games, and events.
