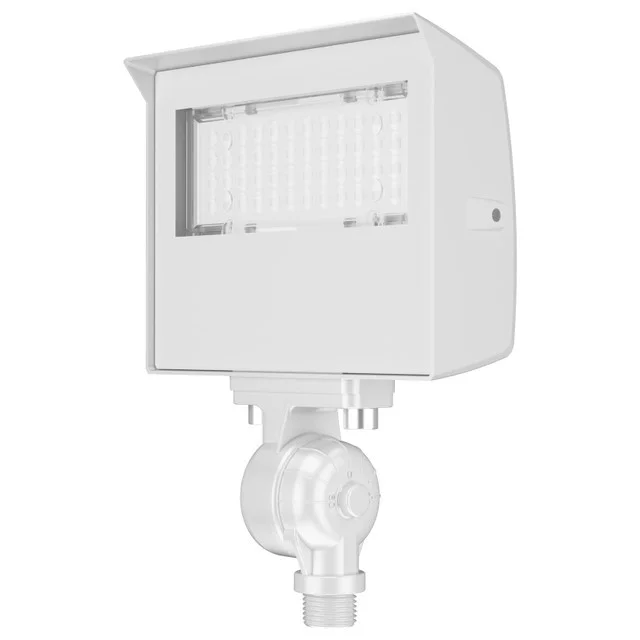

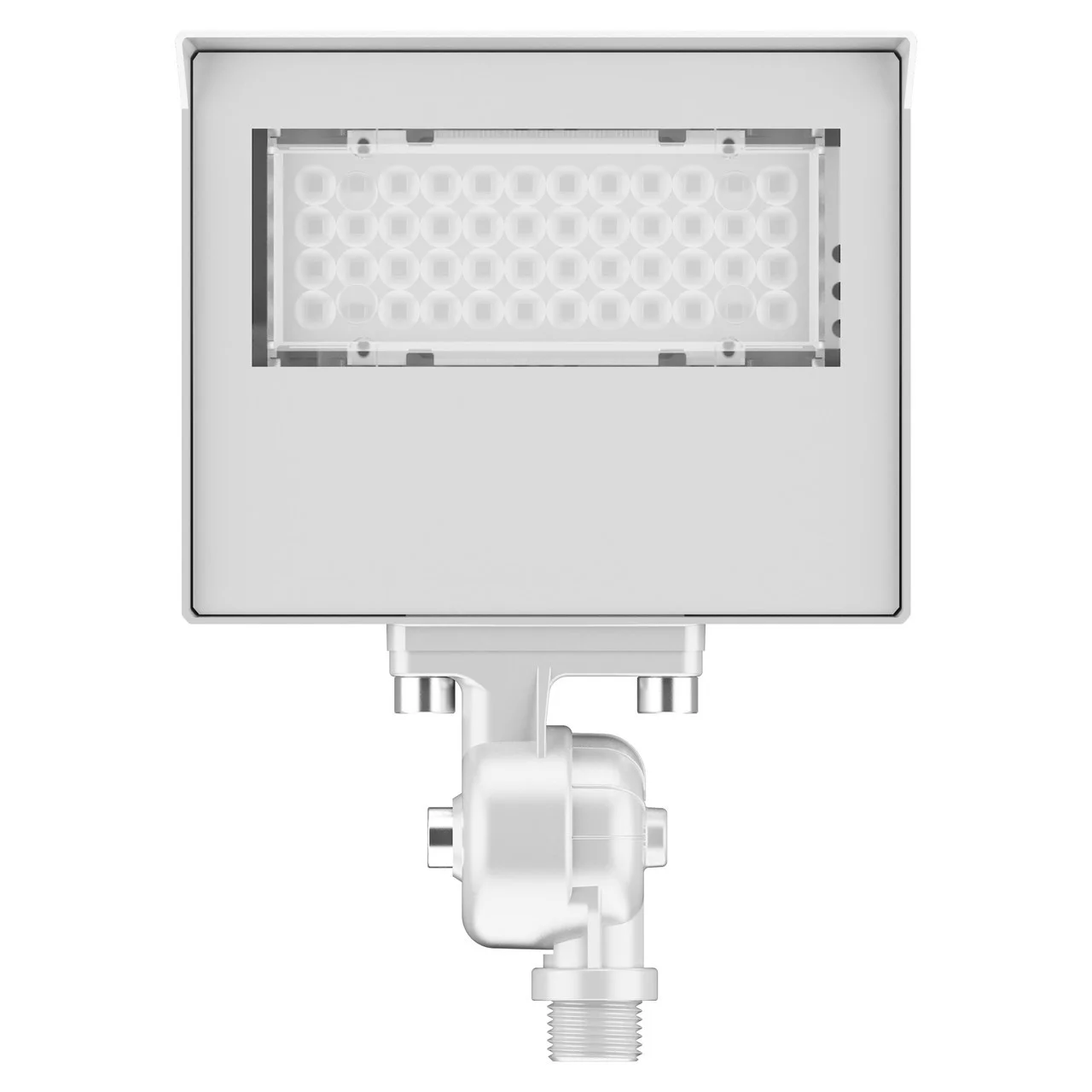

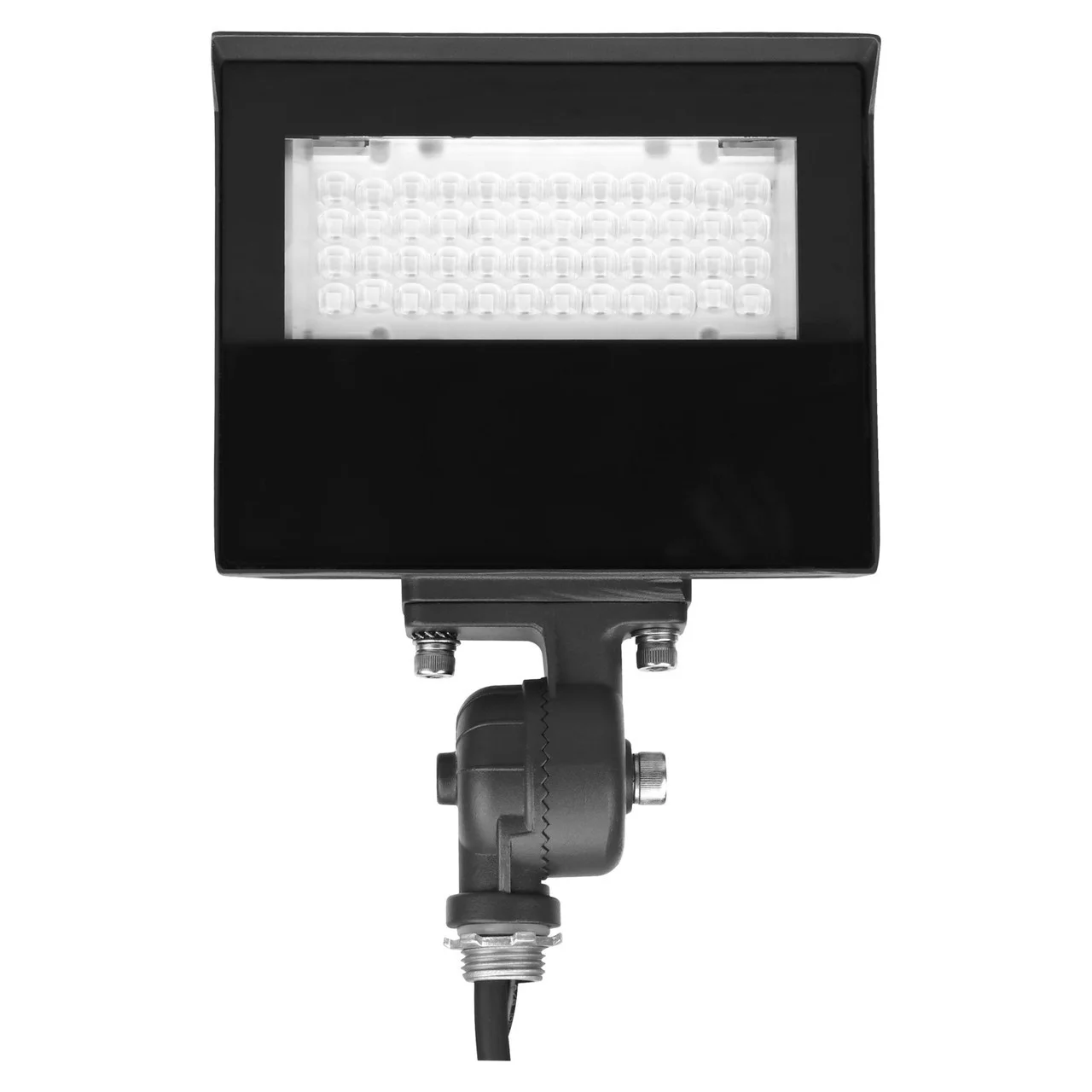

The ESL Flood Light Series in the 1020W platform is a compact, high-performance exterior luminaire designed for flexible field configuration. As part of ESL Vision’s 2nd generation flood lineup, it combines selectable wattage, CCT, and beam spread to simplify stocking while covering a wide range of site lighting needs.
Key Features and Benefits
- Field-selectable output with four wattage steps to match light levels and reduce overlighting
- Tri-CCT adjustability (3000K/4000K/5000K) for warm-to-daylight visual preference
- Selectable optics (55°/75°/90°) to tune throw and coverage for different mounting heights
- Integrated on/off photocell for automatic dusk-to-dawn control and energy savings
- Durable die-cast construction built for demanding outdoor environments
- 0-10V dim-to-off capability for advanced control integration
- DLC Premium and UL Certified design with a 5-year warranty for long-term confidence
Specifications
- Lumen Output: up to 3000
- Efficacy: up to 150 lm/W
- Input Voltage: 120-277V
- Frequency: 50/60 Hz
- CRI: >80
- Operating Temperature: -40°F to 122°F (-40°C to 50°C)
- Rated Life (L70): 165000 hours (TM-21 calculated)
- Dimensions: 6.3″ x 5.2″ x 2.7″
- Weight: 1.98 lbs
- Default Setting: 20W, 5000K, 90° beam
Common Uses
Ideal for building facades, landscape accents, signage, loading areas, walkways, and general-purpose security lighting in commercial and industrial outdoor applications.
