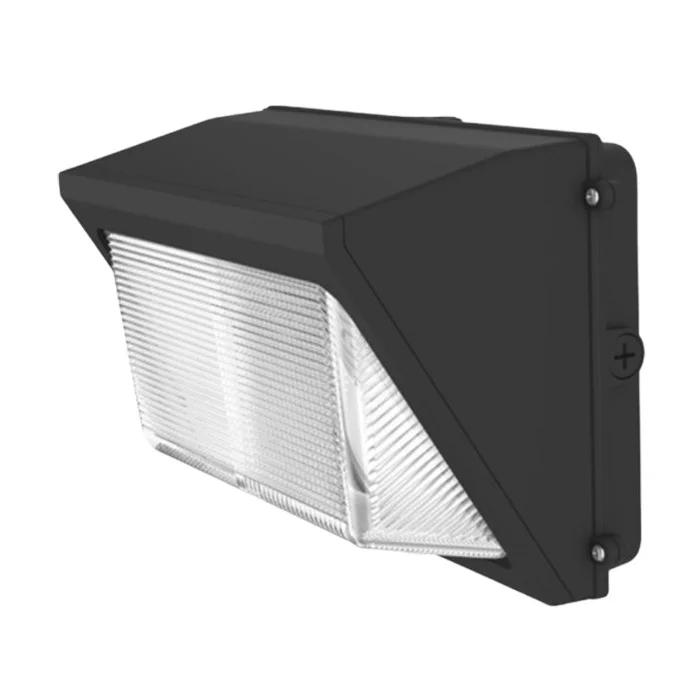

The Portor PT-WPH-3CP-4 Series is a versatile half cut-off wall pack built for dependable outdoor perimeter and security lighting. Designed as a flexible solution in Portor’s commercial exterior lineup, it combines field-selectable wattage and CCT in one durable fixture. Its robust construction and wet-location design make it a strong fit for demanding site conditions.
Key Features and Benefits
- 3-step wattage selectability (45W/60W/75W) helps match light levels while reducing overlighting and energy use.
- Selectable 3000K/4000K/5000K CCT allows warmer or cooler output to suit different exterior applications.
- Integrated photocell supports automatic dusk-to-dawn operation for improved convenience and energy savings.
- Die-cast aluminum housing with powder-coated finish and silicone sealing delivers long-term durability in outdoor environments.
- Borosilicate glass lens and precision optics improve distribution while minimizing glare.
- Certified to UL, DLC, FCC, and RoHS standards with a 5-year limited warranty for confidence in commercial installations.
Specifications
- Voltage: 100-277V
- Dimming: 0-10V
- CRI: 70
- Frequency: 50/60Hz
- Power Factor: >0.9
- THD: ≤20%
- Ingress Protection: IP65
- Operating Temperature: -40°F to 113°F
- Delivered Lumens: 6210-11175 (model and setting dependent)
- Efficacy: 128-159 lm/W
- Rated Life: L70 50,000 hours
Common Uses
Ideal for warehouses, walkways, building entrances, parking areas, retail exteriors, and shopping mall perimeters where reliable, weather-resistant wall-mounted illumination is required.
