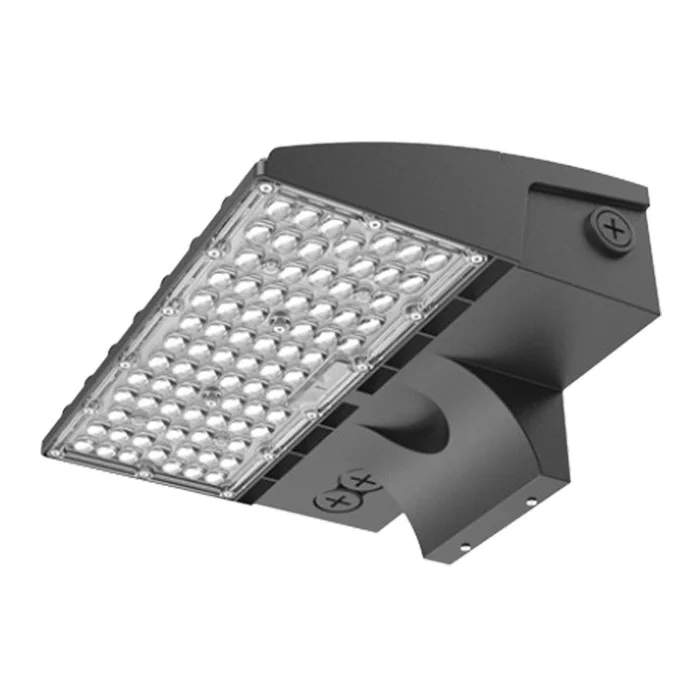

The Portor PT-WPA Series Architectural Wall Pack is a rugged outdoor luminaire built for dependable performance in demanding commercial and industrial environments. This MW configuration combines field-selectable wattage and CCT with an integrated photocell, making it a flexible and energy-conscious solution in the Portor lineup.
Key Features and Benefits
- Triple-output flexibility with selectable 36W, 48W, or 60W settings to match site lighting needs.
- 3CCT adjustability (3000K/4000K/5000K) allows warm-to-cool tuning for different applications.
- Integrated dusk-to-dawn photocell automates operation and helps reduce unnecessary energy use.
- Die-cast aluminum body and PC lens deliver durability, thermal management, and controlled light distribution.
- Certified for safety and performance with UL Listed, DLC Premium, and RoHS compliance.
- Backed by a 5-year limited warranty for long-term project confidence.
Specifications
- Lumen Output: 5538-9322
- Voltage: 120-277V
- Dimming Type: 0-10V
- CRI: 80+
- Frequency: 50/60Hz
- Power Factor: >0.9
- IP Rating: IP65
- Rated Life (L70): >50000 hours
- Operating Temperature: -40b0F to 104b0F
- Dimensions: 12.4″ x 9.7″ x 6.14″
- Net Weight: 6 lbs
Common Uses
Ideal for processing workshops, storage warehouses, steel mills, toll booths, waiting areas, railway platforms, and other wet-location exterior or semi-exposed commercial spaces requiring reliable wall-mounted illumination.
