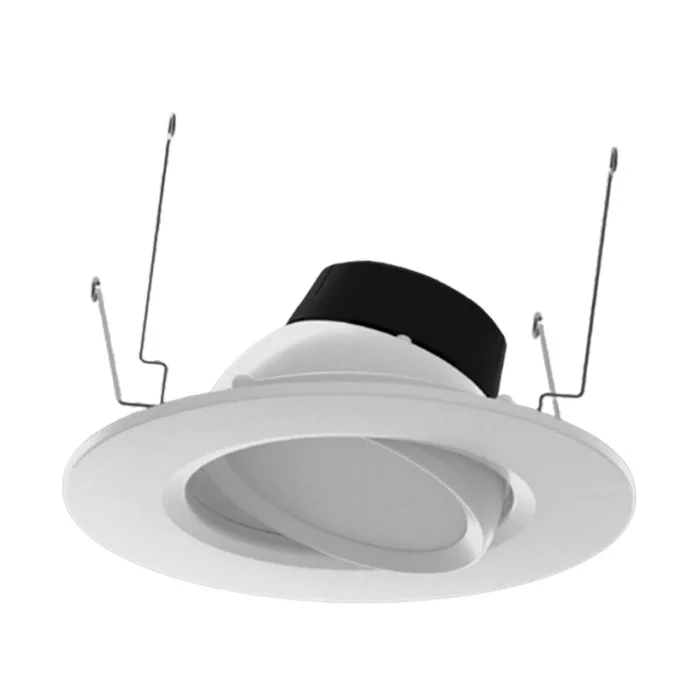

The Portor PT-DLR-G-2 Series retrofit gimbal downlight is a commercial-grade 6″ recessed solution designed for flexible directional lighting and fast field adaptability. With built-in 5CCT selection and strong optical performance, it helps contractors and facility teams standardize inventory while meeting varied project requirements. As a second-generation model in Portor’s lineup, it delivers dependable performance for new construction, remodel, and retrofit work.
Key Features and Benefits
- Selectable 5CCT tuning (2700K to 5000K) reduces SKU complexity and supports multiple ambiance needs
- Gimbal-style adjustable light output improves aiming for accent and task-focused applications
- Wet-location design expands use in moisture-prone areas and covered exterior environments
- ETL Listed, FCC compliant, Title 24 compliant, Energy Star, and Title 20 support code-driven projects
- Smooth phase-cut dimming compatibility for practical light-level control
- Backed by a 5-year limited warranty for long-term confidence
Specifications
- Wattage: 11W
- Input Voltage: 120V
- Frequency: 60Hz
- CRI: 90
- Delivered Lumens: 1125 (2700K), 1148 (3000K), 1173 (3500K), 1169 (4000K), 1160 (5000K)
- Efficacy: 102-107 lm/W
- Power Factor: >0.9
- THD: ≤20%
- Rated Life: L70 50,000 hours
- Dimensions: A 3.30″, B 2.90″, C 7.20″
- Construction: Die-cast aluminum housing and trim
- Finish: Architectural white
Common Uses
Ideal for commercial complexes, hospitality spaces, healthcare facilities, schools, shopping centers, industrial areas, and hotels where adjustable recessed lighting and selectable color temperature are required.
