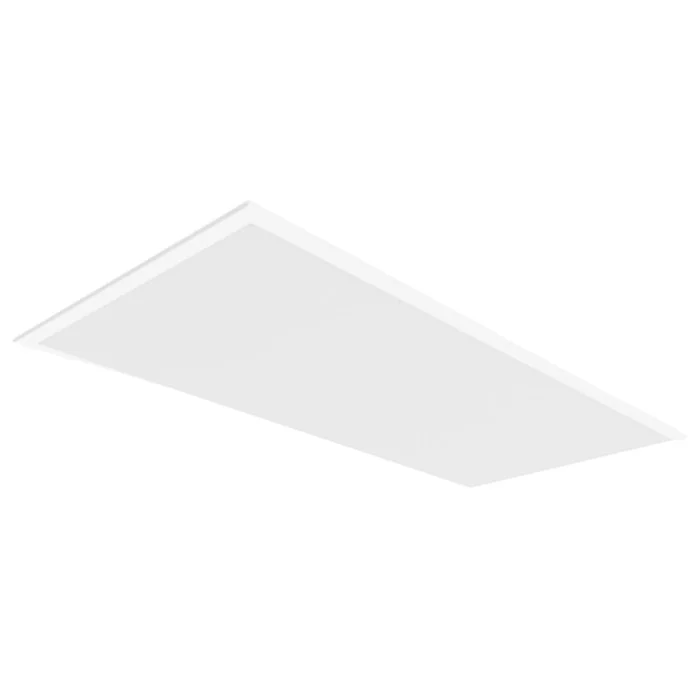

The Portor BLP-HO series is a high-output back-lit flat panel designed to deliver strong illumination, energy savings, and smooth dimming control in modern commercial spaces. This 2′ x 4′ configuration combines wattage and CCT selectability, making it a versatile core offering in Portor’s panel lineup.
Key Features and Benefits
- Selectable output with four wattage settings (41W/47W/51W/67W) for flexible light levels across projects
- 5-CCT field adjustability (3000K to 6500K) supports warm to daylight visual environments
- Continuous 0-10V dimming enables precise light control and additional energy optimization
- Uniform, low-glare back-lit optical system with frosted polystyrene lens for comfortable illumination
- Certified for performance and compliance with UL Listed, DLC Premium, and RoHS support
- Backed by a 5-year limited warranty for long-term commercial reliability
Specifications
- Lumen Output: 6090-10474
- Voltage: 120-277V
- CRI: 80+
- Frequency: 50/60Hz
- Power Factor: >0.9
- THD: ≤20%
- Rated Life: L70 >100,000 hours
- Operating Temperature: -4°F to 122°F
- IP Rating: IP40
- Fixture Dimensions: 47.8″ x 23.7″ x 1.4″
- Construction: Cold-rolled steel and extruded aluminum frame, matte white finish
Common Uses
Ideal for retail stores, schools, offices, markets, and restaurants, as well as other damp-location commercial interiors requiring efficient, uniform general lighting.
