Availability: 8 in stock

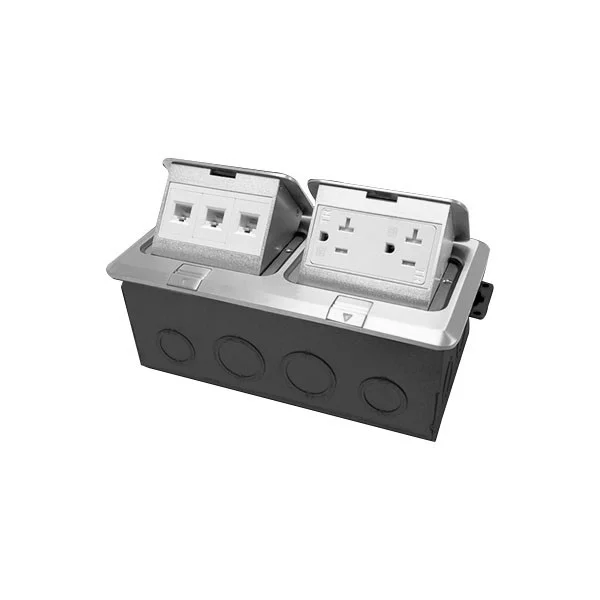

Pop-up floor box assembly with tamper-weather resistant decorator receptacle & triple RJ45 jacks module, available in brass or nickel-plated brass finish, rectangular cover type, up to 1″ dpeth adjustable height, 2 years limited warranty.
Minimum order qty. of 10 pcs.
DESCRIPTION
The 2-Gang Pop-up Floor Box Assembly is used for carpet and wood floors. Pop-up covers provide easy access to power and internet access and can be snapped closed when not in use. Kit assembly includes a metal floor box, two decorator duplex T&WR receptacles or one decorator duplex T&WR receptacle and RJ45 ports and a cover.
FEATURES
One 20A 125V Duplex Tamper & Weather Resistant Receptacles and RJ45 ports.
For use with carpet and wood floors. Also great for counter-top applications.
Steel floor box must be flush or attached to sub-floor prior to final installation.
Easy connection wiring accepts #12-10 AWG stranded and solid copper wire.
TESTING & CODE COMPLIANCE
Compliance with 2011 NEC Article 406.12 for tamper-resistant receptacles.
Compliance with 2011 NEC Article 314.27 for floor boxes.
All tamper resistant receptacles are UL listed.
SPECIFICATIONS
Cover Material: Brass(C) or Nickel-Plated Brass (S)
Cover Type: Rectangular
Cover size: 8-11/16” (220mm) x 4-13/16” (122mm)
Receptacle Rating: 20A 125VACBox:
Box Type: FB-12 4”x7-15/16”x3”
Box Material: Pre-Galvanized Steel
Knockout Size: ½” and ¾”
Adjustable Height: Up to 1” depth
Warranty: 2 Years
