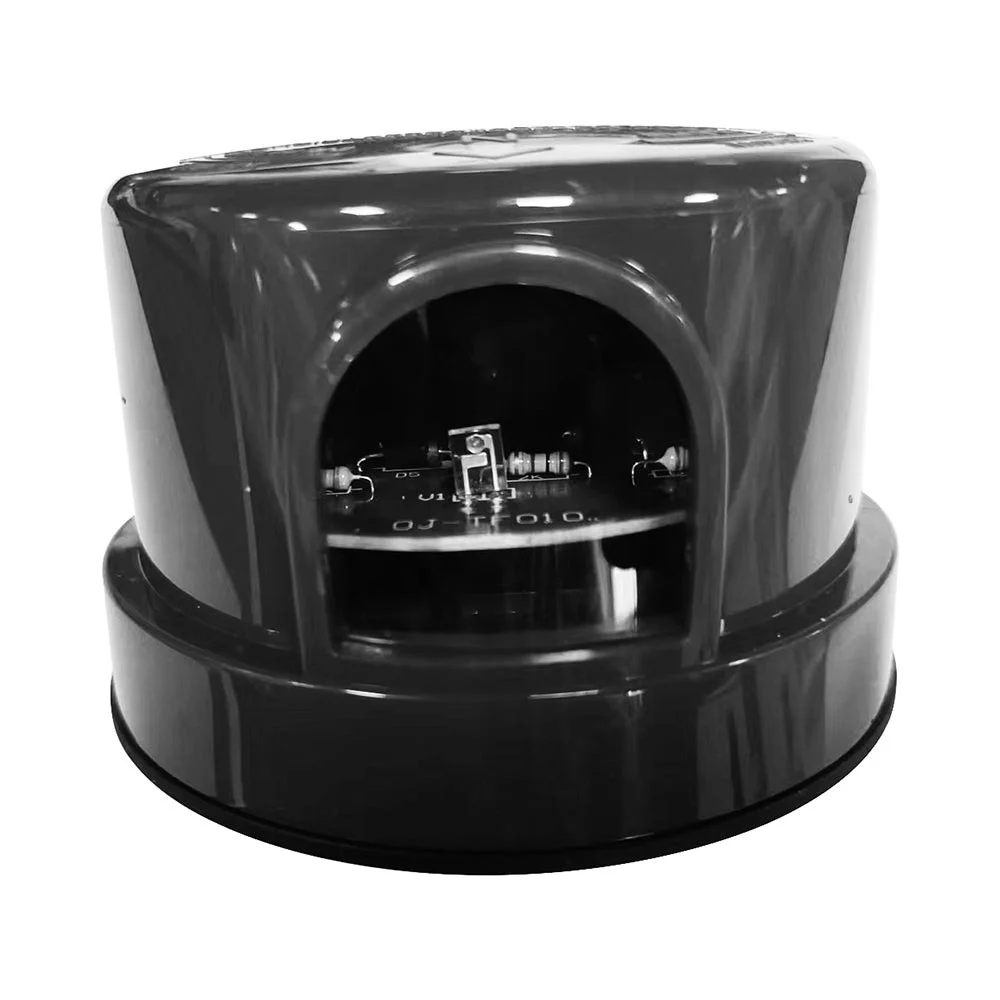

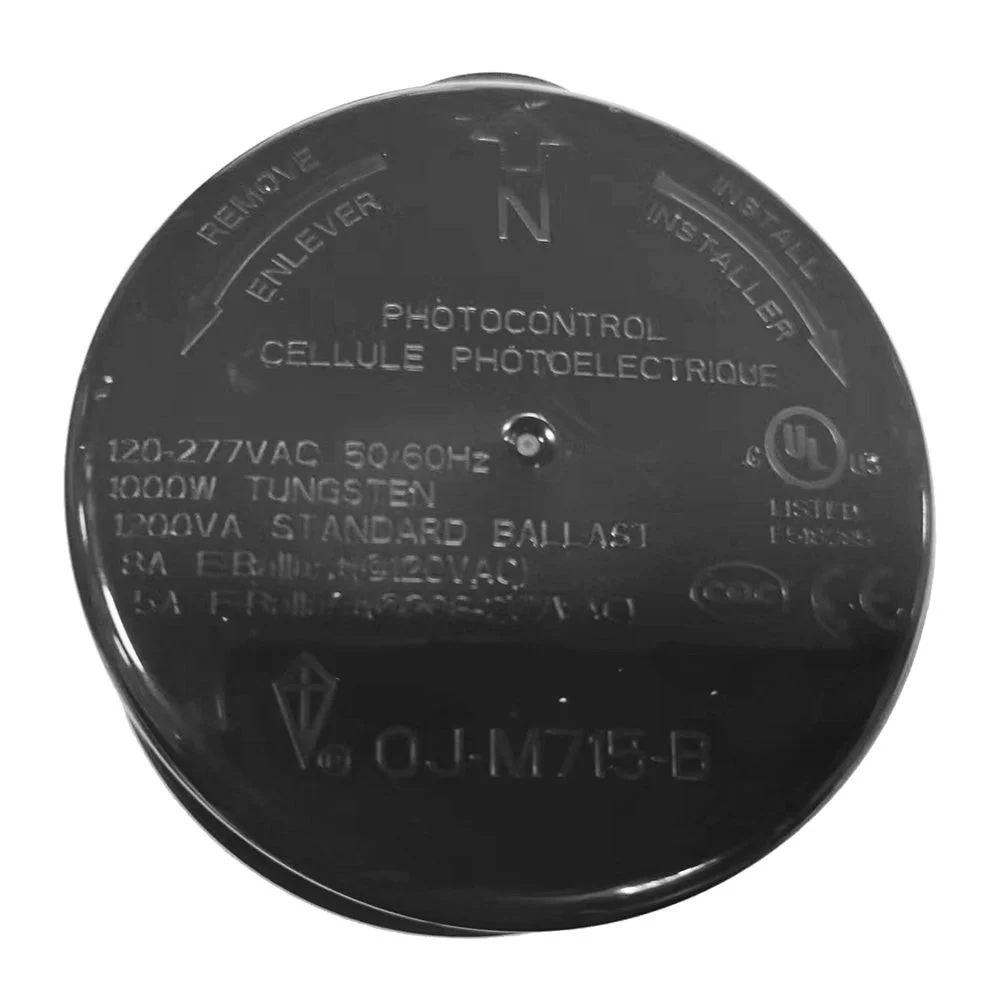

The OJ-M715-B Photocell Switch is a versatile light control solution, designed to enhance outdoor lighting systems with energy-saving automatic control. Compatible with standard dimming receptacles, this switch is ideal for various settings.
Key Features and Benefits
- Complies with ANSI C136.41, ANSI C136.10, UL773, and CSA C22.2 NO. 182.2-M1987 standards.
- Features light-sensor technology with power-off at 75 LUX and power-on at 25 LUX.
- Plug-in connection system for easy installation.
- IP66 rated for superior protection against dust and water.
- Durable housing made from high impact polypropylene with a UV stabilized polycarbonate window.
- Available in blue or customizable colors.
Specifications
- Tungsten load: 120Vac, 1000W; 208-277Vac, 1000W.
- Standard Ballast load: 120Vac, 1200VA; 208-277Vac, 1200VA.
- Electronic Ballast (LED) load: 120Vac, 8A; 208-277Vac, 5A.
- Working temperature: -40°C to 70°C.
- EU RoHS Compliant.
Common Uses
Ideal for street and area lighting, large area lighting, parking lot lights, and outdoor street light control connections.
