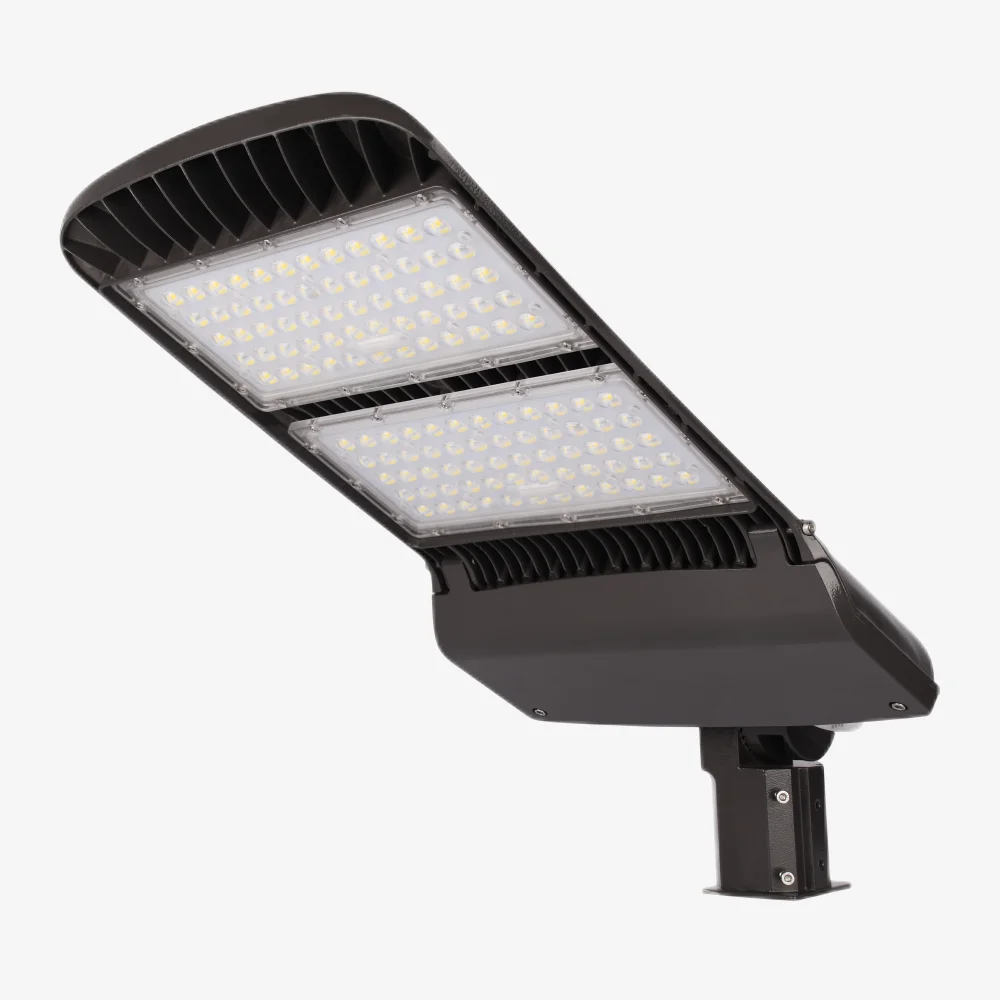

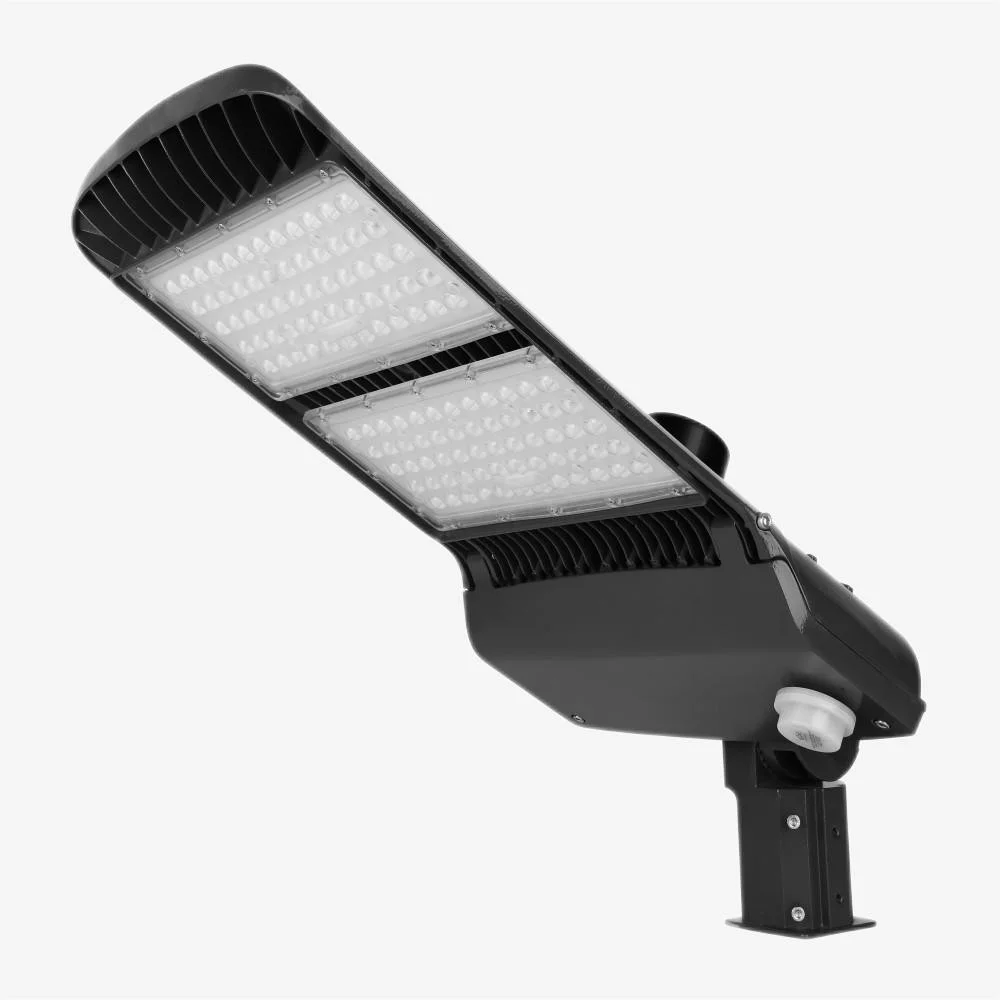

The NebuLite NBQL Series Area Light is a high-performance outdoor fixture engineered for dependable site illumination across commercial and municipal projects. As a core exterior lighting solution in NebuLite’s lineup, it combines high efficacy, rugged construction, and flexible optical and mounting configurations for broad application coverage.
Key Features and Benefits
- Selectable CCT design (3000K/4000K/5000K) helps tailor visibility and ambiance to site requirements.
- High 150 lm/W efficacy supports strong light output while reducing energy costs.
- Durable die-cast aluminum body with anti-static powder coat and polycarbonate lens enhances long-term outdoor reliability.
- Advanced controls support including 0-10V dimming, optional twist-lock photocell, and optional bi-level PIR occupancy sensing.
- Certified for broad project acceptance with UL Listed, DLC Standard, CE, FCC, and RoHS compliance.
- Backed by a 5-year warranty for added confidence in commercial installations.
Specifications
- Wattage: 200W
- Lumen Output: 30,138 lm (3000K), 30,336 lm (4000K), 30,578 lm (5000K)
- Input Voltage: 100-277V or 277-480V
- Input Frequency: 50/60 Hz
- CRI: >70
- Rated Life (L70): 100,000 hours
- Power Factor: >0.95
- Operating Temperature: -22°F to 122°F
- IP Rating: IP66
- Distribution: Type III, Type IV, Type V
- BUG Rating (T3 lens): B3-U0-G3
- Light Source: SMD 3030/5050 LEDs
Common Uses
Ideal for parking lots, plazas, roadways, campuses, and perimeter security lighting where high-output, weather-resistant, and controllable illumination is required.
