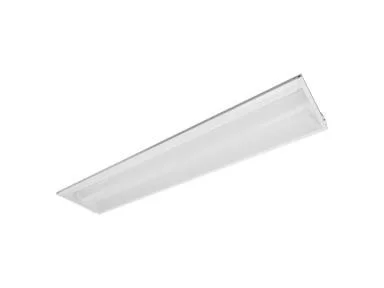

MaxLite’s enhanced series Troffer Retrofit Kit with Controls Ready feature is a cost-effective way to switch to LED technology. The kit can be easily installed in most existing troffers in less than 15 minutes. With its advanced ‘UniGlo’ optics that provides uniform brightness across the lens, this product gives a smooth glare-free illumination for high-end hospitality, commercial and retail applications.
Key Features and Benefits
- Power/Wattage: 13W
- Highest efficacy in the industry -150 Lumens per watt
- Controls Ready – can be paired with the new cMax controls nodes
- Quick installation of Troffer Retrofit Kit in existing luminaire without the need to break the ceiling plenum
- CCT Selectable: 3500K/4000K/5000K
- On EM mode, The fixture CCT will be set to 5000K
- On EM mode, the fixture output a minimum of 1050 lumens for 90 minutes, when fully charged
- Dimming: 0-10V – 10-100% Dimming Range with Dim-to-off capability
- Advanced ‘UniGlo’ optics provides uniform brightness across the lens
Specifications
- Size: 1’x4′
- Nominal Wattage: 13W
- Lumens Delivered: 2000, 2060, 2020
- Nominal Efficacy: 150-159 lm/W
- CRI: ≥80
- Color Temperature: 3500K, 4000K, 5000K
- Calculated L70 Lumen Maintenance: ≥100,000 Hrs
- Dimming Technology: 0-10V
- Dimming Range: 0-100% (Dim to OFF Voltage: 0.3V ± 0.2V)
- Input Voltage: 120-277V, 50/60 Hz
- Power Factor: ≥ 0.87
- Housing: Sheet Metal
- Diffuser: PMMA lens
- Surge Protection: 2.5KV
- Operating Temperature: -4°F to 122°F (-20°C to 50°C), except BBU models. BBU models: 32°F to 122°F (0°C to 50°C)
- Humidity: 10% to 80% RH non-condensing
- Certification: FCC, cULus Classified
- Qualifications: DLC Standard
- Material Usage: RoHS Compliant; No Mercury
- Environment: Damp Location
- Warranty: 10 years
Common Uses
Ideal for high-end hospitality, commercial, and retail applications.
