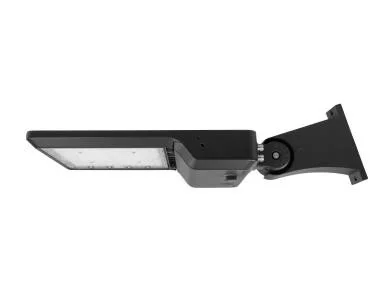

The MaxLite Slim AE Area Fixture is a high-performance outdoor luminaire designed for roadway, parking lot, and site lighting projects that demand flexibility and efficiency. As part of MaxLite’s Slim AE series, this model combines selectable wattage and CCT in a lightweight form factor to simplify both new construction and retrofit installations.
Key Features and Benefits
- Selectable power settings (300W/240W/200W) let you fine-tune light levels and energy use on site.
- Field-adjustable 3000K/4000K/5000K CCT supports visual comfort and application-specific color appearance.
- Controls-ready platform supports future c-Max control upgrades for smarter outdoor lighting management.
- Built-in surge protection (6kV driver + 10kA standalone) enhances reliability in demanding electrical environments.
- DLC listed performance and a 10-year warranty provide long-term confidence for commercial projects.
- Flexible arm mounting and bronze finish deliver a durable, professional solution for pole-mounted installations.
Specifications
- Lumen Output: 24,118-40,362 lm (based on selected wattage/CCT)
- Input Voltage: 277-480V
- Distribution: Type IV
- Dimming: 0-10V
- CRI: ≥80
- Efficacy: 120-143 lm/W
- Rated Life (L70): 100,000+ hours
- Operating Temperature: -40°F to 122°F (-40°C to 50°C)
- Housing: Die-cast aluminum with corrosion-resistant polyester powder coat
- Lens: Polycarbonate
- Weight: 11.73 lb (with arm)
Common Uses
Ideal for parking lots, campuses, roadways, commercial perimeters, industrial facilities, and other pole-mounted outdoor area lighting applications requiring high output and configurable performance.
