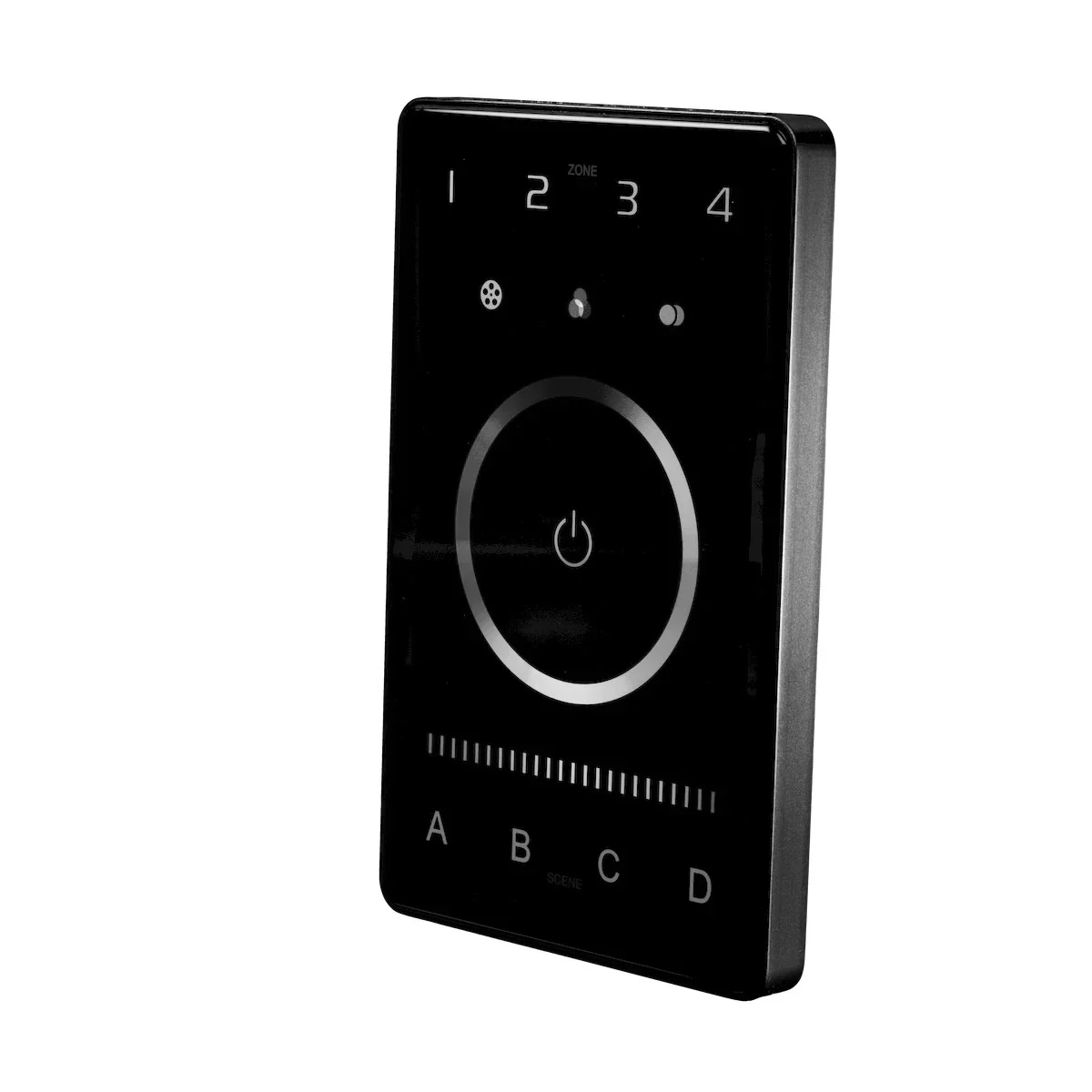

American Lighting DMX RGB+TW 4 Zone Wall Controller

Mastermind a dynamic lighting scheme with the sleek, easy-to-use in-wall DMX Wall Control. Featuring 16 mode auto play function, RGB + Tunable CCT shortcuts for color mixing and brightness control, and four zone control, this controller is versatile and ideal for many applications. Wall Control fits single gang junction boxes with convenient installation, readily enabling total lighting control and full functionality.

Key Features and Benefits

• Touch-sensitive configuration & operation
• Touch color circle with color tone shortcuts
• Includes selection of 4 zones with 4 savable scenes each
• Features full range dimming capabilities (1-100%)
• Requires 12-24V DC input and 5-channel DMX decoder
• Fits standard single gang junction boxes

Specifications

• Input Voltage: 12-24V DC
• Power Consumption: 200mA
• Output: DMX 512 signal
• Operating Temperature: -20°C to 55°C (-4°F to 131°F)
• Rating: UL, FCC Compliant; RoHS Compliant; dry locations

Common Uses

Ideal for dynamic lighting schemes in residential, commercial, and architectural applications where versatile lighting control is needed.
