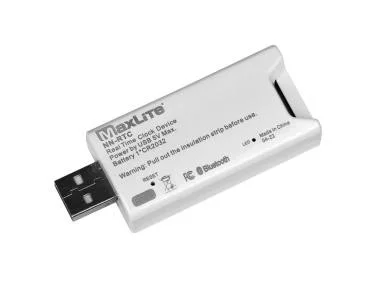

Compact real-time clock sync device with Bluetooth mesh network, powered by USB-A, white color, 5-year warranty.
Key Features and Benefits
- Easy commissioning via c-Max App (IOS and Android)
- At least 1 NN-RTC device per zone
- Can be utilized as a bridge connection between nodes
- Powered by plugging into any USB-A port
- 10-year Internal CR1220 battery to maintain the zone’s real-time schedule after power outages
- 5 Year Warranty
Specifications
- Operating Voltage: Powered by USB-A 5V charging port
- Flame Rating: UL 94 V-0
- Control Technology: Bluetooth
- Wireless Standard: BLE 4.2MESH IEEE 802.15.1
- Wireless Frequency: 2.4GHz
- Programming: c-Max Mobile App (IOS and Android)
- Cybersecurity: UL1376 Gold Rating
- Encryption: AES 128-bit
- Mesh Range: 100ft node-to-node and 50ft node-to-device (Commissioning)
- FCC: FCC ID: 2AZRDCMAX2021
- Operating Temperature: -40°F to 131°F / -40°C to 55°C
- Warranty: 5 years
- Color: White
Common Uses
Ideal for synchronizing schedules in lighting zones, especially after power outages. Suitable for commercial and industrial settings requiring reliable time-based lighting control.
