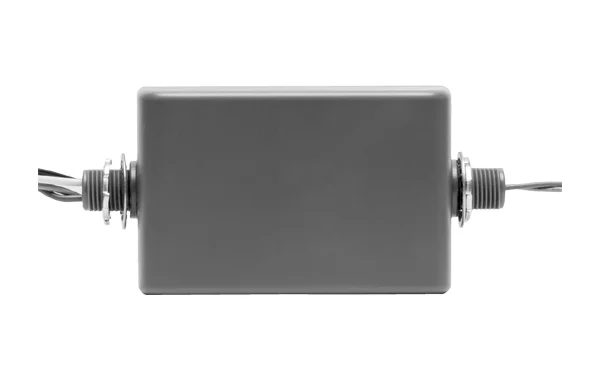

Linear Dimming Control Module, Plenum Rated, 120-277V, 0-10V, Gray

The AleoBlue Linear Dimming Control Module (LDCM-PL) is a versatile dimming solution designed for easy installation in plenum spaces. It converts a 0-10V dimming signal into a reverse phase dimmed output, supporting up to 1000W at 277V and 450W at 120V.

Key Features and Benefits

• Dims reverse phase only fixtures with 0-10V
• Simple installation with direct J-Box mount
• Compatible with 120V and 277V
• Auto-sensing voltage switch
• Plenum rated for safety and compliance
• One LDCM per fixture run

Specifications

• Power Rating: 450W MAX @110-120V, 1000W MAX @277V
• Operating Voltage: 110VAC-120VAC, 277VAC
• Operating Hertz: 60Hz
• Temperature Range: -4°F to 104°F (-20°C to 40°C)
• Housing: Injection Molded Polycarbonate
• ETL Listed for Damp Locations
• 5-year Limited Warranty

Common Uses

Ideal for indoor settings such as open offices, individual offices, conference rooms, classrooms, retail stores, hospitals, and lobbies.
