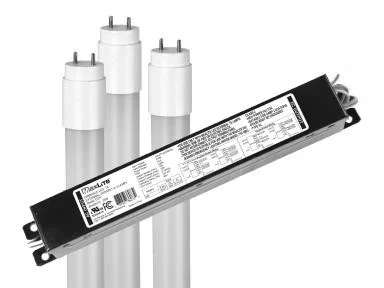

The MaxLite LED T8 External Dimmable Series is a Type C retrofit solution designed to modernize existing fluorescent T8 systems with improved efficiency and controllability. This 4′ 11.5W configuration pairs with a dedicated external driver and is part of MaxLite’s dependable linear lamp lineup for commercial upgrades.
Key Features and Benefits
- External driver Type C architecture supports reliable performance in retrofit applications
- 0-10V dimming capability down to 10% for better light-level control and energy savings
- Instant-on operation with no mercury and minimal UV/IR output for cleaner illumination
- Works in open or enclosed fixtures with standard G13 medium bi-pin sockets
- Certified for safety and compliance with cETLus, FCC, and RoHS standards
- Backed by a 5-year manufacturer warranty
Specifications
- Lumen Output: 1750-1800
- Wattage: 11.5W lamp power; 13W system power
- Voltage: 120-277V
- Frequency: 50/60Hz
- Color Temperature: 4000K
- CRI: ≥80
- Beam Angle: 210°±10°
- Efficacy: 135-138 lm/W
- Rated Life (L70): 50000 hours
- Operating Temperature: 4°F to 113°F (-20°C to 45°C)
- Lens Material: Coated Glass
- Base: Medium Bi-Pin (G13)
Common Uses
Ideal for commercial and institutional linear fixture retrofits in offices, schools, retail spaces, utility areas, and other indoor damp-location environments where efficient, controllable T8 lighting is needed.
