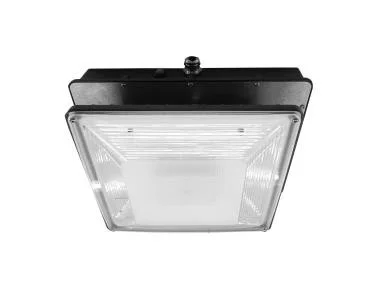

The MaxLite CPL Series LED Low-Profile Canopy is a high-performance retrofit solution designed to replace legacy HID canopy and garage luminaires. Built for fast one-person installation, this Generation B fixture combines strong light output, energy savings, and long service life for demanding commercial exterior applications.
Key Features and Benefits
- Delivers parking-garage optimized distribution for improved visibility and safety in covered structures
- Integrated 0-10V dimming support enables energy-saving control strategies and smoother light level adjustment
- Rugged die-cast aluminum body with polycarbonate lens supports reliable outdoor wet-location operation
- DLC Premium qualified design helps maximize utility rebate potential and efficiency goals
- cULus listed and supports Title 24 compliance for code-conscious projects
- Backed by a 10-year manufacturer warranty for long-term peace of mind
Specifications
- Lumen Output: 6347
- Wattage: 52W
- Voltage: 120-277V
- Color Temperature: 4000K
- CRI: 70
- Power Factor: 0.90
- Dimming Type: 0-10V (10%-100%)
- Rated Life (L70): 100000 hours
- Efficacy: 123-127 lm/W
- Operating Temperature: -40°C to 50°C
- Surge Protection: 10kV
- Housing Material: Die-cast Aluminum
- Lens Material: Polycarbonate
- Dimensions: 10.23″ x 10.23″ x 3.44″
- Environment: Wet location
Common Uses
Ideal for parking garages, gas station canopies, covered walkways, loading areas, and other commercial outdoor ceiling-mount applications requiring efficient, durable illumination.
