Versatile Lighting Solution: Westgate Manufacturing CAX Series Garage Canopy
The Westgate Manufacturing CAX Series Garage Canopy is a powerful and adaptable lighting solution for diverse environments, including indoor parking, commercial spaces, and other utilitarian areas. Renowned for its durable build and versatile features, this series represents a significant advancement in Westgate’s lighting offerings.
Key Features and Benefits

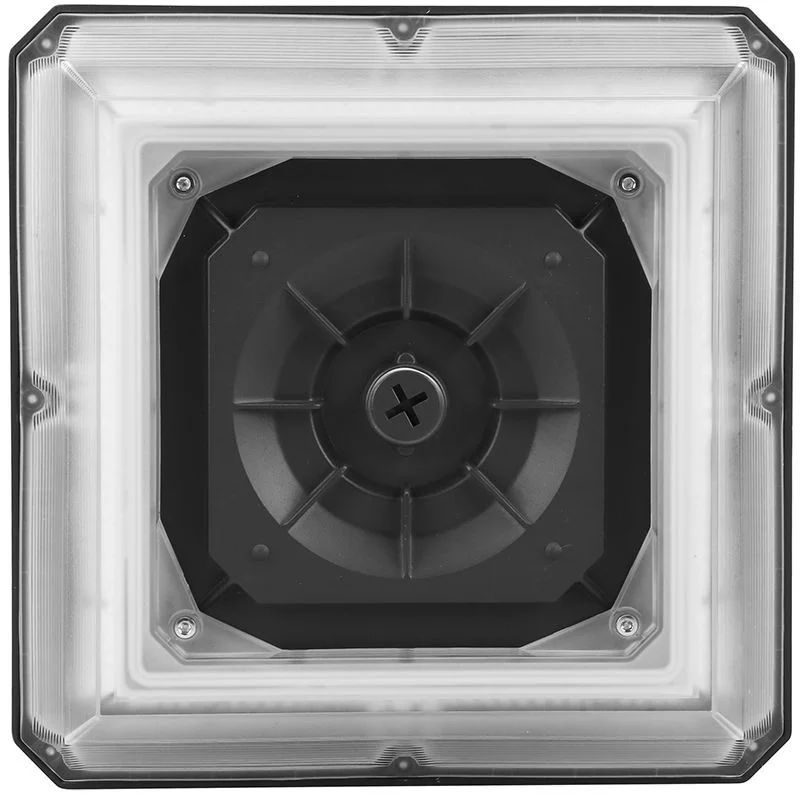

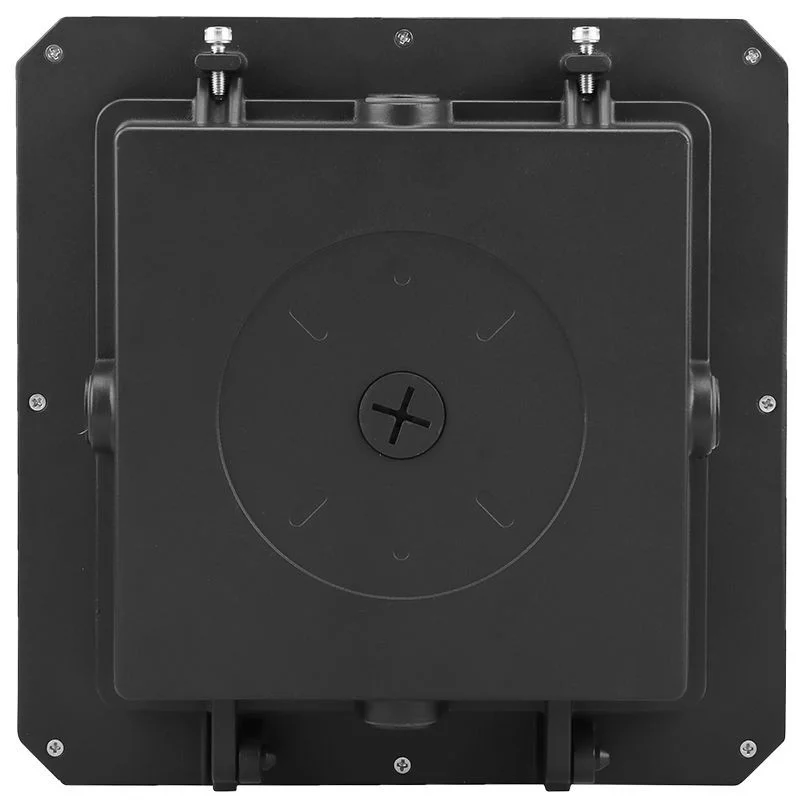

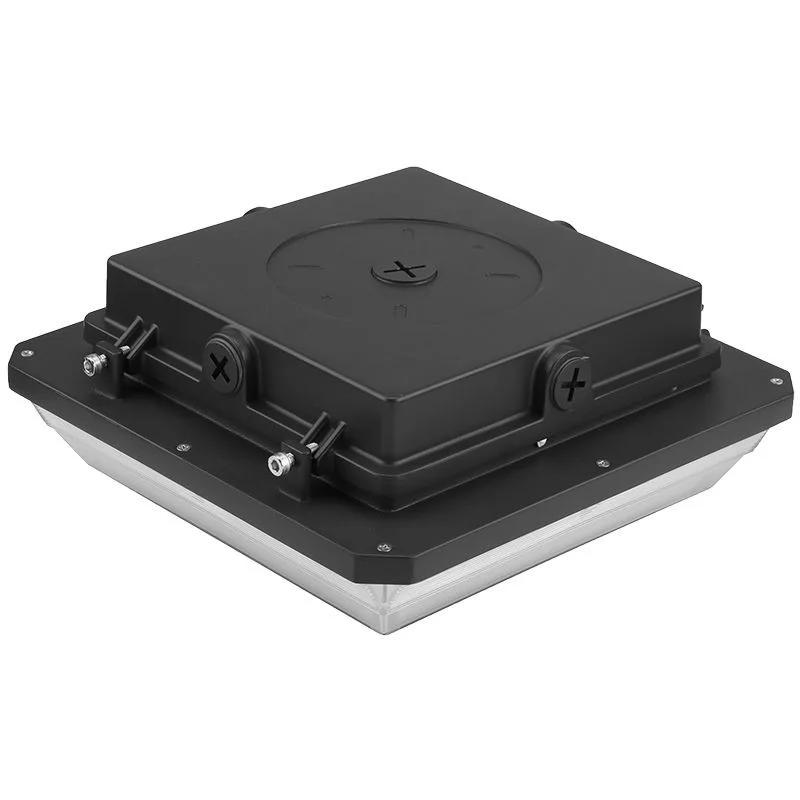

- Robust Construction: Features a die-cast aluminum housing paired with a prismatic polycarbonate lens, combining durability with exceptional light diffusion.
- Sensor-Ready: Comes with a pre-installed 3-pin socket, ready for seamless integration with motion sensor accessories.
- Customizable Settings: Multi-color temperature (3000K/4000K/5000K) and multi-power options (20W/30W/45W) are selectable via an integrated switch.
- Energy-Efficient: Offers 0~10V dimming capabilities, providing a highly energy-efficient lighting solution.
- High Performance: Delivers a high lumen output of up to 6300LM, ensuring optimal illumination.
- Wide Coverage: A 150° beam angle guarantees excellent area coverage, reducing the number of fixtures required.
- Long Lifespan: Engineered for longevity with a lifespan of up to 70,000 hours.
- Weather Resistant: Rated IP65, making it suitable for wet locations.
- Warranty: Comes with a reliable 7-year warranty.
Specifications
- Wattage: 20W/30W/45W
- Voltage: 120-277VAC 50/60Hz
- Color Temperature: 3000K/4000K/5000K
- Total Lumens: 2800LM/4200LM/6300LM
- Color Rendering Index (CRI): >80
- Operating Temperature: -40°F ~ 131°F
Ideal Applications
This versatile light is perfect for indoor parking areas, commercial buildings, educational institutions, warehouses, retail centers, and residential complexes.
