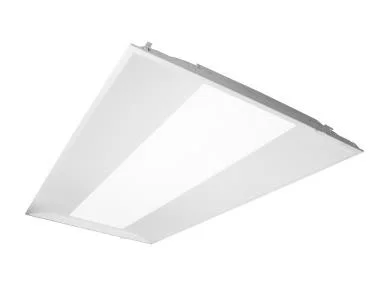

The MaxLite LRK Series LED Lensed Retrofit Kit is designed to modernize existing troffers with efficient, edge-lit LED performance and a clean, uniform appearance. Built for quick field installation, this retrofit solution helps reduce energy use while improving light quality in commercial interiors.
Key Features and Benefits
- Fast retrofit design installs into many existing lensed and parabolic troffers without disturbing the ceiling plenum
- Edge-lit optical system provides smooth, even illumination for comfortable visual environments
- 0-10V dimming compatibility supports flexible light-level control and energy savings
- Durable galvanized steel construction with reflective white finish enhances long-term performance
- Certified for safety and compliance with UL Listed, FCC, RoHS, and DLC Standard qualifications
- Backed by a 10-year limited warranty for dependable commercial operation
Specifications
- Lumen Output: 4060
- Wattage: 40W
- Voltage: 120-277V
- Color Temperature: 3500K
- CRI: 80
- Efficacy: 112 lm/W
- Rated Life (L70): 50000 hours
- Power Factor: 0.92
- Operating Temperature: 0°F to 104°F
- Mounting: Lamp brackets with keyhole
- Environment: Indoor damp location
- Weight: 9.9 lbs
Common Uses
Ideal for offices, schools, healthcare spaces, retail back-of-house areas, and other commercial interiors where existing 2’x4′ troffers need a fast, energy-efficient LED upgrade in damp-rated indoor environments.
