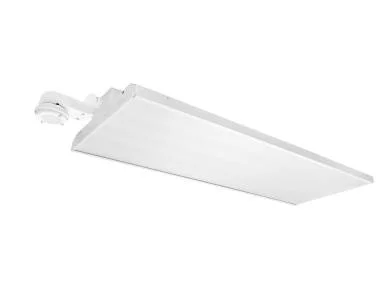

The MaxLite BLHE Economic Linear High Bay Gen 3 is a high-performance fixture in the ECO Series, designed to deliver dependable illumination for demanding commercial and industrial spaces. This 400W configuration combines strong lumen output, integrated motion sensing, and dimmable control to help reduce energy use while maintaining visibility in large interiors.
Key Features and Benefits
- High-output performance delivers up to 54,400 lumens for large open-area applications.
- Integrated PIR motion sensor option supports smarter lighting control and energy savings.
- 0-10V dimming capability allows light levels to be tuned down to 10%.
- Frosted PMMA lens helps provide smooth, comfortable light distribution.
- Built for long service life with L70 lumen maintenance rated at 100,000 hours.
- Certified for quality and efficiency with cULus Listed, FCC, RoHS compliance, and DLC Premium qualification.
- Backed by a 10-year limited warranty for long-term project confidence.
Specifications
- Power Consumption: 400W
- Lumens Delivered: 54,000-54,400 lm
- Input Voltage: 120-277V
- Color Temperature: 4000K
- CRI: ≥80
- Efficacy: 141-142 lm/W
- Power Factor: ≥0.9
- Operating Temperature: -4°F to 122°F (-20°C to 50°C)
- Environment: Dry/Damp locations
- Dimensions (400W): 46″ L x 17.3″ W x 3.37″ H
- Mounting: Surface or suspension mount (V-hook and 40″ chain included)
Common Uses
Ideal for warehouses, gymnasiums, distribution centers, manufacturing facilities, and big-box retail environments where high lumen output, controllability, and reliable long-life operation are essential.
