The Lum-Tech FRG Series 4\” Floating Round Gimbal is a versatile recessed LED downlight designed for directional accent and general lighting. As part of Lum-Tech’s multi-size FRG lineup, it combines field-selectable color temperature, smooth dimming, and a compact adjustable form for modern commercial and residential ceilings.
Key Features and Benefits
- 5CCT selectable output (2700K/3000K/3500K/4100K/5000K) for flexible on-site lighting design.
- 360° rotation and 90° swivel gimbal head helps aim light exactly where needed.
- Triac and 0-10V dimming compatibility with dimming down to 5% for layered lighting control.
- Wet-location and airtight construction supports dependable performance in demanding spaces.
- JA8 and Title 24 compliant with ETL Listed and FCC compliance for code-ready installation.
- Backed by a 3-year warranty for added project confidence.
Specifications
- Lumen Output: 1200
- Wattage: 13W
- Voltage: 120-277V
- CRI: 90
- Beam Angle: 40° (default), interchangeable 24°|40°|60° lens options
- Cutout: 4.25\”

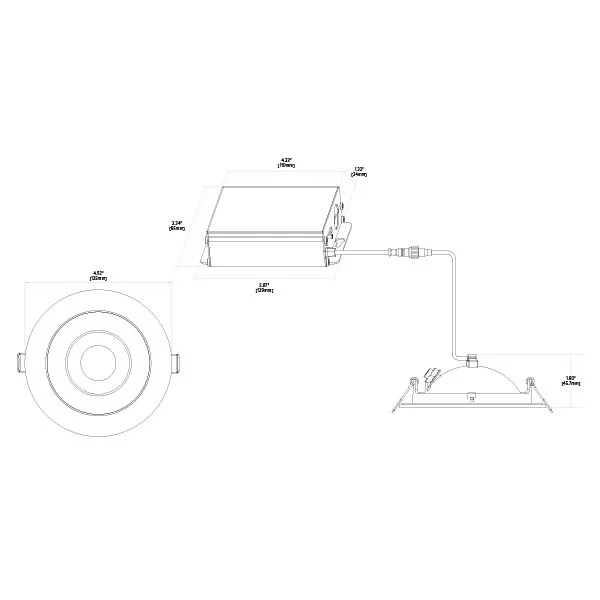

- Outside Diameter: 4.92\”
- Height: 1.81\”
- Output Voltage Range: 33-38V
- Output Current: 340mA
- Wire Space: 10.4 sq in
- Plenum Cable Rating: FT6
Common Uses
Ideal for residential living areas, hospitality spaces, retail displays, corridors, and other recessed ceiling applications where adjustable aiming, selectable CCT, and code-compliant performance are required.
