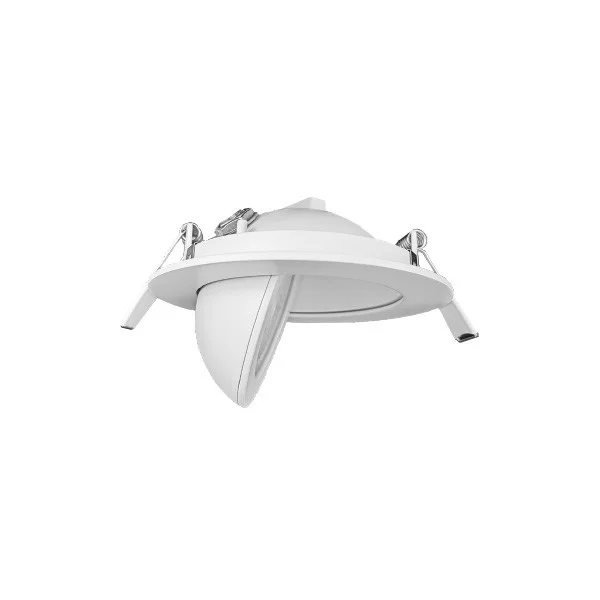

The Lum-Tech FRG Series 3″ Floating Round Gimbal Downlight is a compact, high-performance recessed fixture designed for directional accent and general illumination. As part of Lum-Tech’s versatile FRG lineup, it combines field-selectable color temperature, smooth dimming, and adjustable aiming for flexible lighting design.
Key Features and Benefits
- 5-CCT selectable output (2700K/3000K/3500K/4100K/5000K) for easy on-site color tuning
- Gimbal design with 360° rotation and 90° swivel for precise beam aiming
- Dimming down to 5% with Triac or 0-10V controls for layered lighting scenes
- Wet location and airtight rated construction for broader installation versatility
- JA8 and Title 24 compliant with ETL Listed and FCC compliance for code-ready projects
- Backed by a 3-year warranty for dependable long-term use
Specifications
- Lumen Output: 700
- Wattage: 8W
- Voltage: 120-277V
- CRI: 90+
- Beam Angle: 40° (default)
- Cutout: 2.95″
- Outside Diameter: 3.47″
- Height: 1.54″
- Output Current: 175mA
- Output Voltage Range: 33-38V
- Wire Space: 7.2 sq in
Common Uses
Ideal for residential living areas, hospitality spaces, retail displays, corridors, and other interior or protected exterior ceiling applications where adjustable recessed lighting and selectable CCT are needed.
