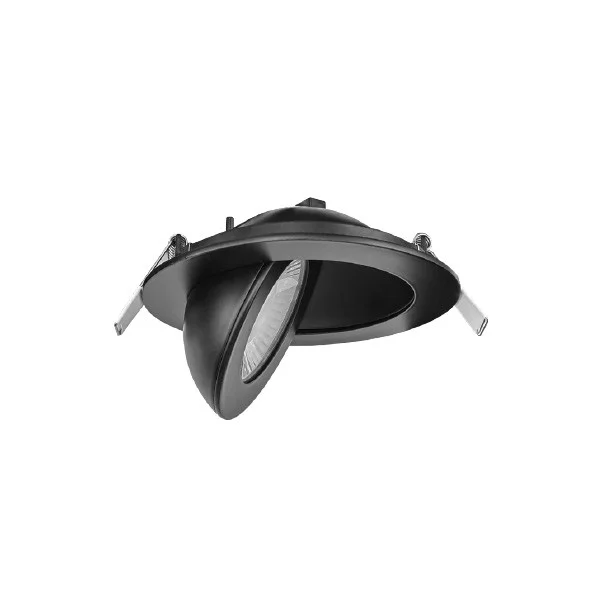

The Lum-Tech FRG Series LTG-00920 is a compact 3-inch floating round gimbal downlight designed for flexible directional lighting. As part of Lum-Tech’s multi-size FRG lineup, it combines selectable color temperature, smooth dimming, and wide-voltage operation for modern retrofit and new construction projects.
Key Features and Benefits
- 5CCT field-selectable output lets you tune the space from warm to daylight tones (2700K to 5000K).
- Gimbal design with 360° rotation and 90° swivel supports precise aiming for accent walls, artwork, and task zones.
- Compatible with Triac and 0-10V controls, dimming down to 5% for layered lighting scenes.
- Wet-location and airtight construction helps expand installation options while improving envelope performance.
- JA8 and Title 24 compliant with ETL listing and FCC compliance for code-focused projects.
- Backed by a 3-year manufacturer warranty for added confidence.
Specifications
- Lumen Output: 700
- Wattage: 8W
- Voltage: 120-277V
- Color Temperature: 2700K|3000K|3500K|4100K|5000K
- CRI: 90+
- Beam Angle: 40° (default), interchangeable 24° and 60° lens options available
- Cutout: 2.95″
- Outside Diameter: 3.47″
- Height: 1.54″
- Output Voltage Range: 33-38V
- Output Current: 175mA
- Wire Space: 7.2 sq in
Common Uses
Ideal for residential living areas, kitchens, hallways, hospitality spaces, and light commercial interiors where adjustable recessed lighting is needed. Suitable for wet-location applications such as covered outdoor soffits and moisture-prone indoor areas.
