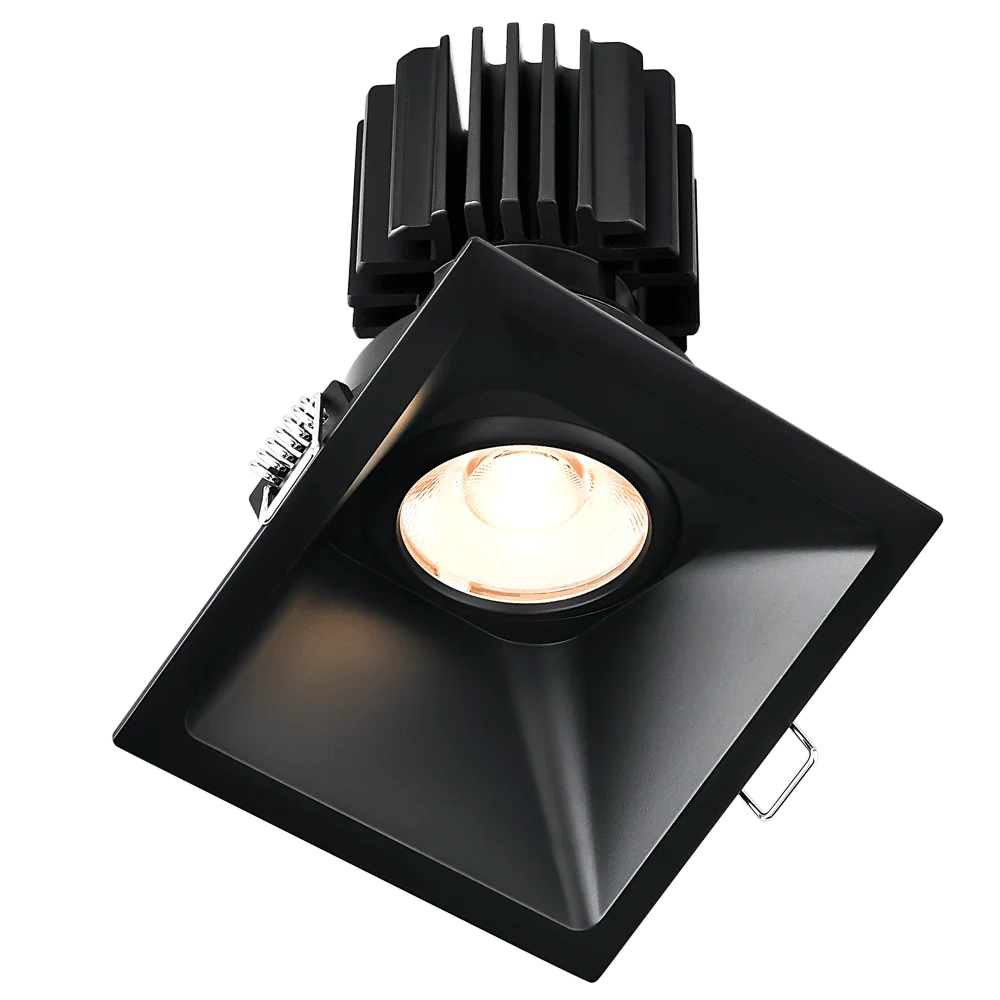

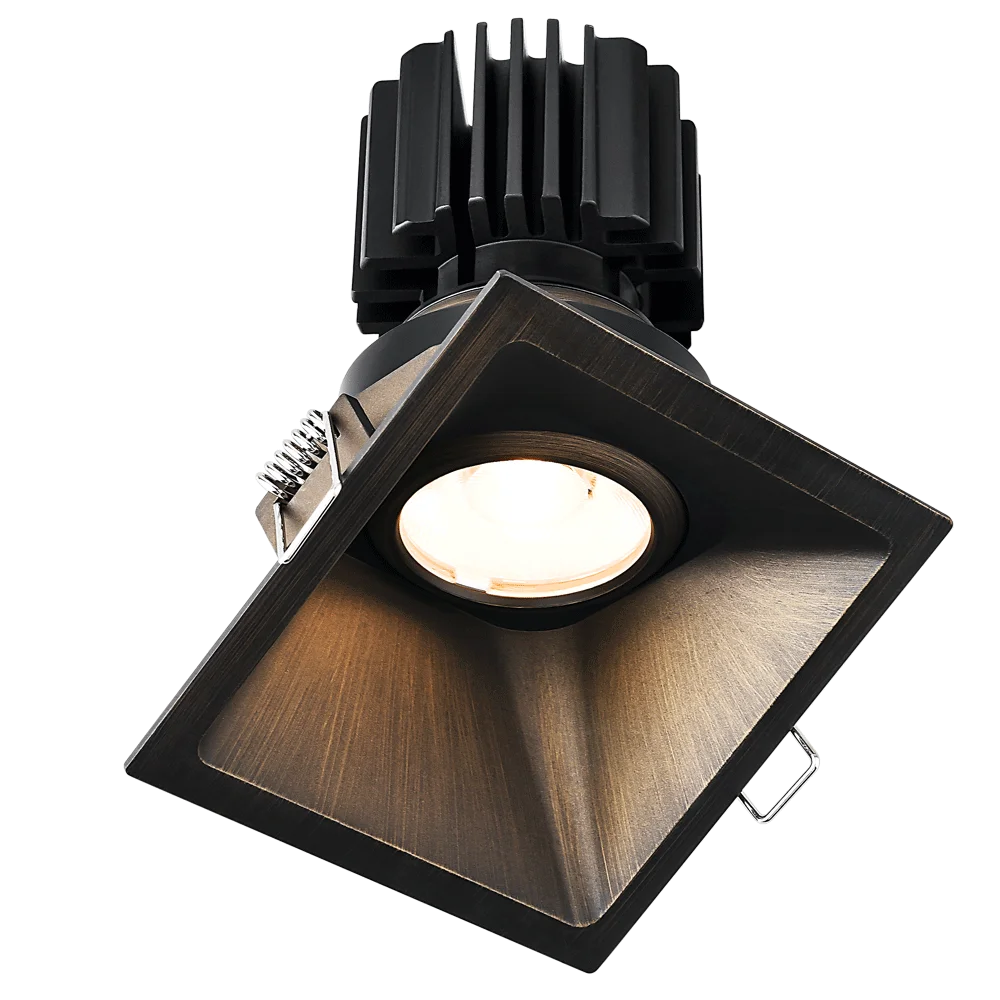

The Lotus Tangra L3G-SST is a premium 4″ gimbal square sloped thin trim fixture designed for precision accent and architectural lighting. Built with a solid cast aluminum body and advanced optics, this modular series delivers high visual comfort and flexible performance for residential and commercial projects.
Key Features and Benefits
- Precision aiming with 20° tilt and full 360° rotation for directional lighting and wall washing.
- High-quality light with ultra-high CRI options, including CRI98 for enhanced color fidelity.
- Selectable 11W/15W operation with output up to 1600 lumens for adaptable brightness.
- Supports Triac and 0-10V dimming driver options for broad control compatibility.
- Certified cETLus and FCC compliant, with Type IC, Air Tight, Open Plenum, and Wet Location IP54 suitability.
- Long-term reliability backed by a 5-year warranty plus line-lifetime manufacturer coverage.
Specifications
- Lumen Output: up to 1600
- Wattage: 11W|15W
- Voltage: 120V|120-347V
- Color Temperature: 3000K
- Optics options: Reflector clear glass (RC), semi-frosted (RS), frosted (RF), lens white (LW), lens black (LB)
- CRI: 98
- Beam Angle: 20°|24°|36°|50°|60°
- Rated Life (70 Hours): 50000
- Output Current: 350mA
- Output Voltage Range: 20-40V DC
- Max Ambient Temperature: 113°F (45°C)
- IP Rating: IP54
- Light Source: Integrated LED
- Primary Material: Cast aluminum
Common Uses
Ideal for sloped ceilings from 5° to 55°, residential living spaces, hospitality interiors, retail accent lighting, and architectural wall-wash applications where adjustable, high-CRI illumination is required.
