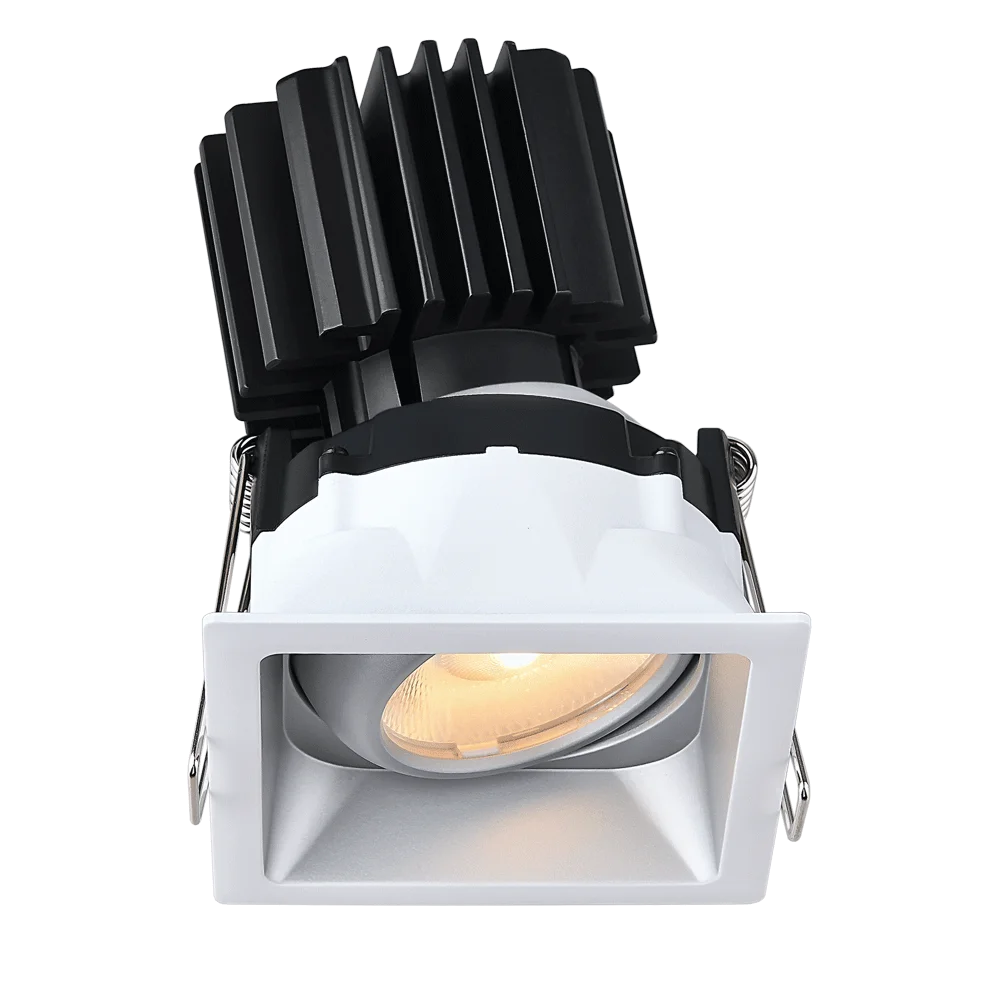

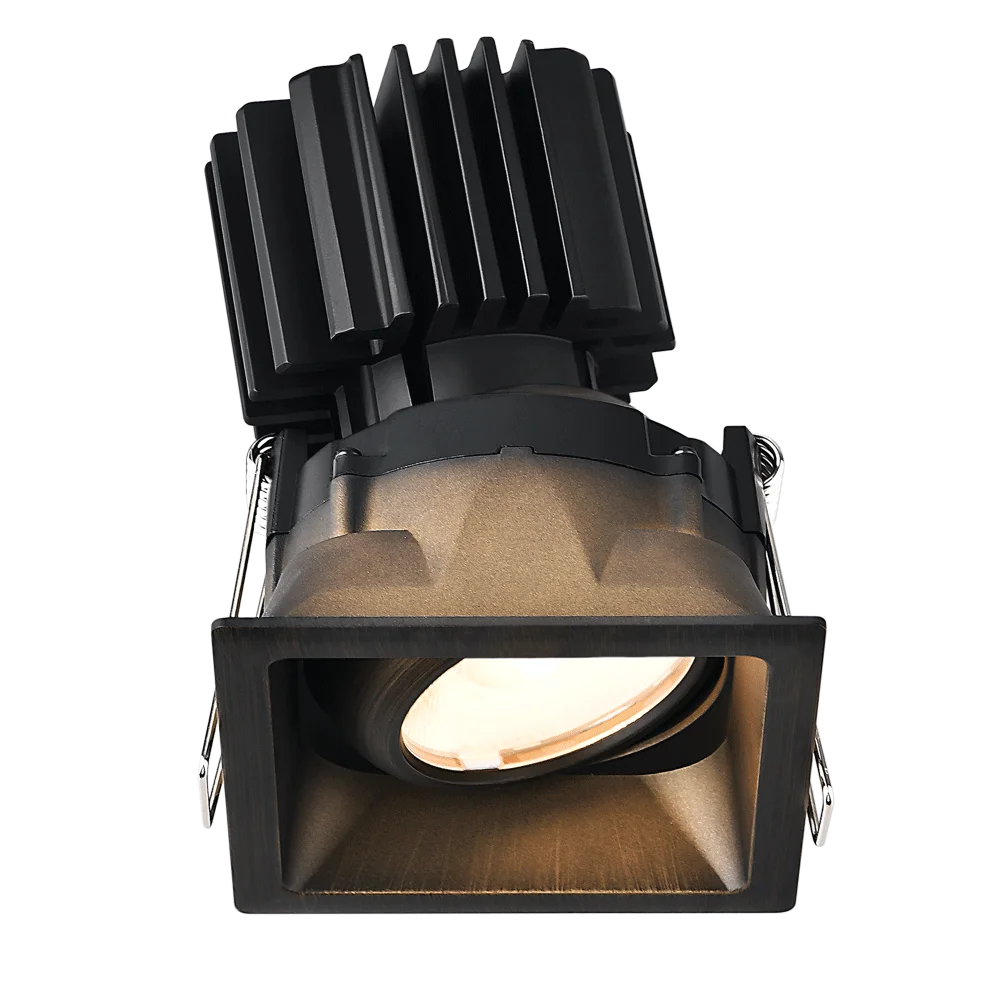

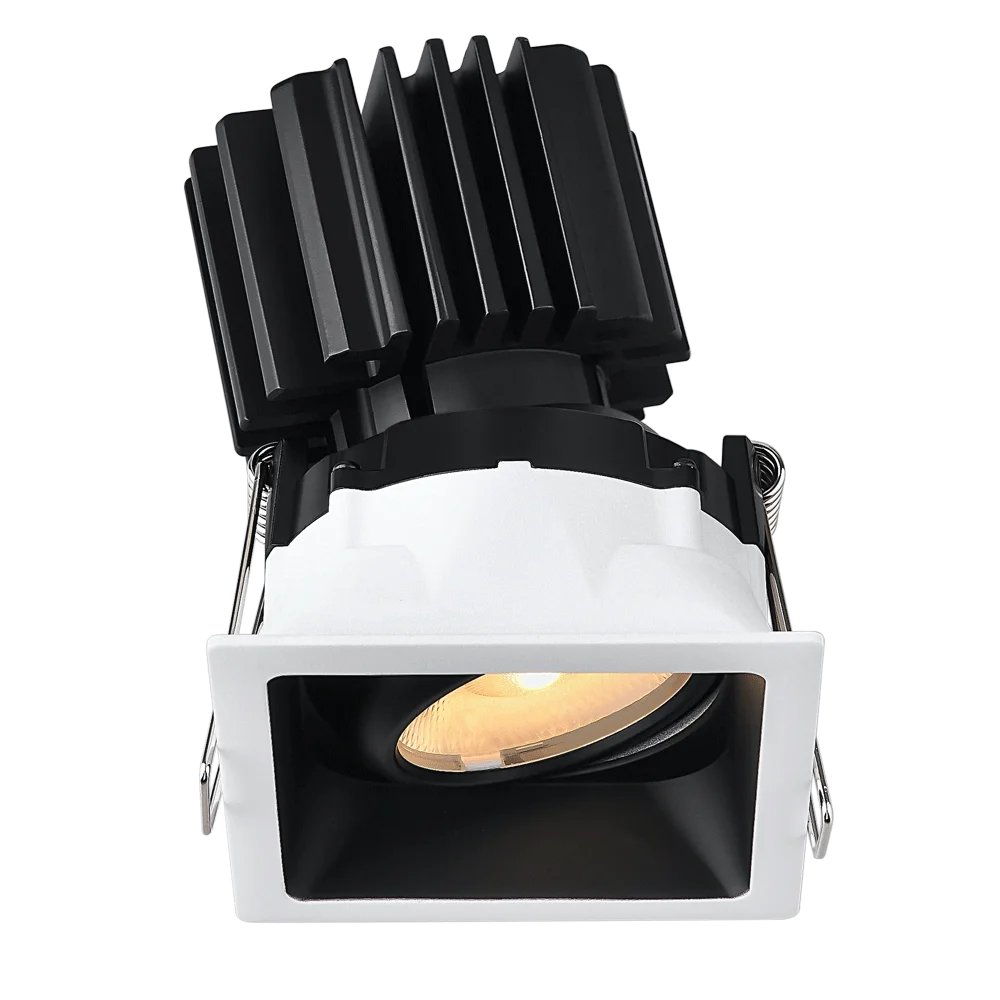

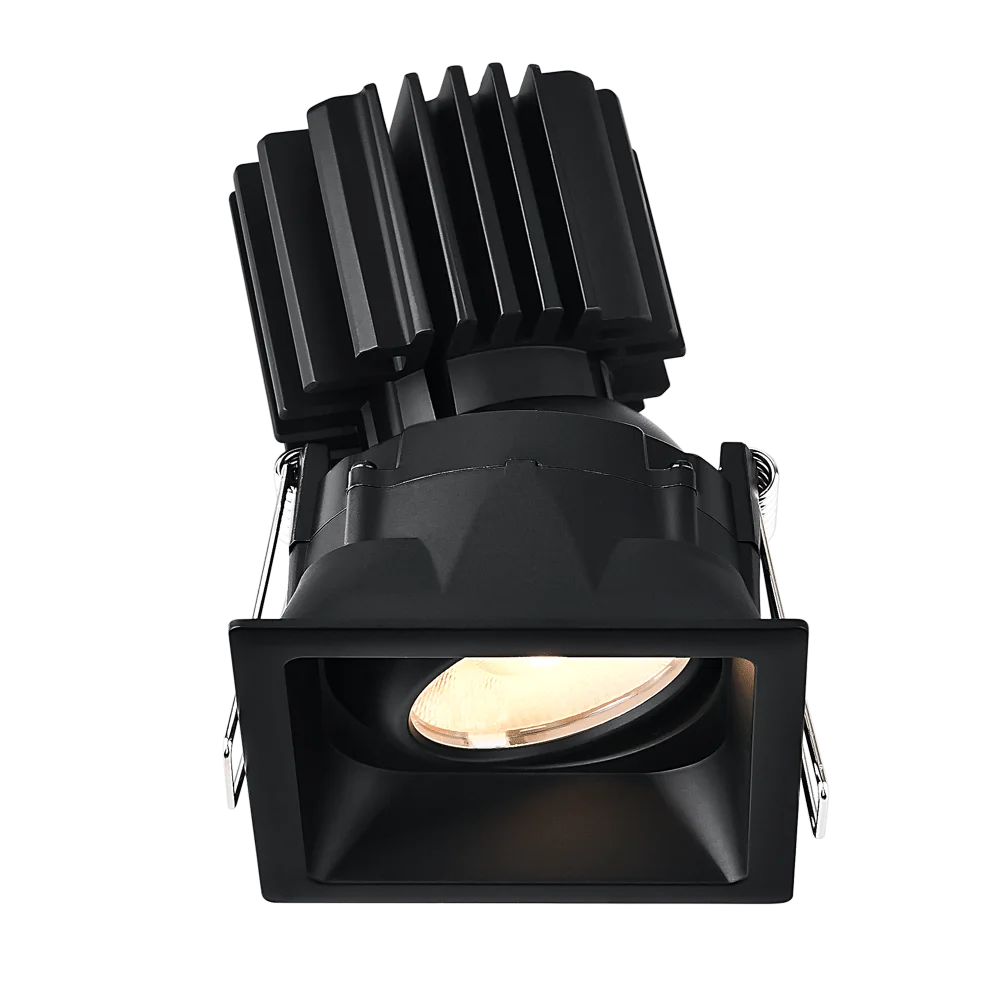

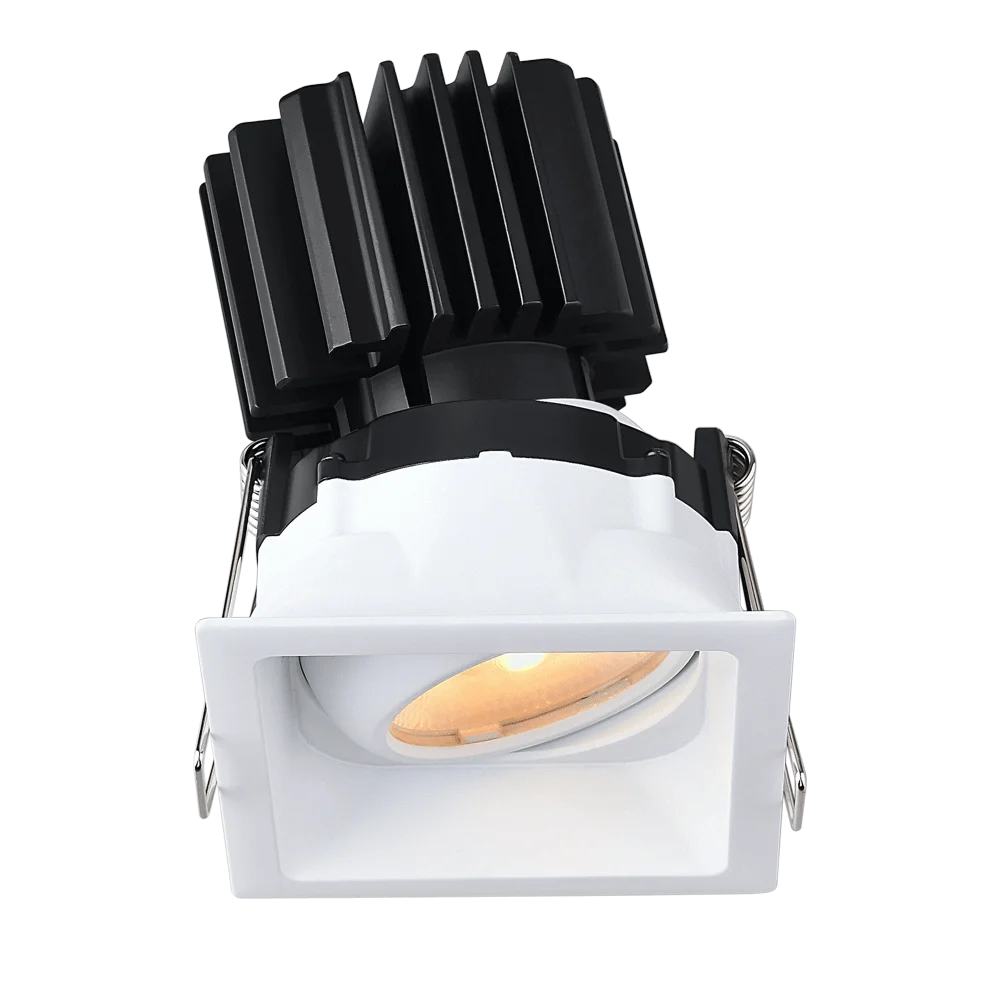

The Lotus Tangra L3G-SRT series is a premium 3″ gimbal square recessed thin trim fixture designed for high-performance architectural lighting. Built with a solid cast aluminum body and advanced optics, it offers flexible beam control and ultra-high color quality for demanding residential and commercial spaces. Its modular platform supports multiple driver and LED options for tailored project performance.
Key Features and Benefits
- Precision aiming with 20° tilt and full 360° rotation for accent, task, and wall-wash lighting
- Selectable 11W/15W operation with output up to 1600 lumens for adaptable light levels
- High color fidelity options up to CRI98 for enhanced visual comfort and material rendering
- Supports Triac and 0-10V dimming driver families for broad control compatibility
- Certified cETLus and FCC compliant with Type IC, Air Tight, Open Plenum, and Wet Location IP54 construction
- Backed by Lotus lifetime line support plus 5-year warranty coverage
Specifications
- Lumen Output: 1600
- Wattage: 11W/15W
- Voltage: 120V|120-347V (driver dependent)
- Color Temperature: 3000K
- CRI: 98
- Beam Angle: 20°|24°|36°|50°|60°
- Optics options: Reflector clear glass (RC), semi-frosted (RS), frosted (RF), lens white (LW), lens black (LB)
- Fixture Input: 20-40V DC Max 350 mA Constant Current
- Rated Life (L70): 50000 hours
- Operating Temperature: -40°F (-40°C) to +113°F (+45°C)
- Cutout: 2 5/8″ square
- Ceiling Clearance for Driver: 4″ minimum
Common Uses
Ideal for residential and commercial interiors including kitchens, corridors, retail displays, hospitality spaces, and sloped ceiling applications up to 20°. Commonly used where directional recessed lighting and premium color quality are required.
