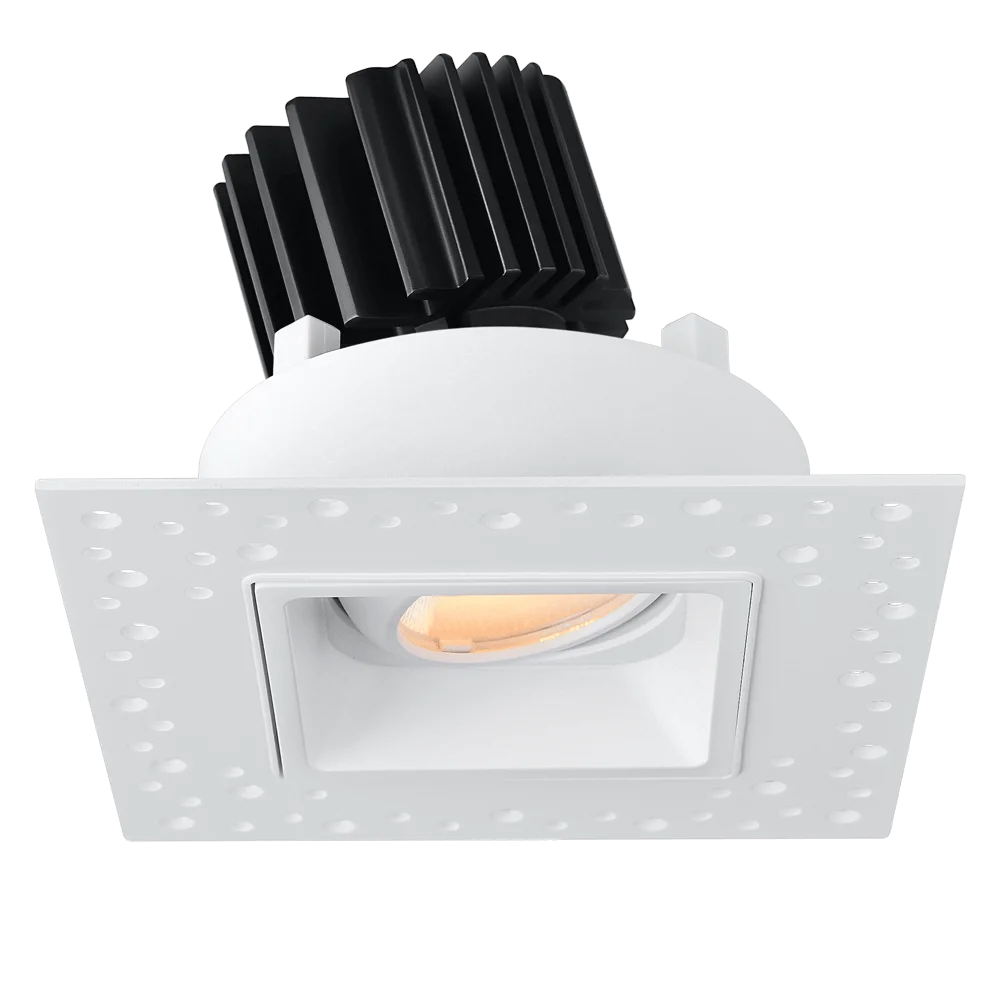

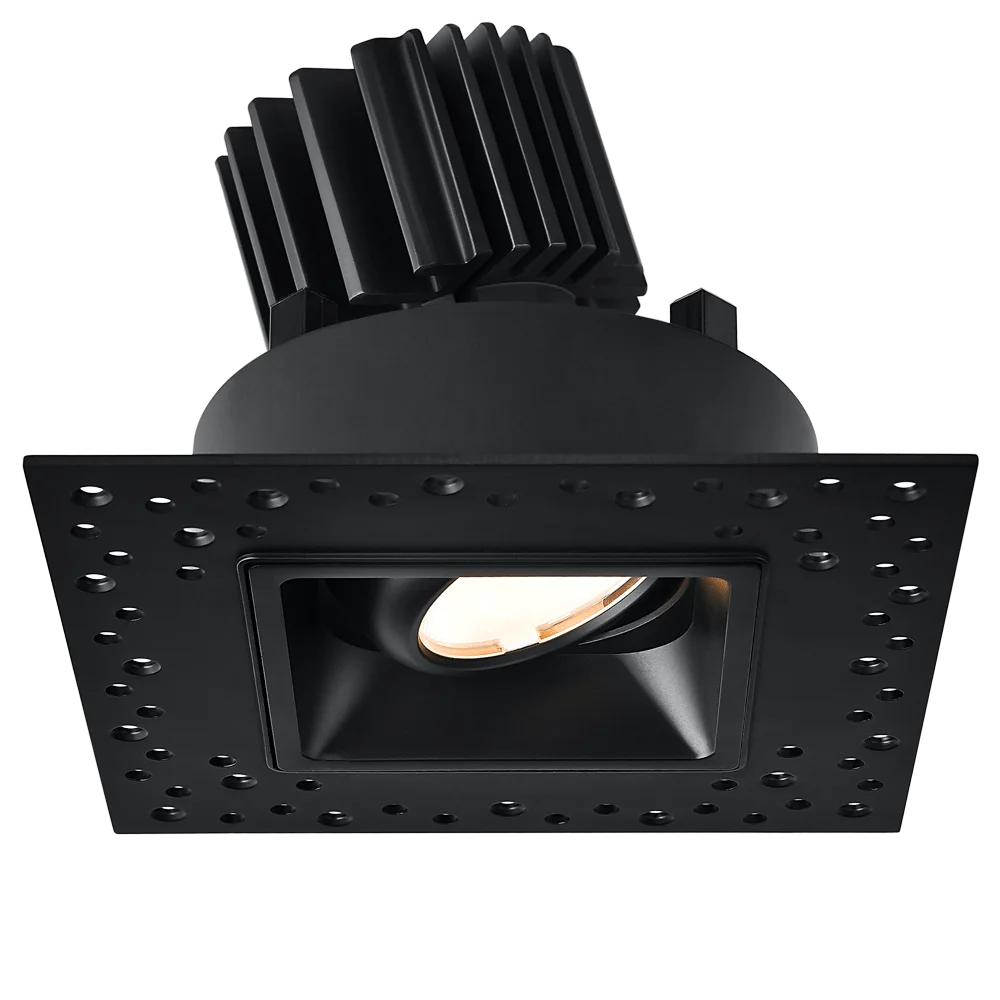

The Lotus Tangra L3G-SIT is a premium 3″ gimbal square invisible trim recessed fixture designed for high-end architectural lighting. Built in Canada with a solid cast aluminum body and advanced optics, it delivers flexible beam control and excellent color quality for demanding interior applications.
Key Features and Benefits
- Precision aiming with 20° tilt and full 360° rotation for focused task and accent lighting
- Modular platform with multiple beam spreads and LED packages to match project requirements
- High-performance optical system with up to 1600 lumens and ultra-high CRI options for accurate color rendering
- Certified for safety and code-driven installs: cETLus, FCC, Type IC, Air Tight, Open Plenum, and Wet Location
- Long-term reliability backed by a lifetime line warranty plus 5 years from Lotus
Specifications
- Lumen Output: up to 1600
- Wattage: 11W/15W selectable
- Voltage: 120V (Triac driver) or 120-347V (0-10V driver)
- Beam Angle: 20°|24°|36°|50°|60°
- Color Temperature: 5CCT 2700K/3000K/3500K/4000K/5000K (model dependent)
- Optics options: Reflector clear glass (RC), semi-frosted (RS), frosted (RF), lens white (LW), lens black (LB)
- CRI: 98 (5C98 configuration)
- Fixture Input: 20-40V DC, max 350mA constant current
- Rated Life: 70% light output at 50,000 hours
- Ambient Temperature: -40°F (-40°C) to +113°F (+45°C)
- IP Rating: IP54
Common Uses
Ideal for task lighting, sloped ceilings up to 20°, and wall washing in residential and commercial interiors where discreet trimless aesthetics and adjustable directional light are required.
