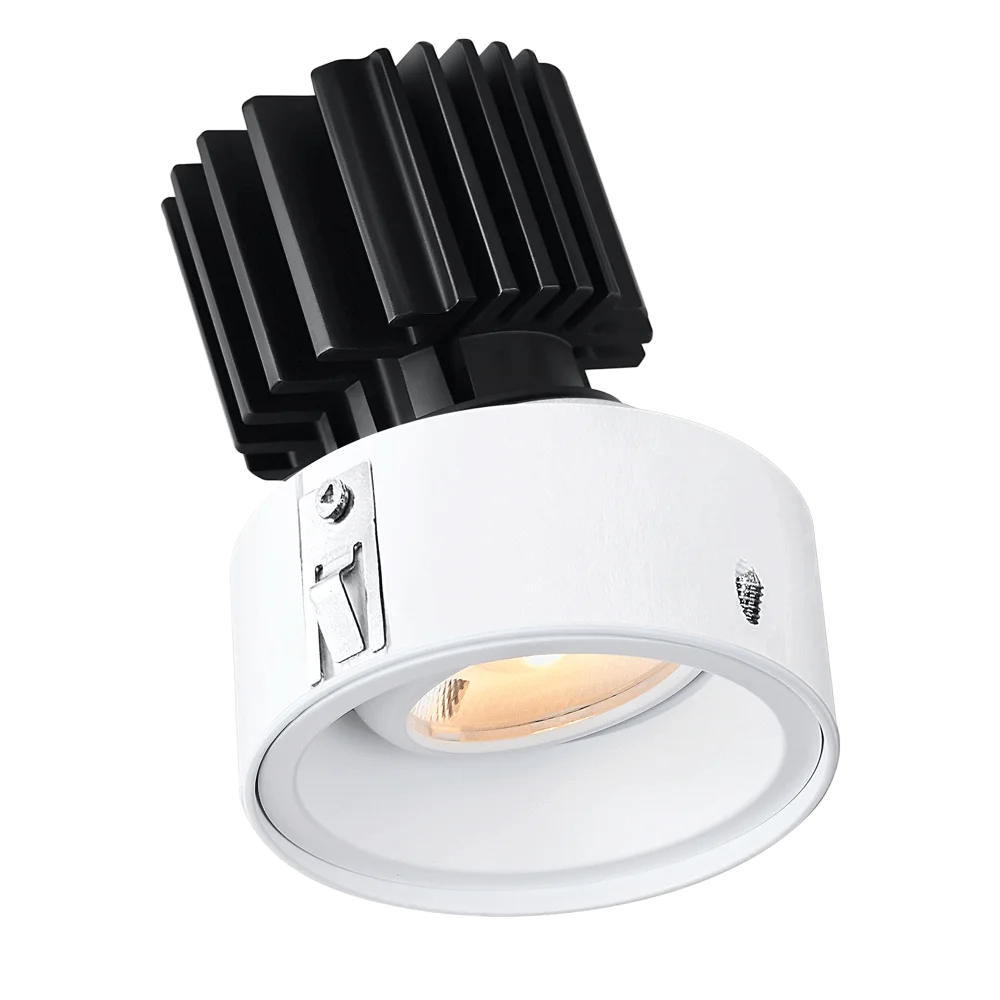

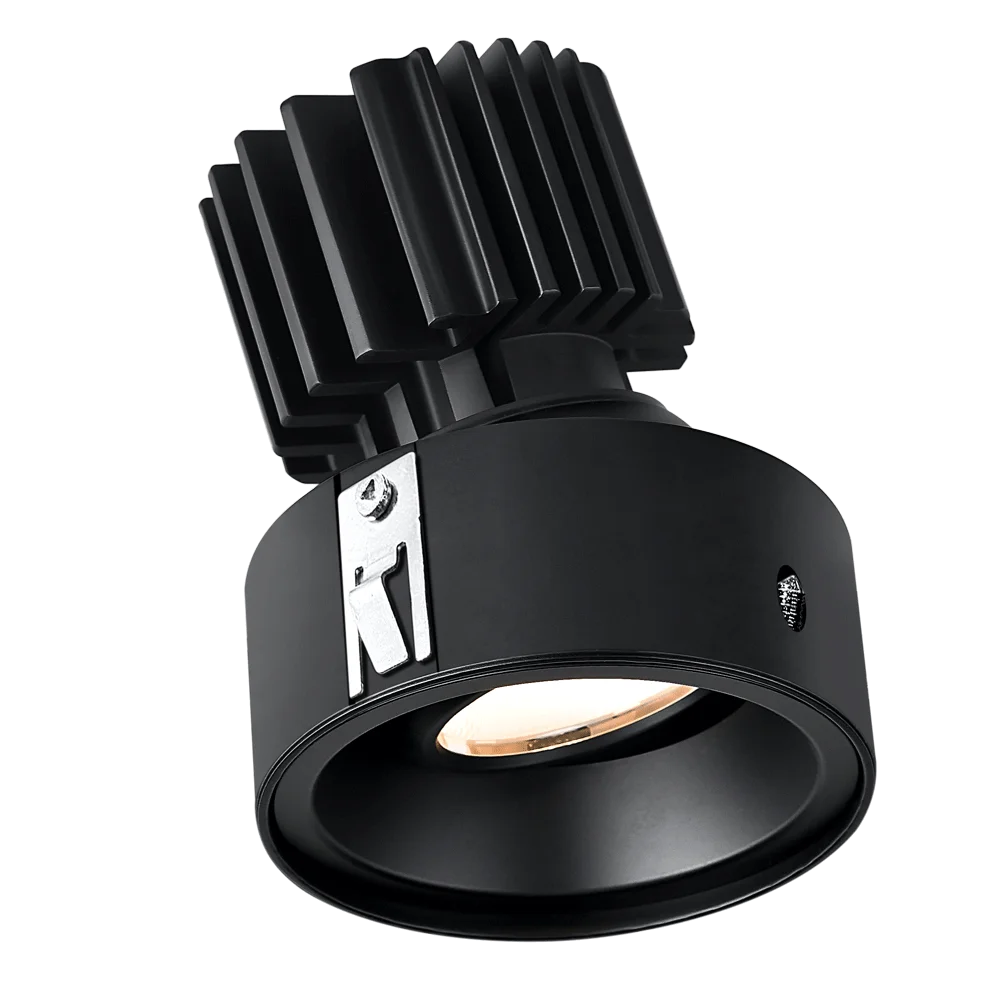

The Lotus Tangra L3G-RIF series is a premium 3″ gimbal round invisible flangeless recessed fixture designed for high-end architectural and task lighting. Built with a solid cast aluminum body and advanced optics, it delivers precise beam control, high color quality, and flexible aiming for demanding residential and commercial spaces.
Key Features and Benefits
- Precision aiming with 20° tilt and full 360° rotation for focused task and accent illumination.
- Modular platform with multiple beam spreads and LED packages to match project-specific lighting goals.
- High-performance dimming support with Triac or 0-10V driver options (driver ordered separately).
- Certified for challenging installations with cETLus, FCC, Type IC, Air Tight, Open Plenum, and Wet Location IP54 compliance.
- Long-term reliability backed by Lotus lifetime line support plus 5-year warranty coverage.
Specifications
- Lumen Output: up to 1600
- Wattage: 11W|15W (user selectable)
- Beam Angle: 20°|24°|36°|50°|60°
- Color Temperature: 3000K (this configuration)
- CRI: 98 (this configuration)
- Optics options: Reflector clear glass (RC), semi-frosted (RS), frosted (RF), lens white (LW), lens black (LB)
- Input to Fixture: 20-40V DC, max 350mA constant current
- Rated Life (70% output): 50000 hours
- Operating Temperature: -40°F to +113°F (-40°C to +45°C)
Common Uses
Ideal for task lighting, sloped ceilings up to 20°, millwork details, and wood ceiling applications in upscale residential, hospitality, and commercial interiors where discreet trimless aesthetics and accurate light control are required.
