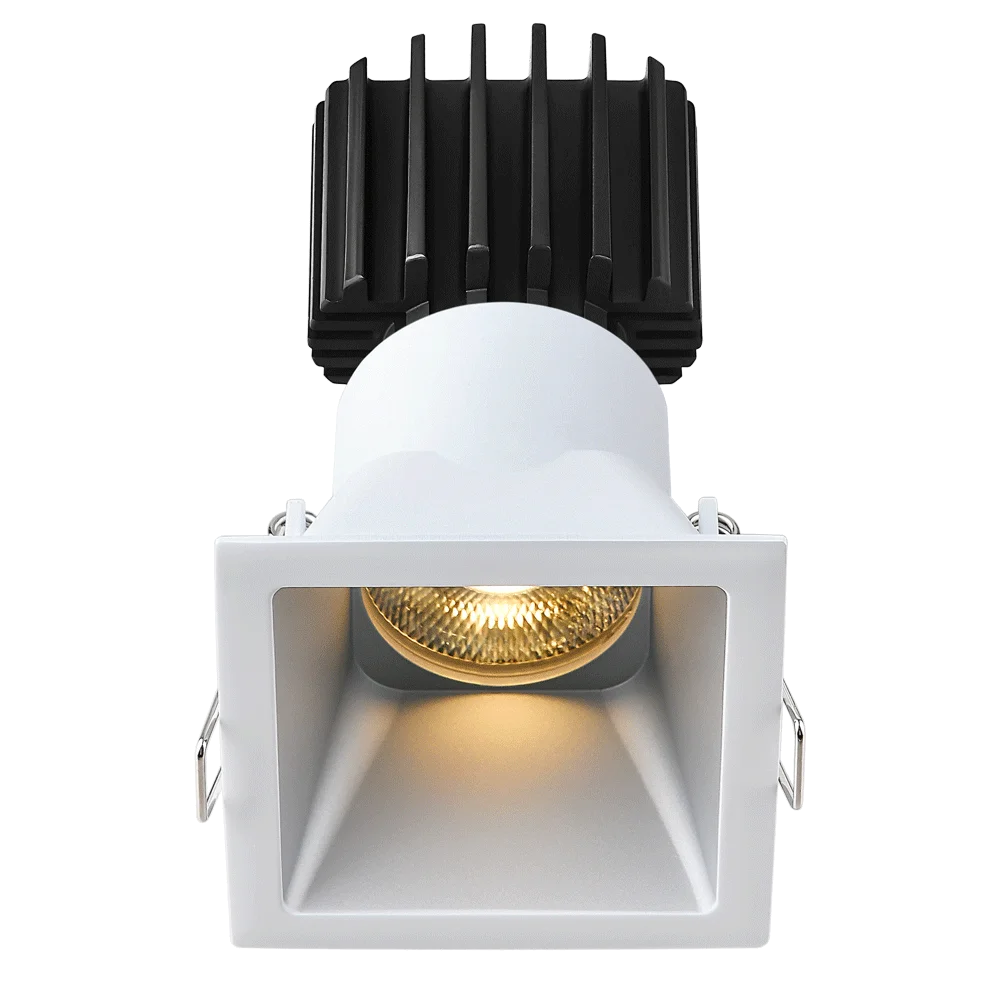

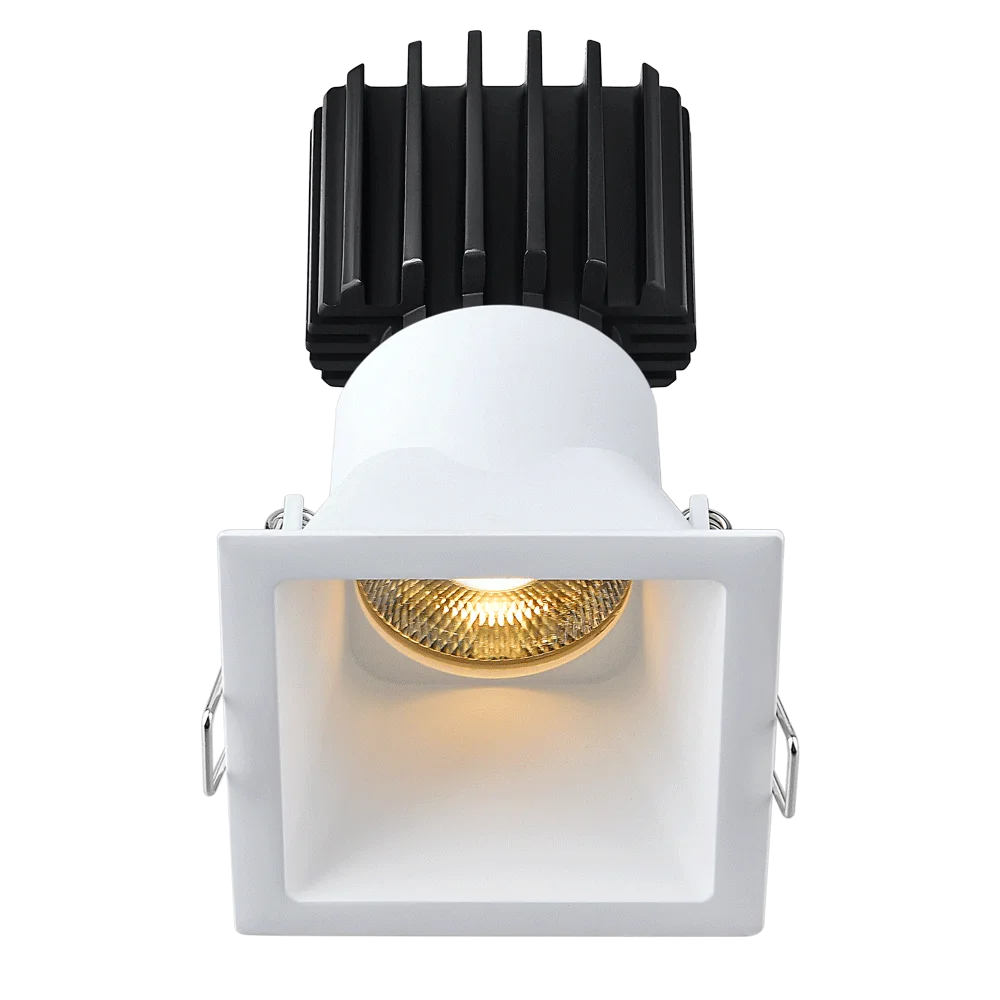

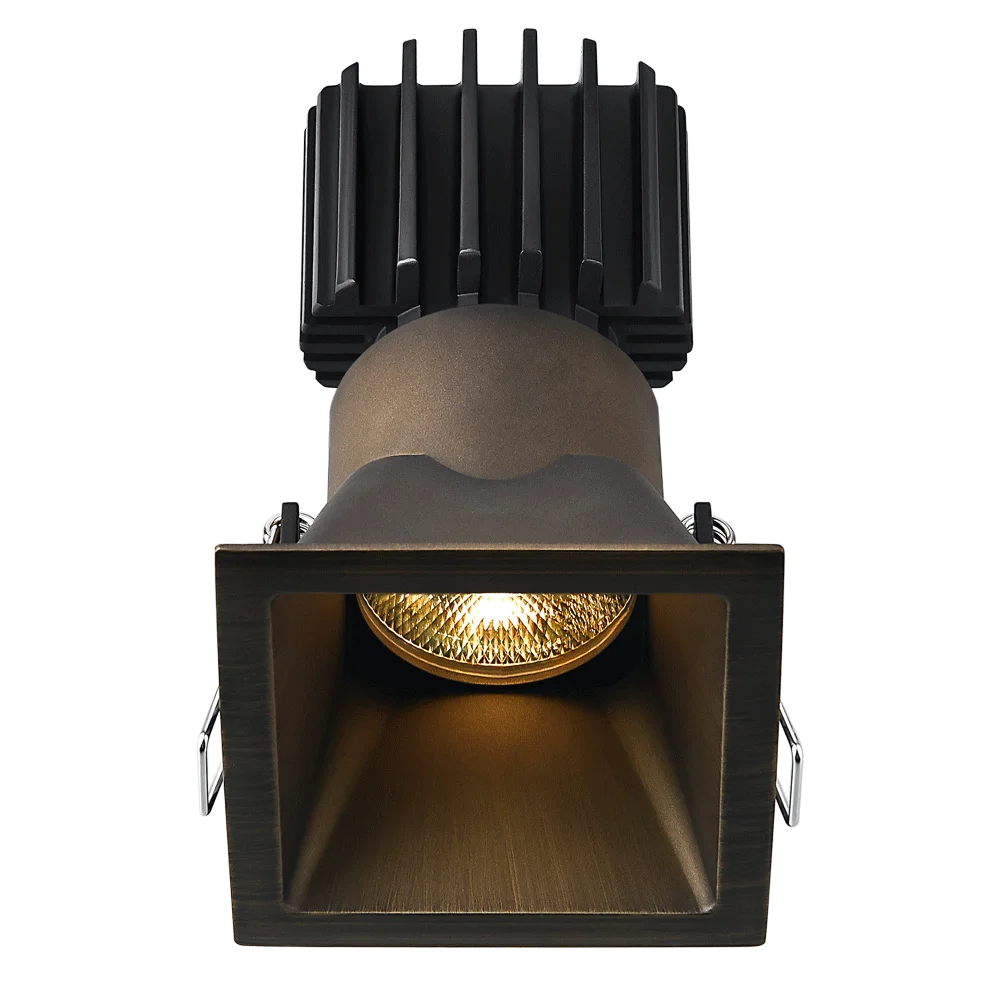

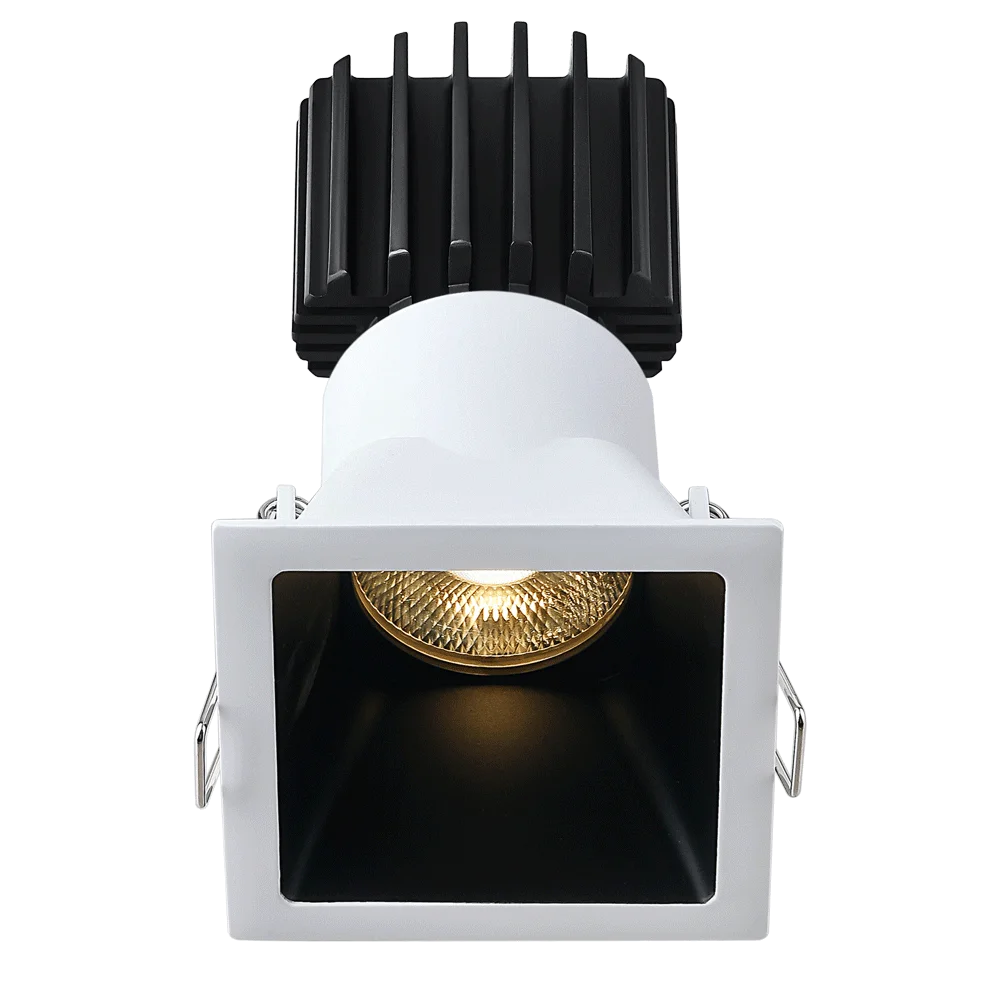

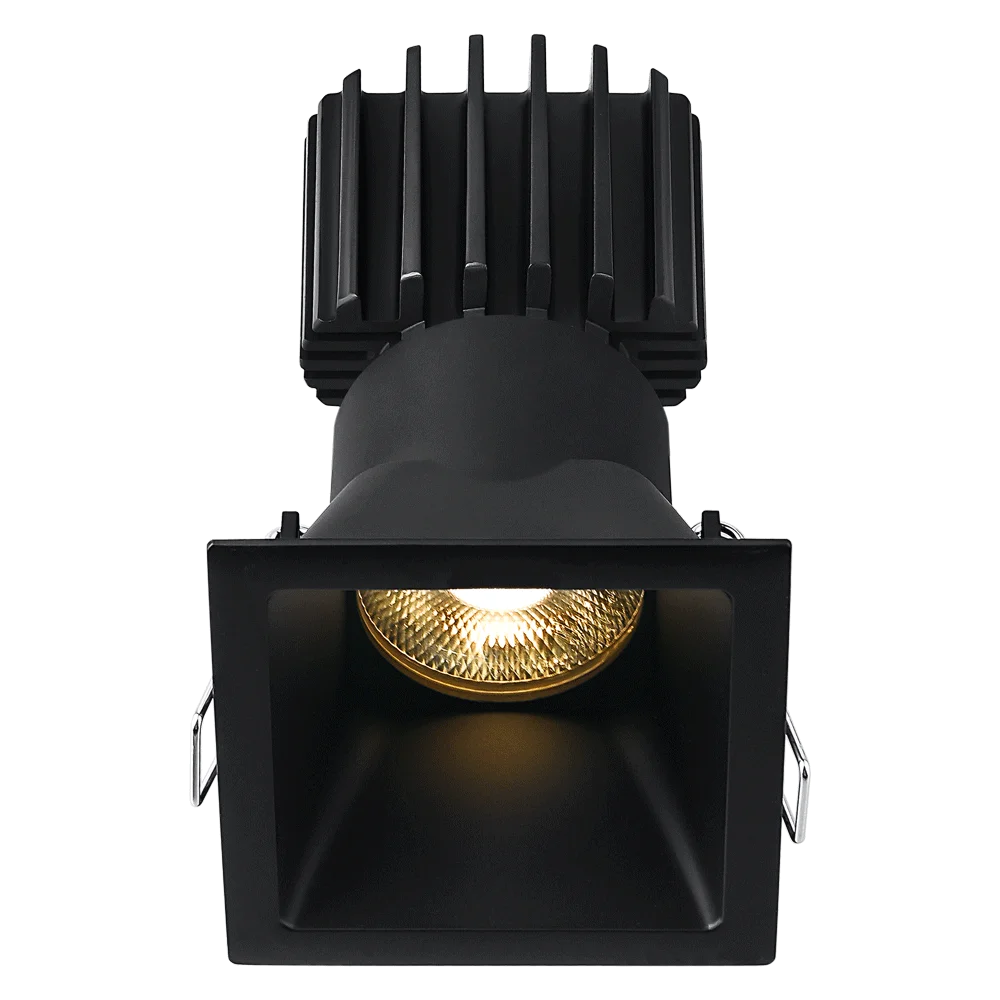

The Lotus Tangra L3F-SDT series is a premium 3″ fixed square deep regressed downlight engineered for low-glare architectural illumination. Built with a solid cast aluminum body and modular optics/driver options, it delivers flexible performance for both residential and commercial projects. This configuration features a white trim with 5CCT CRI98 LED output for high-fidelity color rendering.
Key Features and Benefits
- Deep regressed, near-trimless design helps reduce glare while maintaining a clean architectural look.
- Selectable 11W/15W operation supports output tuning up to 1600 lumens.
- High color quality with CRI98 and 5CCT field-selectable white light for versatile ambiance control.
- Wet-location and IP54 construction supports use in moisture-prone environments.
- Certified cETLus and FCC compliant for dependable code-ready installation.
- Long-term coverage with Lotus lifetime line support plus 5-year warranty.
Specifications
- Lumen Output: 1600
- Wattage: 11W|15W
- Voltage: 120V-347V (driver dependent)
- Color Temperature: 2700K|3000K|3500K|4000K|5000K
- CRI: 98
- Beam Angle: 20°|24°|36°|50°
- Optics options: Reflector clear glass (RC), semi-frosted (RS), frosted (RF), lens white (LW), lens black (LB)
- Dimming Type: 0-10V|Phase
- Fixture Input: 20-40V DC, max 350mA constant current
- Max Ambient Temperature: 45°C
- Rated Life (70 Hours): 50000
- Cutout: 2 5/8″ square
- Ceiling Clearance for Driver: 4″
Common Uses
Ideal for upscale residential interiors, hospitality spaces, retail displays, corridors, and general ambient lighting where low glare, high CRI, and compact 3″ recessed form factor are required.
