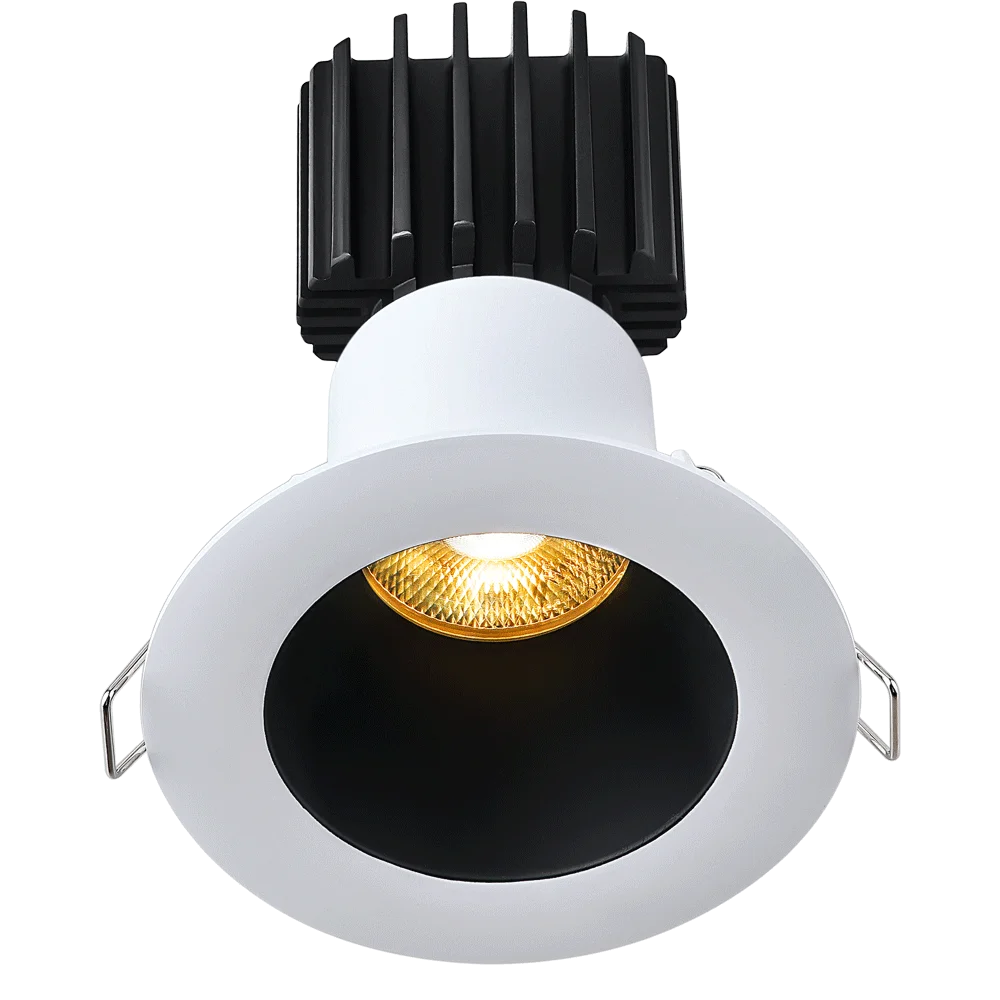

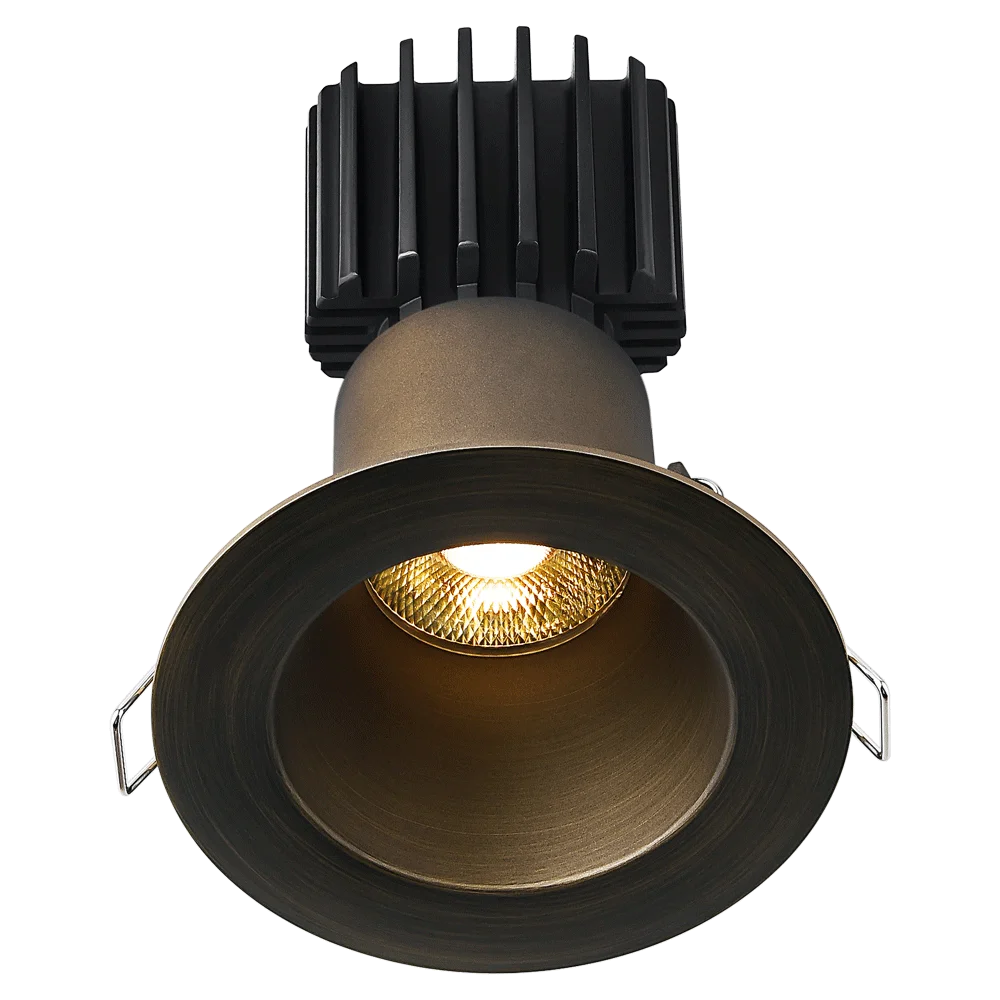

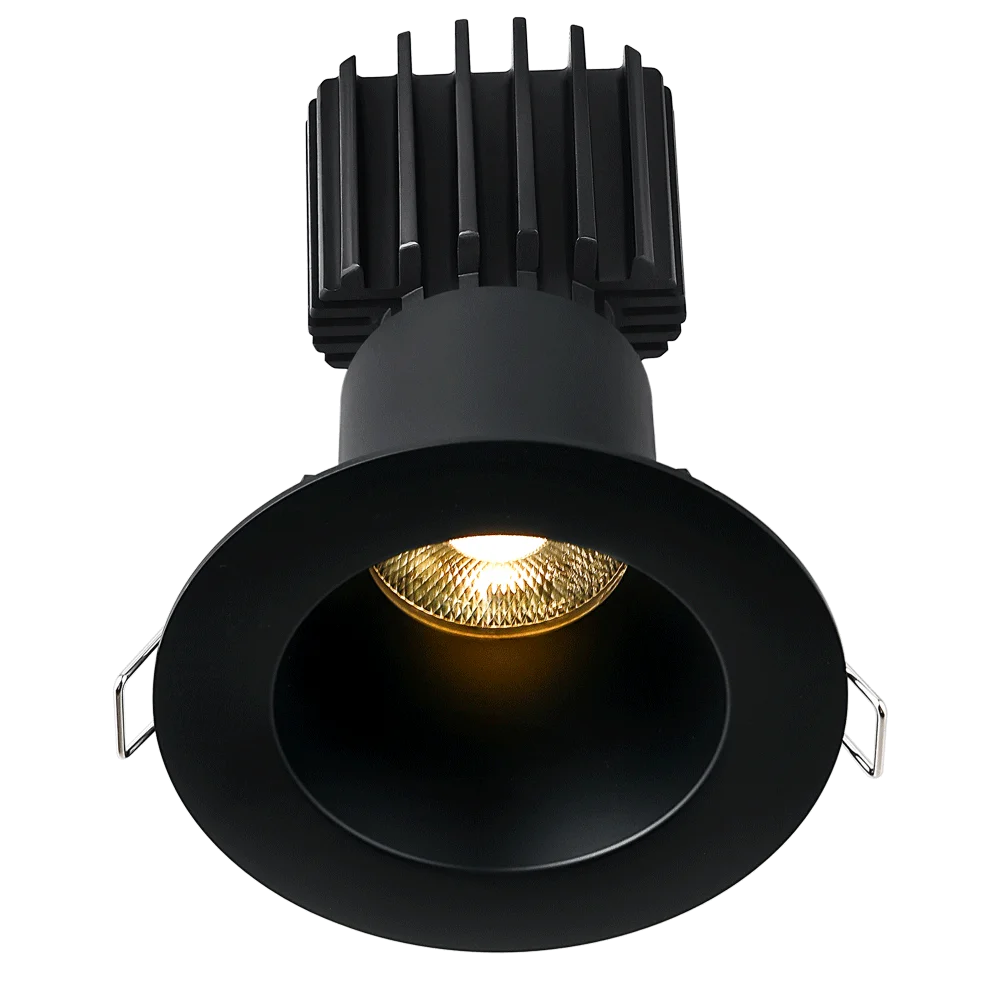

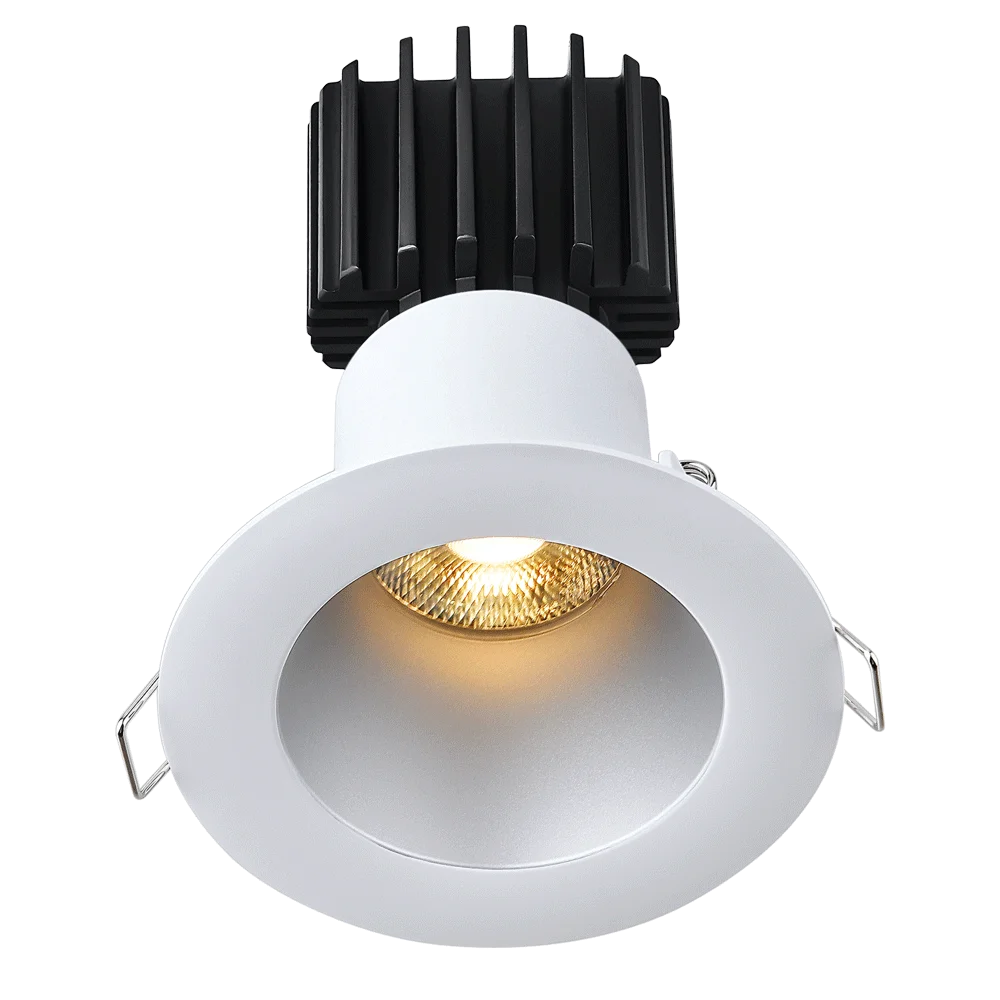

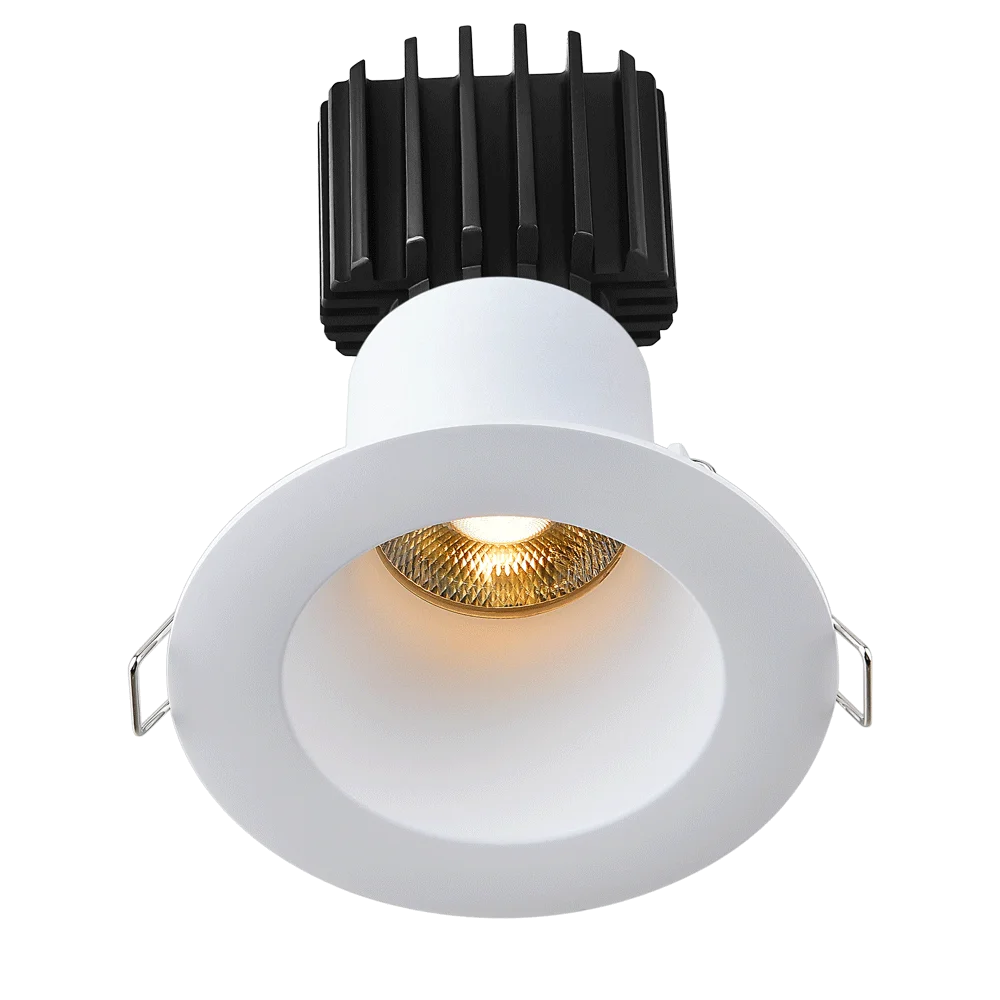

The Lotus Tangra L3F-RDW series is a premium 3″ fixed round deep-regressed downlight engineered for high-performance architectural lighting. Built with a solid cast aluminum body and advanced optics, it delivers low-glare illumination with flexible beam and CCT options. As part of Lotus’ modular Tangra lineup, it supports broad customization for residential and commercial projects.
Key Features and Benefits
- Deep-regressed optical design helps reduce glare for comfortable ambient and general lighting.
- Selectable 11W/15W operation allows output tuning up to 1600 lumens.
- Multiple beam spreads (20°, 24°, 36°, 50°) support accent or broader distribution needs.
- High color quality options including CRI95/CRI98 and Dim-to-Warm for hospitality-style ambiance.
- Certified for demanding installs with cETLus, FCC, Type IC, Air Tight, Open Plenum, and Wet Location IP54 compliance.
- Backed by Lotus lifetime line support plus 5-year warranty coverage.
Specifications
- Lumen Output: 1600
- Wattage: 11W|15W
- Optics options: Reflector clear glass (RC), semi-frosted (RS), frosted (RF), lens white (LW), lens black (LB)
- Voltage: 20-40V
- Color Temperature: 3000K-1800K
- CRI: 95
- Dimming Type: Phase|0-10V
- Beam Angle: 20°|24°|36°|50°
- Power Factor: 0.9
- Max Ambient Temperature: 113°F (45°C)
- Rated Life (70 Hours): 50000
- Output Current: 350mA
- IP Rating: IP54
- Primary Material: Cast aluminum
- Form Factor: Round
Common Uses
Ideal for residential and commercial interiors requiring refined recessed lighting, including living areas, corridors, hospitality spaces, retail zones, and covered wet-location applications where low glare and high color quality are important.
