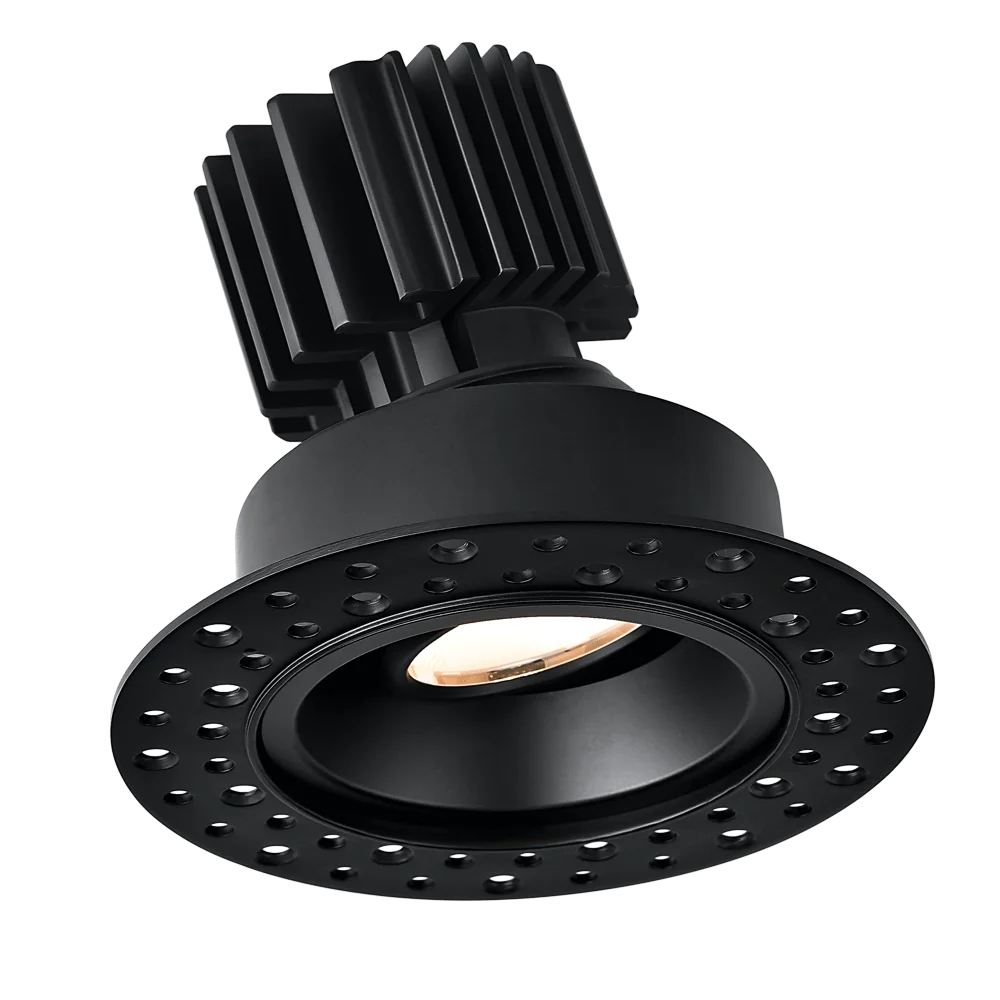

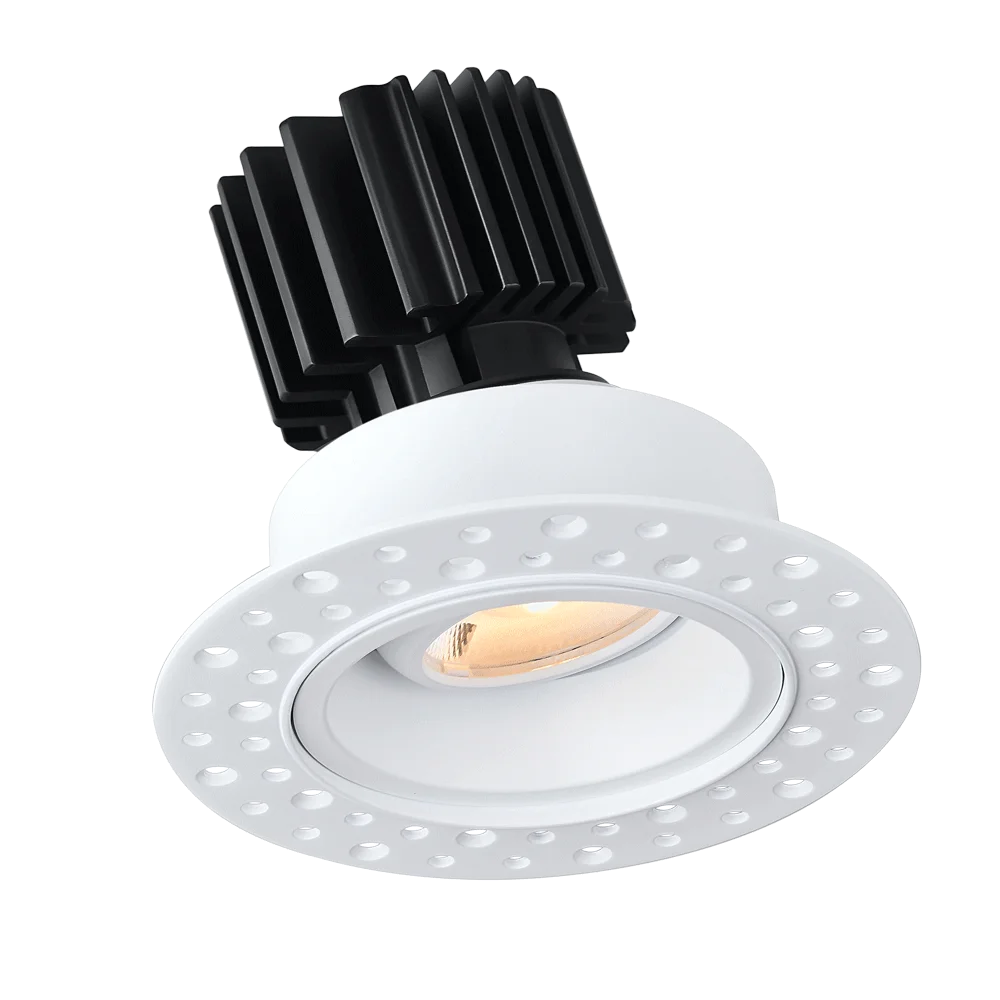

The Lotus LED Tangra L3G-RIT series is a premium 3″ gimbal round invisible trim fixture designed for high-end architectural recessed lighting. Built in Canada with a solid cast aluminum body and advanced optics, it delivers flexible aiming, high visual comfort, and excellent color quality for demanding interiors. Its modular platform and separate driver options make it a versatile choice across residential and commercial projects.
Key Features and Benefits
- Invisible trimless design creates a clean, modern ceiling appearance
- Adjustable optical engine with 20° tilt and 360° rotation for precise accent and task lighting
- Selectable 11W/15W operation supports performance tuning during installation
- Multiple beam spreads and CCT/CRI packages enable tailored lighting effects
- Certified for IC, wet location, and airtight plenum use for broader code-compliant applications
- Backed by Lotus long-term line support warranty (manufactured life + 5 years)
Specifications
- Lumen Output: up to 1600
- Wattage: 11W/15W
- Voltage: 120V|120-347V (driver dependent)
- CCT Range: 3500K-2700K (4CCT+DTW package)
- CRI: 90
- Optics options: Reflector clear glass (RC), semi-frosted (RS), frosted (RF), lens white (LW), lens black (LB)
- Beam Angle: 20°|24°|36°|50°|60°
- Input to Fixture: 20-40V DC, max 350mA constant current
- Rated Life (L70): 50000 hours
- Max Ambient Temperature: 113°F (45°C)
- IP Rating: IP54
Common Uses
Ideal for task lighting, sloped ceilings up to 20°, and trimless wall washing in residential, hospitality, retail, and commercial interiors where discreet aesthetics and precise beam control are required.
