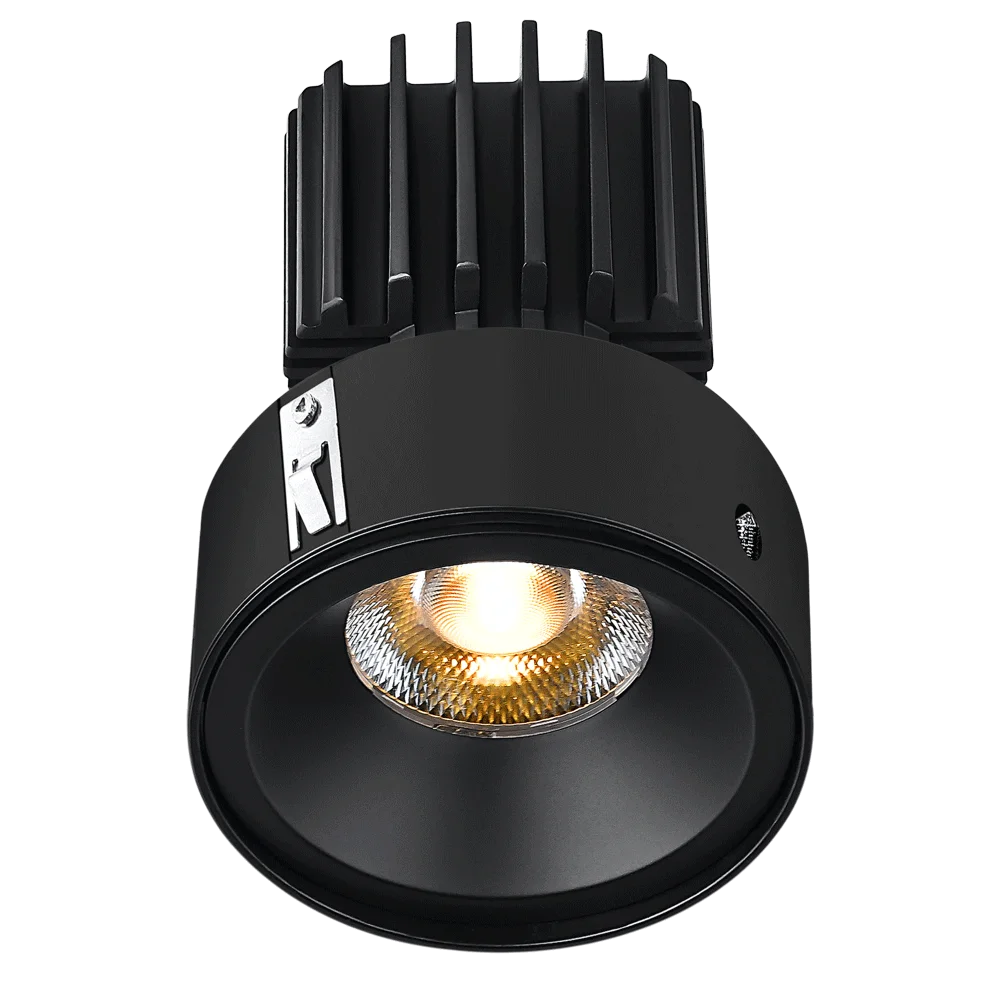

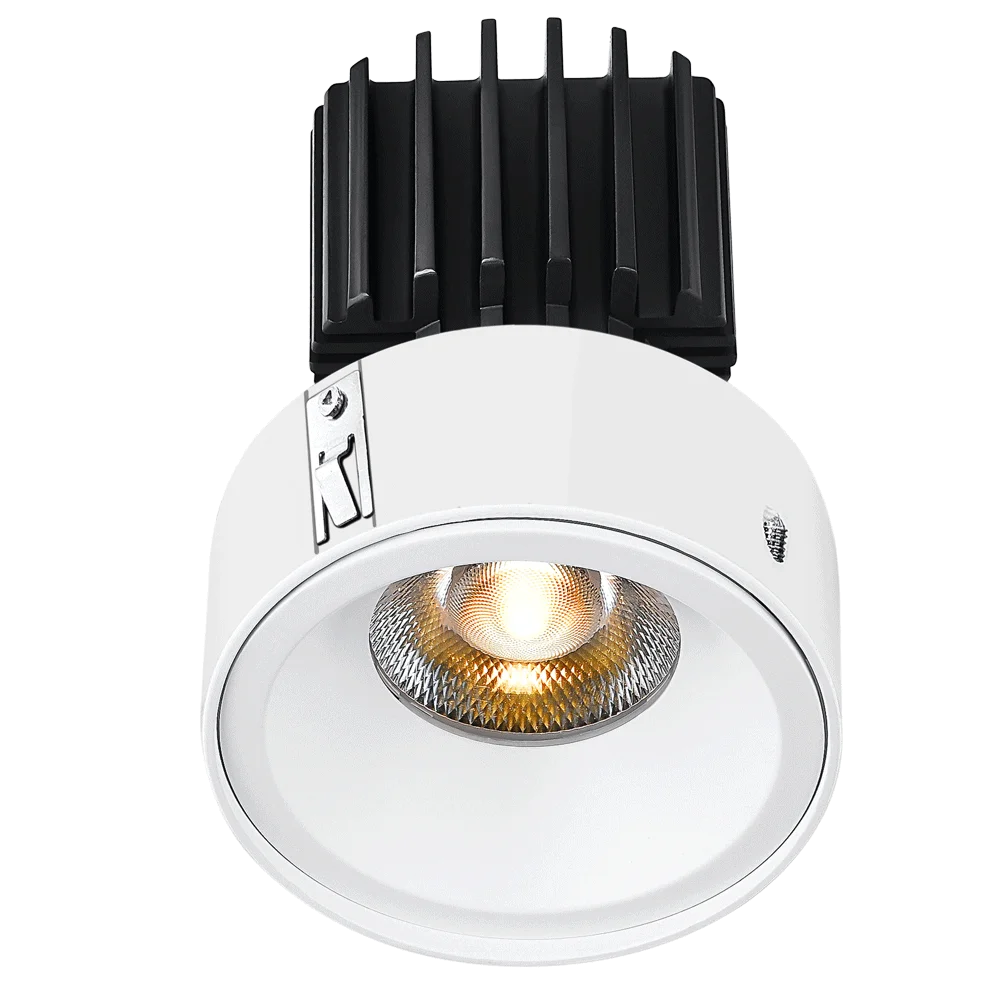

The Lotus LED Tangra L3F-RRF Series is a premium 3″ fixed round recessed invisible flangeless fixture designed for refined architectural spaces. Built in Canada with a solid cast aluminum body and advanced optics, it delivers high visual comfort and flexible lighting performance for residential and commercial projects.
Key Features and Benefits
- Modular platform supports multiple beam, trim, and LED package options for tailored lighting designs
- High-quality light output up to 1600 lumens with excellent color rendering for detailed interior finishes
- Reduced-glare optical design ideal for millwork and wood ceiling applications
- Supports both Triac and 0-10V dimming driver families for broad control compatibility
- Certified cETLus, FCC, Type IC, Air Tight, Open Plenum, and Wet Location IP54 for code-friendly installation
- Backed by Lotus lifetime line support plus 5-year warranty coverage
Specifications
- Lumen Output: up to 1600
- Wattage: 11W/15W selectable
- Voltage: 120V (Triac driver) or 120-347V (0-10V driver)
- CCT Range: 3500K-2700K (4CCT + DTW option)
- CRI: 90
- Beam Angle: 20°|24°|36°|50°|60°
- Fixture Input: 20-40V DC, max 350mA constant current
- Rated Life (L70): 50000 hours
- Max Ambient Temperature: 113°F (45°C)
- Cutout: 3 1/4″
Common Uses
Ideal for upscale residential and commercial interiors, including millwork details, wood ceilings, hospitality spaces, corridors, and other applications requiring compact recessed lighting with low glare and flexible dimming.
