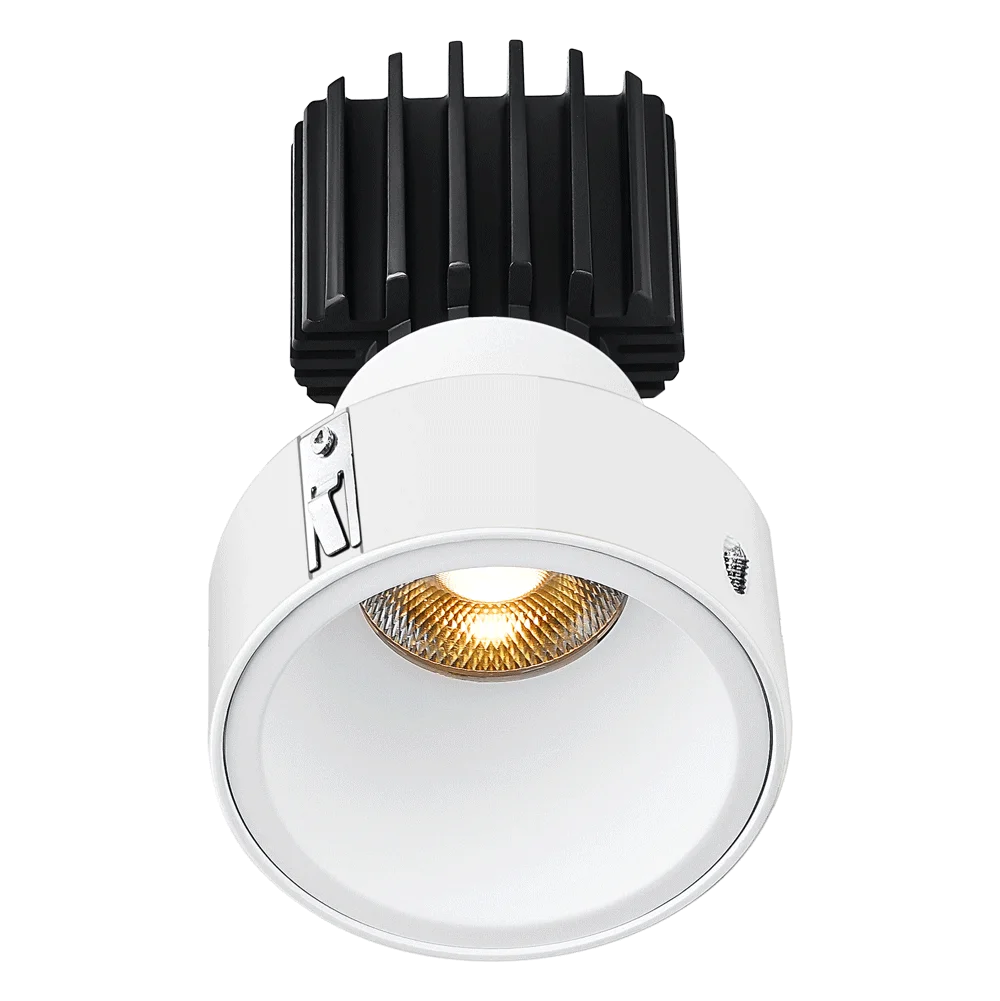

The Lotus LED Tangra L3F-RDF series is a premium 3″ fixed round deep invisible flangeless recessed fixture designed for architectural spaces that demand low glare and refined aesthetics. Built with a solid cast aluminum body and advanced optics, it delivers high visual comfort and excellent color quality for residential and commercial applications.
Key Features and Benefits
- Deep regressed, minimal-glare design ideal for millwork and wood ceiling installations.
- Selectable 11W/15W operation with up to 1600 lumens for flexible light levels.
- Multiple beam spreads (20°, 24°, 36°, 50°) and optic choices to match accent or general lighting needs.
- High color quality options up to CRI98, including 5CCT and Dim-to-Warm configurations.
- Certified cETLus, FCC, Type IC, Air Tight, Open Plenum, and Wet Location IP54 for broad code compliance.
- Backed by Lotus lifetime line support plus 5-year warranty coverage.
Specifications
- Lumen Output: 1600
- Wattage: 11W|15W
- Voltage: 120V|120-347V
- Dimming Type: Phase|0-10V
- Color Temperature: 3000K
- CRI: 98
- Beam Angle: 20°|24°|36°|50°
- Input (Fixture): 20-40V DC, Max 350mA constant current
- Max Ambient Temperature: -40°F to +113°F (-40°C to +45°C)
- Rated Life (L70): 50000 hours
- Cutout: 3 1/4″
- Driver clearance above ceiling: 4″
Common Uses
Ideal for high-end residential interiors, hospitality spaces, retail displays, and commercial architectural projects where precise beam control, low glare, and premium color rendering are essential.
