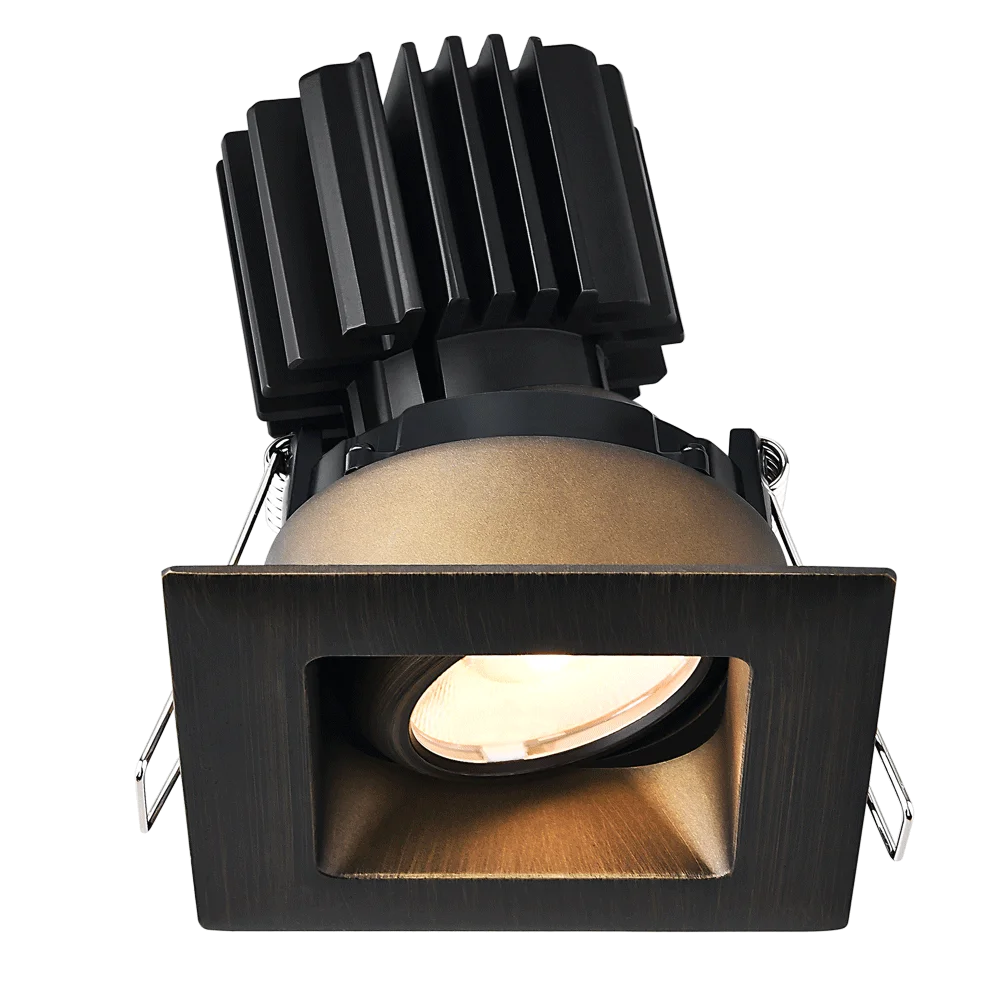

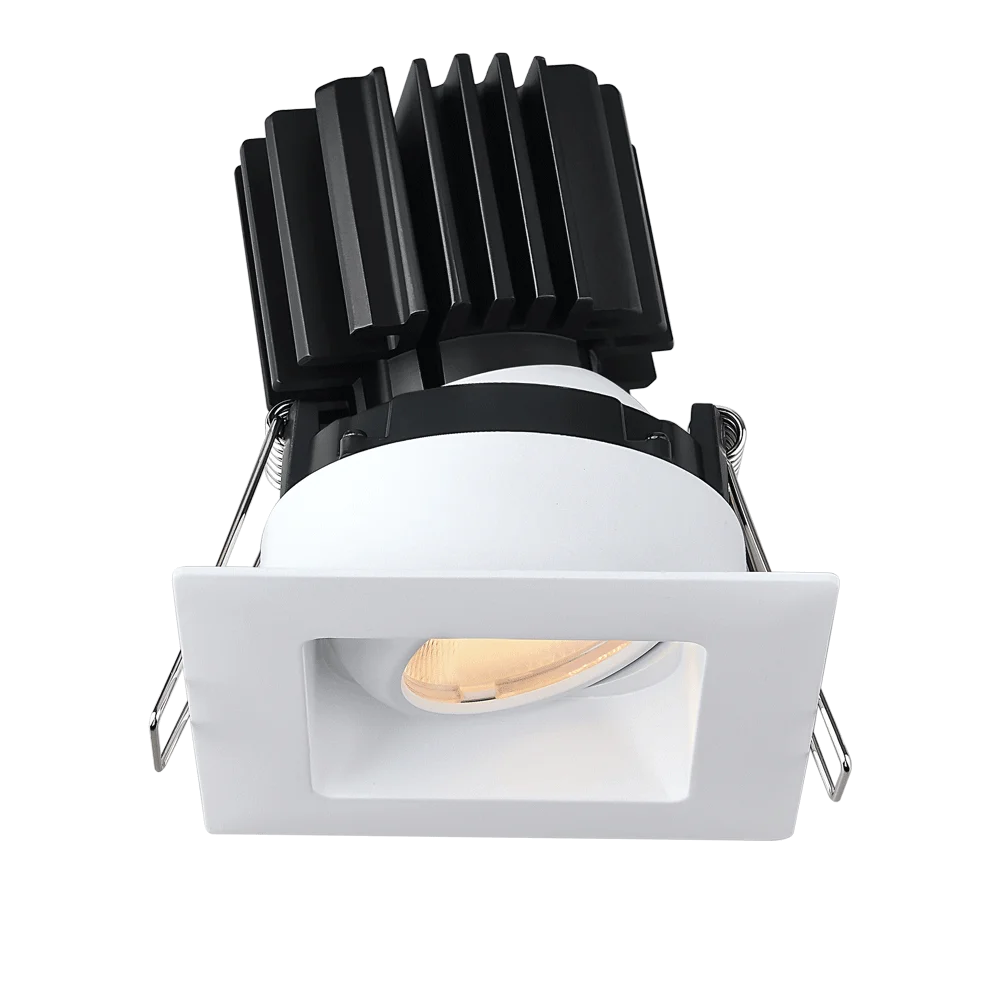

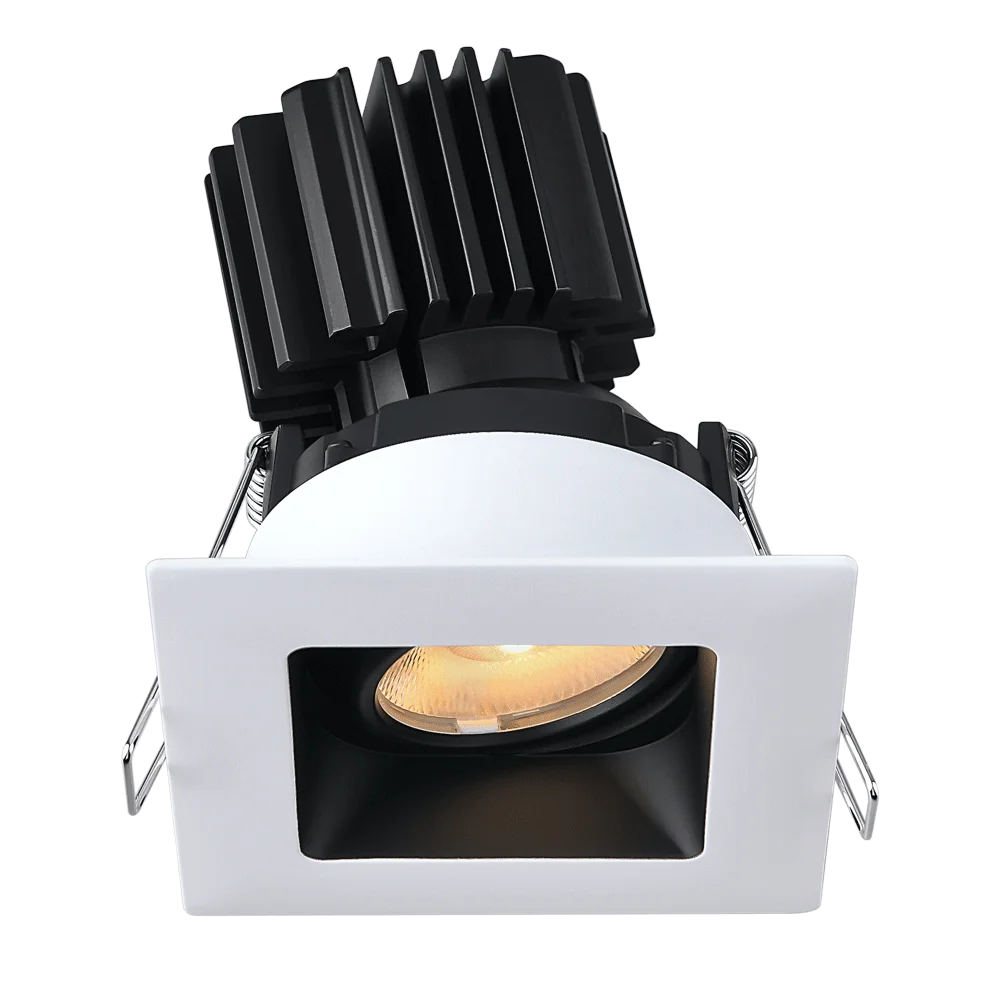

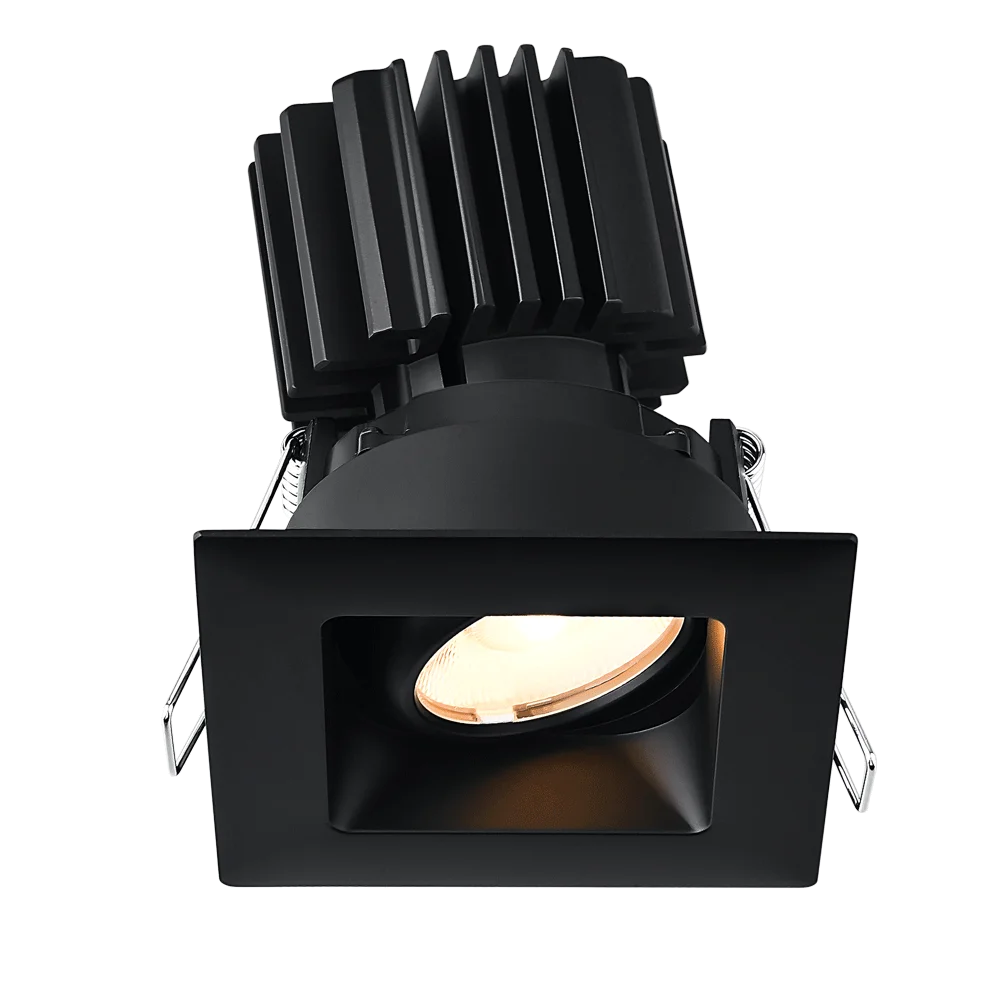

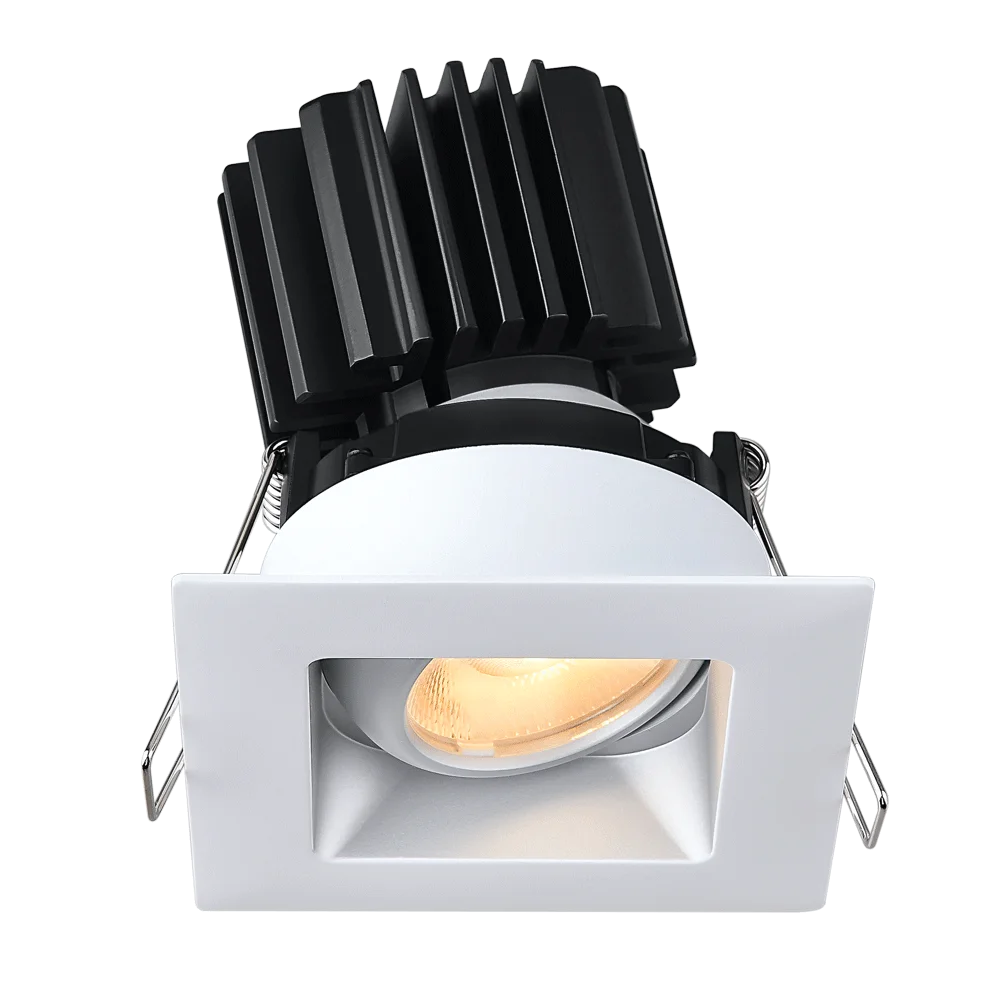

The Lotus LED Lights Tangra L3G-SRW is a premium 3″ gimbal square recessed fixture engineered for high-performance architectural lighting. Built with a solid cast aluminum body and advanced optics, this modular series delivers excellent visual comfort and flexible beam control for demanding residential and commercial spaces.
Key Features and Benefits
- High-output performance with up to 1600 lumens and selectable 11W/15W operation for adaptable light levels
- Precision aiming with 20° tilt and full 360° rotation for task lighting, wall washing, and sloped ceiling applications
- Ultra-high color quality options up to CRI98, including static CCT, 5CCT, and Dim-to-Warm configurations
- Built for challenging environments with Type IC, air-tight construction, open plenum suitability, and wet location IP54 rating
- Certified for safety and compliance with cETLus and FCC listings
- Long-term confidence backed by Lotus lifetime line support plus 5-year warranty coverage
Specifications
- Lumen Output: up to 1600
- Wattage: 11W|15W
- Voltage: 120V|120-347V
- Color Temperature: 3000K
- CRI: 95
- Beam Angle: 20°|24°|36°|50°|60°
- Dimming Type: 0-10V|Phase
- Frequency (Hz): 60
- Output Current: 350mA
- Output Voltage Range: 20-40V DC
- Max Ambient Temperature: 113°F (45°C)
- Rated Life (70 Hours): 50000
- IP Rating: IP54
- Primary Material: Cast aluminum
- Form Factor: Square
- Cutout: 3 1/4″
Common Uses
Ideal for upscale residential and commercial interiors, including kitchens, corridors, retail spaces, hospitality settings, and accent lighting zones requiring directional control. Especially effective for sloped ceilings up to 20°, focused task lighting, and wall-wash applications.
