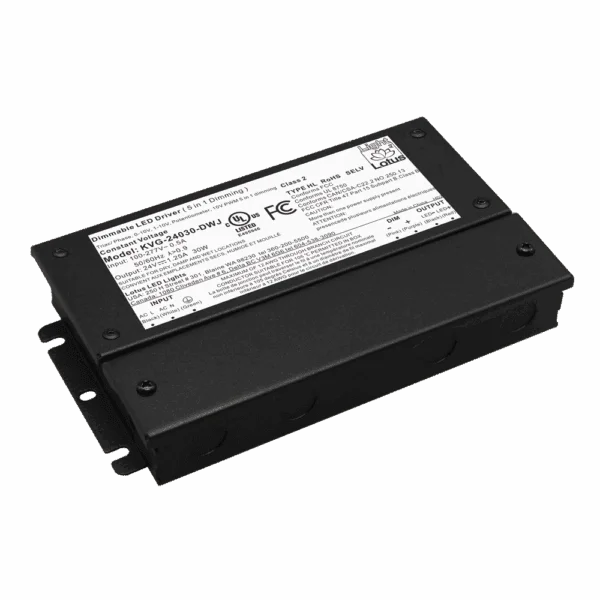

The Lotus LED Lights KVG-24030-DWJ is a compact 24V constant voltage LED driver designed for dependable performance across commercial and architectural lighting projects. As part of Lotus’ dimmable driver lineup, it delivers broad dimmer compatibility and stable output for LED tape and 24V fixture applications.
Key Features and Benefits
- 5-in-1 dimming support enables flexible control with TRIAC/ELV/MLV, 0-10V, 1-10V, potentiometer, and 10V PWM systems.
- High power factor design with active PFC helps improve electrical efficiency and system performance.
- Integrated wiring compartments with multiple knockouts simplify installation and field wiring.
- Built-in protection package guards against short circuit, over-voltage, over-heat, and over-load conditions.
- Certified for safety and compliance with cULus listing, FCC Class B, Class 2, and Type HL ratings.
- Backed by a 5-year warranty for long-term project confidence.
Specifications
- Wattage: 30W
- Input Voltage: 120-277V AC
- Output: 24V DC / 1.25A
- Minimum / Maximum Load: 3W / 30W
- Power Factor: 0.98
- PWM Frequency: 20KHz
- Ambient Temperature: -40b0C to +60b0C
- Wiring Volume: 5 cu in per chamber
- Net Weight: 2 lbs (0.93 kg)
Common Uses
Commonly used for LED tape lighting, 24V ceiling fixtures, and other low-voltage LED systems in residential, commercial, and light industrial environments where reliable dimming and wide input voltage are required.
